Product Description

The FuseBox TPNI100 100A TP&N Metal Isolator Switch Disconnector delivers safe and dependable isolation for three-phase electrical supplies, making it ideal for commercial and industrial environments where secure power disconnection is required.

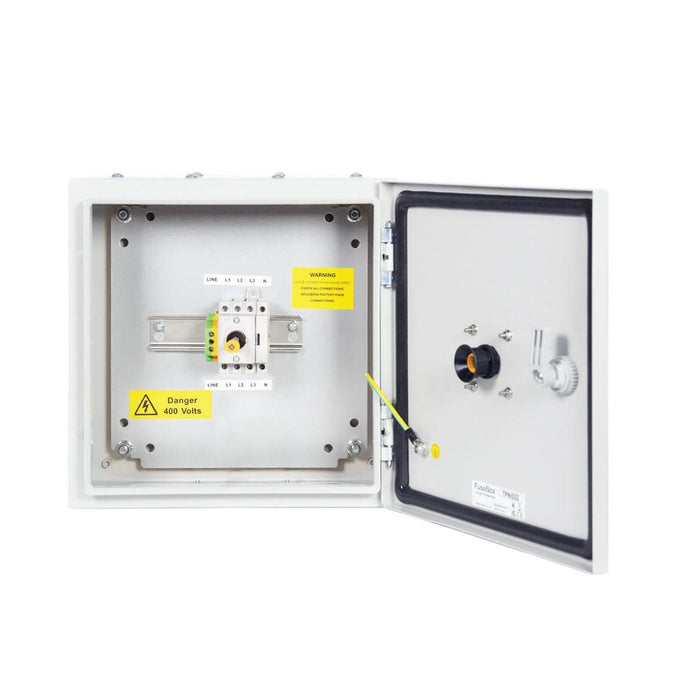

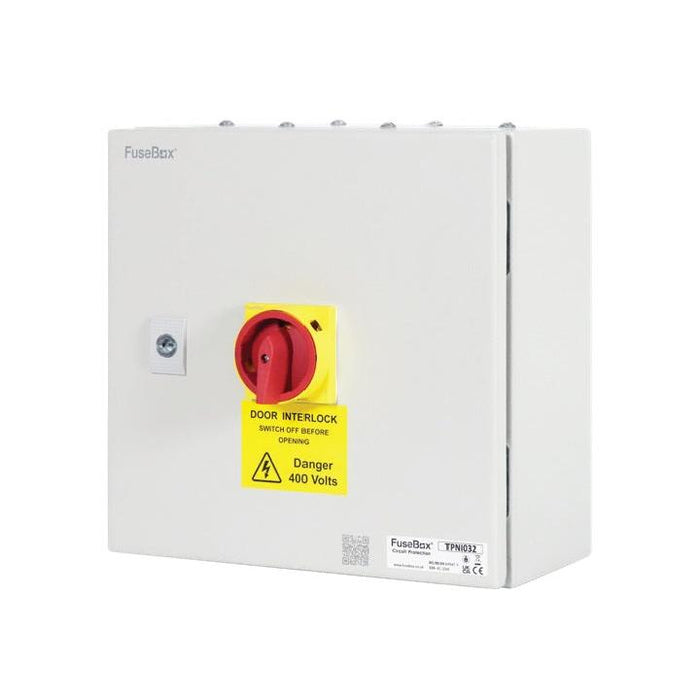

Rated at 100A (AC-23A), this 3 pole and neutral isolator is housed in a robust IP65-rated 1.2mm steel enclosure with a durable RAL 7035 powder-coated finish. A highly visible red and yellow rotary handle provides clear ON/OFF indication, while the mechanically interlocked door prevents access when the switch is in the ON position.

For enhanced safety during servicing, the handle can be padlocked in the OFF position using up to three padlocks. Removable gland plates at the top and bottom, along with a spacious internal wiring area, ensure fast, tidy and frustration-free installation.

Fully compatible with FuseBox main switches and TP&N consumer units.

Key Features & Benefits

• 100A AC-23A rated TP&N isolator switch for commercial and industrial installations
• IP65-rated enclosure suitable for harsh and demanding environments
• Heavy-duty 1.2mm steel construction with RAL 7035 powder-coated finish
• Red/yellow rotary handle with clear ON/OFF status indication
• Mechanically interlocked door prevents access when switched ON
• Padlockable handle in OFF position (supports up to 3 padlocks)
• Removable gland plates at top and bottom for flexible cable entry
• Spacious internal layout for fast, tidy cable termination
• Operating temperature range: -25°C to +55°C

Additional Information

FuseBox TP&N Distribution Boards Brochure:
View the FuseBox TP&N Distribution Boards Brochure
