Product Description

The FuseBox TPNI063 63A TP&N Metal Isolator Switch Disconnector offers a safe and effective solution for isolating three-phase power supplies in commercial and industrial electrical installations.

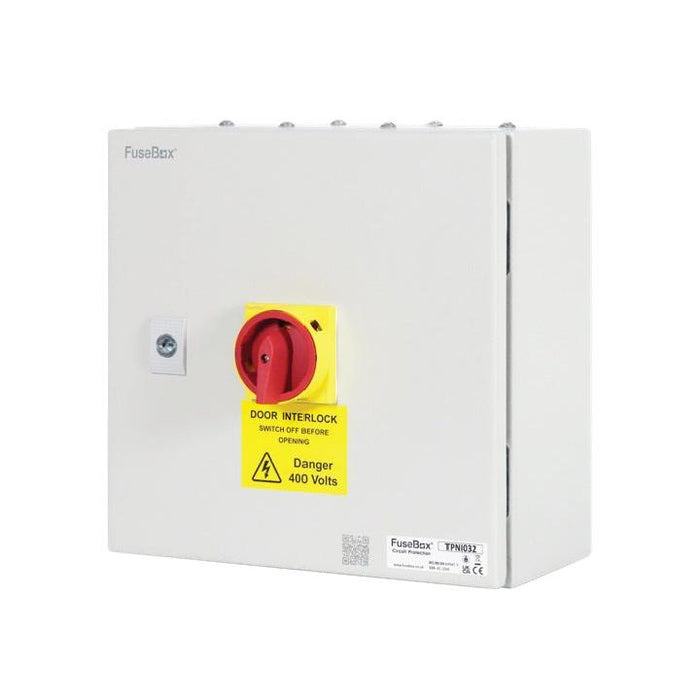

Rated at 63A (AC-23A), this 3 pole and neutral isolator is housed in a robust IP65-rated 1.2mm steel enclosure with a durable RAL 7035 powder-coated finish. A highly visible red and yellow rotary handle provides clear ON/OFF status, while the mechanically interlocked door prevents access when the switch is in the ON position.

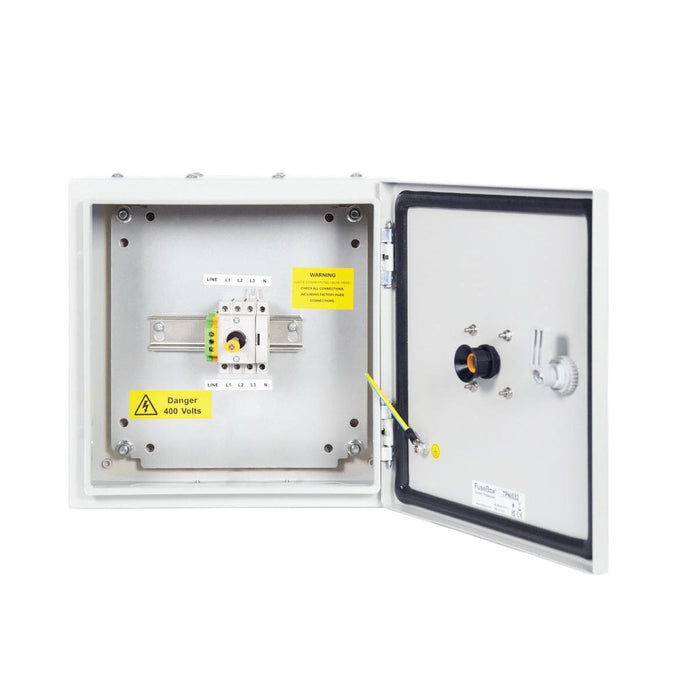

For secure lock-off during maintenance, the handle can be padlocked in the OFF position using up to three padlocks. Removable gland plates at the top and bottom, combined with a spacious internal wiring area, make installation and cable termination fast and straightforward.

Fully compatible with FuseBox main switches and TP&N consumer units.

Key Features & Benefits

• 63A AC-23A rated TP&N isolator switch for commercial and industrial applications
• IP65-rated enclosure for use in harsh and demanding environments
• Heavy-duty 1.2mm steel construction with RAL 7035 powder-coated finish
• Red/yellow rotary handle with clear ON/OFF indication
• Mechanically interlocked door prevents access when switched ON
• Padlockable handle in OFF position (supports up to 3 padlocks)
• Removable gland plates at top and bottom for flexible cable entry
• Spacious internal layout for fast, tidy cable termination
• Operating temperature range: -25°C to +55°C

Additional Information

FuseBox TP&N Distribution Boards Brochure:
View the FuseBox TP&N Distribution Boards Brochure
