Product Description

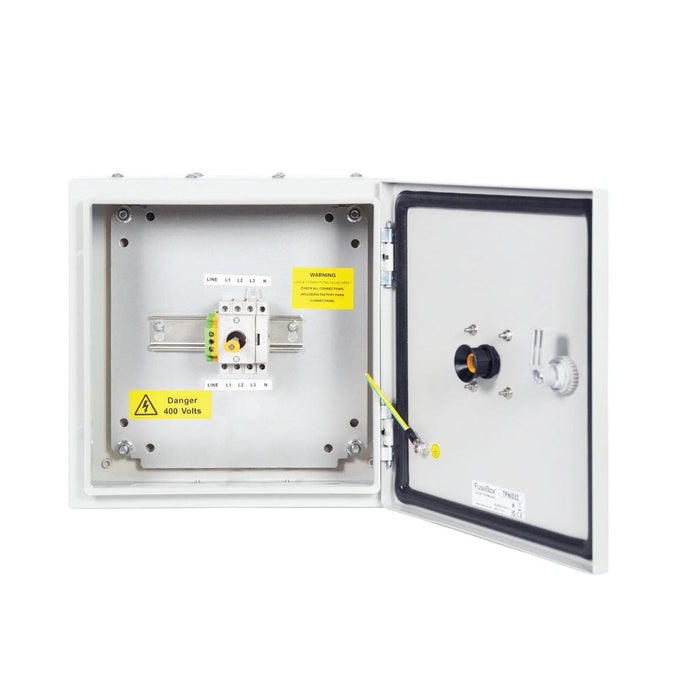

The FuseBox TPNI032 32A TP&N Metal Isolator Switch Disconnector provides a safe, reliable method of isolating power to three-phase circuits, making it ideal for commercial and industrial installations requiring secure disconnection and clear lock-off procedures.

Rated at 32A (AC-23A), this 3 pole and neutral isolator is housed in a robust IP65-rated 1.2mm steel enclosure with a hard-wearing RAL 7035 powder-coated finish. The unit features a highly visible red/yellow rotary handle for positive ON/OFF indication, and a mechanically interlocked door that prevents access when the switch is in the ON position.

For added safety during maintenance, the handle can be padlocked in the OFF position using up to three padlocks. With a spacious internal layout and removable gland plates at the top and bottom, installation and cable termination are quick, neat and installer-friendly.

Compatible with FuseBox main switches and TP&N consumer units.

Key Features & Benefits

• 32A AC-23A rated TP&N isolator switch disconnector for commercial and industrial use
• IP65-rated enclosure suitable for demanding environments
• Heavy-duty 1.2mm steel construction with RAL 7035 powder-coated finish
• Red/yellow rotary handle with clear ON/OFF status indication
• Mechanically interlocked door prevents access when switched ON
• Padlockable handle in OFF position (supports up to 3 padlocks)
• Removable gland plates at top and bottom for flexible cable entry
• Spacious internal wiring area for fast, tidy cable termination
• Operating temperature range: -25°C to +55°C

Additional Information

FuseBox TP&N Distribution Boards Brochure:
View the FuseBox TP&N Distribution Boards Brochure
