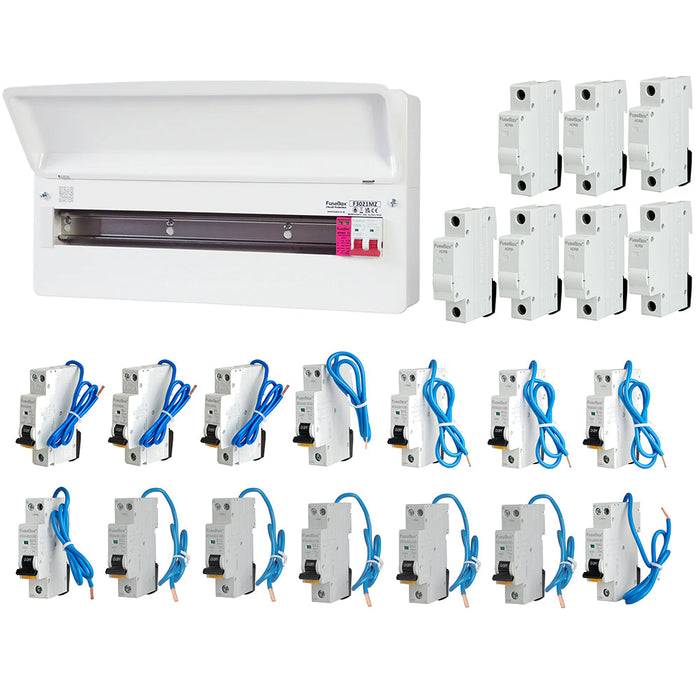

FuseBox F3021MZ 21 Way T2 SPD Consumer Unit + 14 Type A Bi-Directional Mini RCBOs & 7x FREE DIN Rail Blanks

The NEW Fusebox F3021MZ 21 usable way Consumer Unit with SPD is a fantastic cost effective and quality solution for any suitable application.

This comes with 14 Bi-Directional Mini RCBOs Type A B Curve:

• 3x 6A
• 1x 10A
• 3x 16A
• 1x 20A
• 5x 32A
• 1x 40A
• 7x DIN Rail Blank Module

Dimensions (HxWxD)mm for F3021MZ: 259 x 486 x 113mm

Circuit Protection

Design Features

• Single Module Direct to Busbar T2 Surge Protection Device (SPD)
• No MCB required for SPD
• Earth and neutral terminal bars on top of consumer unit
• Removable and raised DIN rail
• Round knock-outs on all faces (20mm & 32mm top and bottom, 40m on sides)
• Extra height for RCBOs (standard and mini RCBOs available on our store)
• 1mm electro-galvanised steel (zinc)
• Busbar shroud
• RAL 9001 powder-coated arctic white finish to give a stylish look
• Tail clamp included (ACCF)
• Circuit identification labels (Full label pack)
• Upgraded reinforced grommet strip included
• Captive screws on front cover as standard for ease of installation
• IP20XC Rated
• BS EN61439-3 compliant
• Plus, all the trusted FuseBox board features you rely on!

Data Sheet:

FuseBox Brochure:
