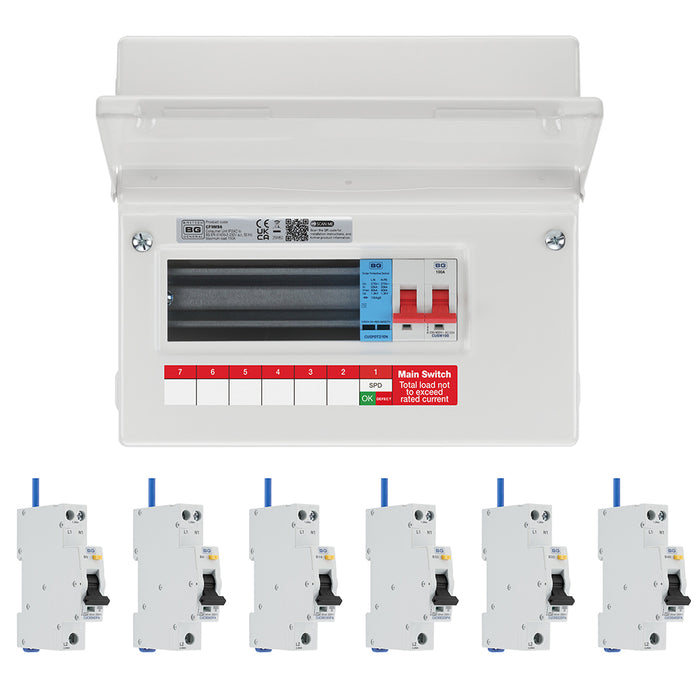

BG Fortress CF9MS6 9 Module 6 Way 100A Main Switch Consumer Unit with T2 SPD + 6 Bi-Directional DP RCBOs

9 Module 6 Way 100A Main Switch Consumer Unit with Type 2 SPD.

This comes with 6 Bidirectional RCBOs Double Pole, Single Module, B Curve, 6kA, 30mA, Type A

• 2x 6A
• 1x 16A
• 2x 32A
• 1x 40A

Dimensions (HxWxD)mm for CF9MS6: 262 x 231 x 116mm

BG Fortress Circuit Protection

This range of consumer units offer a flexible solution for the 18th Edition Wiring Regulations BS7671.
Available in a number of sizes from 6 - 19 useable ways and supplied with 100A main switch and type 2 SPD.
MCB, RCBO, AFDD, and Control Devices can be fitted into the Consumer Unit depending on the circuit requirements.
A large range of consumer unit accessories are available, please visit the our website for more information.

Description:

This BG 9-module consumer unit provides a compact and future-ready solution for smaller installations requiring surge protection, offering 6 usable ways within a space?efficient enclosure. Supplied unpopulated with a 100A main switch isolator and an integrated Type 2 surge protection device, it allows installers to configure tailored circuit protection while adding defence against transient over-voltages, supporting straightforward installation, organised internal wiring and a neat, professional finished appearance.

Data Sheet:

Data Sheet for CF9MS6
Data Sheet for Bi-Directional DP RCBO Type A 6kA
