BG CFUDP16613 BG 19 Module 13 Way Populated + 100A Switch, 2x63A 30mA RCD & 10xMCBs

SKU CFUDP16613
Availability:
SOLD OUT
Sold out
Original price £81.99 - Original price £81.99
Original price
£81.99
Inc VAT
£68.33
Exc VAT
£81.99 - £81.99
Current price £68.33
£68.33 - £68.33
Current price £68.33
Request a quote
Read More...

Delivery in 7-10 Working days

BG 19 Module 13 Way Populated + 100A Switch, 2x63A 30mA RCD & 10xMCBs

Features of the Consumer Units range
  • Lockable cover option available
  • Easy access of cables via knockouts, in sides top and bottom, plus additional rear entry knockouts
  • Spirit level, to enable quick installation
  • Backed-out and retained terminal screws, prevents loss of screws, and saves on installation time
Dual RCD Consumer Units - Populated
Allows the installer to split the consumers power needs across two 30mA RCD’s, for example lighting and sockets circuits.

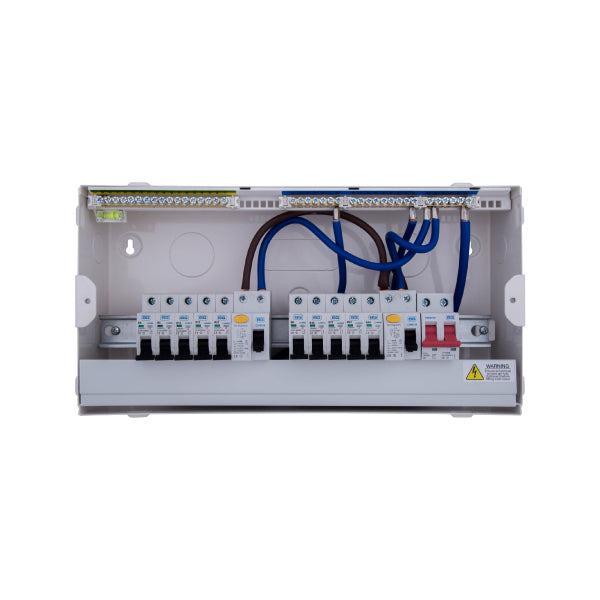

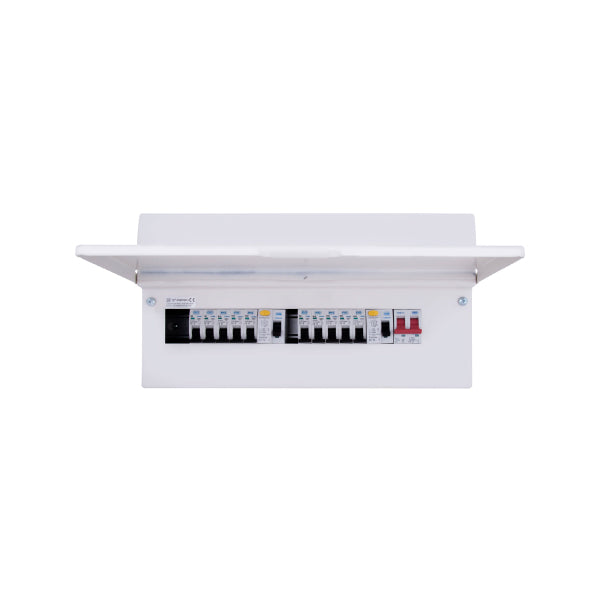

This item is 13 Way with 100A Switch, 2 x 63A 30mA RCD, 10x MCB's

Features

  • Dual RCD Consumer Unit
  • Populated
  • Qty of MCBs: 10
  • B Curve MCBs Included: 6Ax3, 16Ax2, 32Ax4, 40A
  • All metal unit, manufactured from stainless steel
  • Metal units supplied with Ø20mm and Ø32mm knockouts
  • Supplied complete with MCBs fitted
  • Dual RCD units supplied with optional High Integrity as standard
  • Each consumer unit supplied with spare cover blanks
  • Terminal and busbar design provide maximum flexibility for combination of protected or unprotected circuits
  • Lockable covers also available
  • Integrated spirit level
  • Bottom hinged visor
  • White gloss finish

Circuit Protection Range Leaflet:

Click Here for Circuit Protection Range Leaflet
