BG CFUD8614SPD 22 Module 14 Way Unpopulated + 100A Switch, 1x80A, 1x63A Type AC RCD & 1xSPD

SKU CFUD8614SPD
Availability:
IN STOCK
Original price £113.95 - Original price £113.95
Original price
£113.95
Inc VAT
£94.96
Exc VAT
£113.95 - £113.95
Current price £94.96
£94.96 - £94.96
Current price £94.96
Request a quote
Read More...

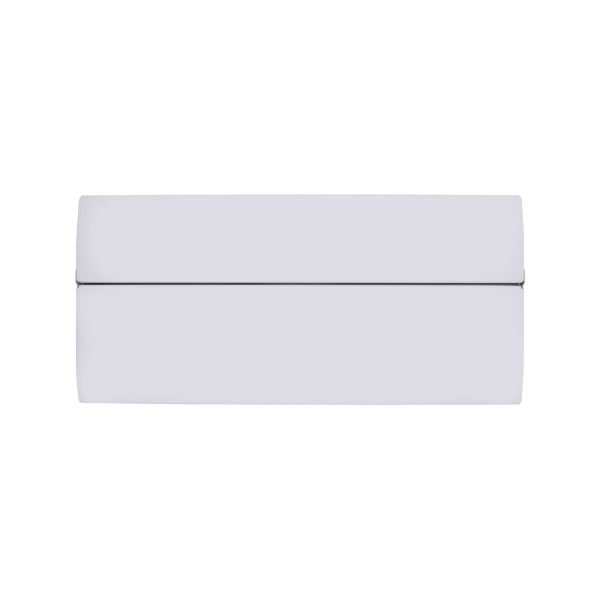

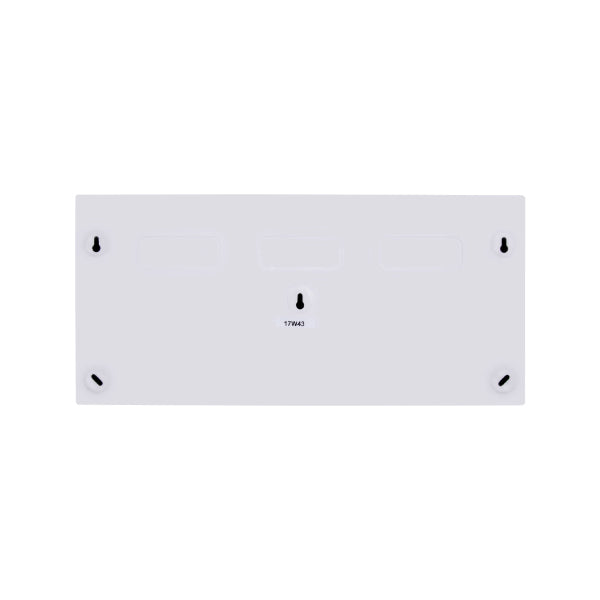

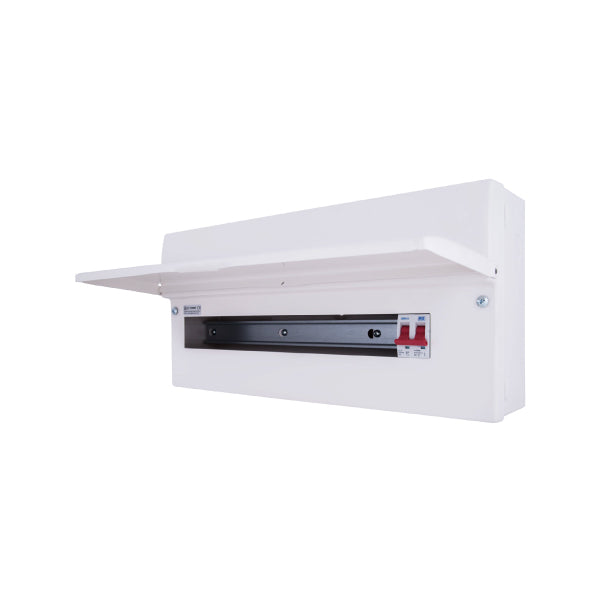

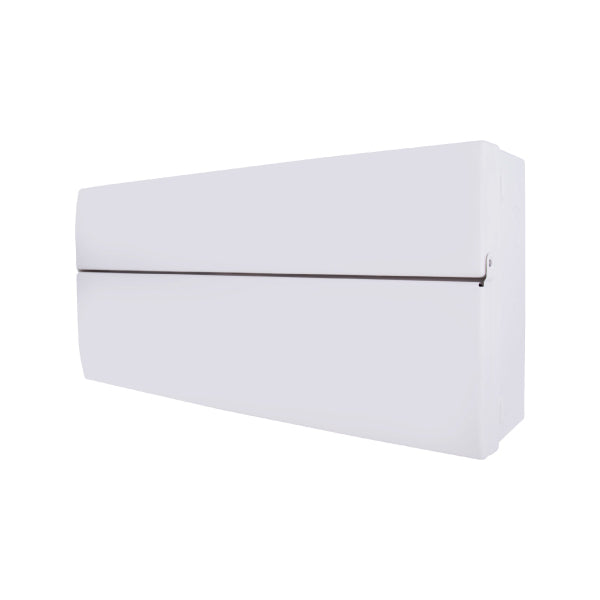

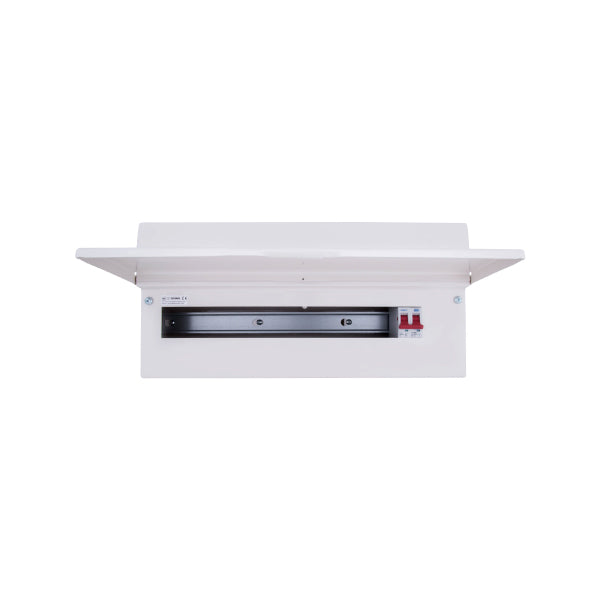

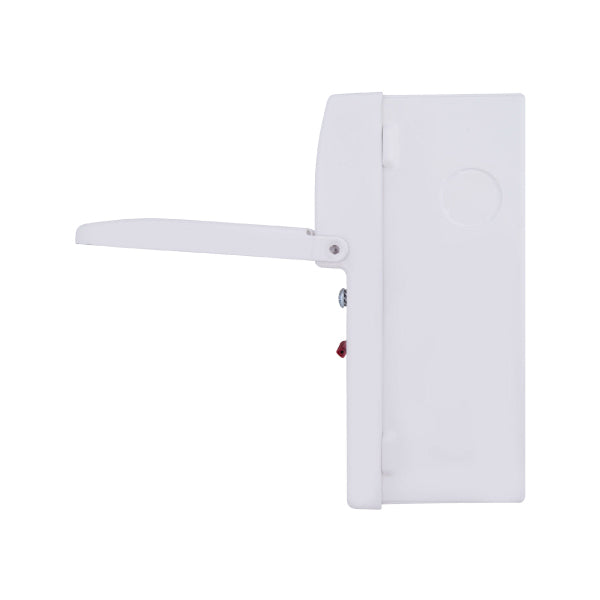

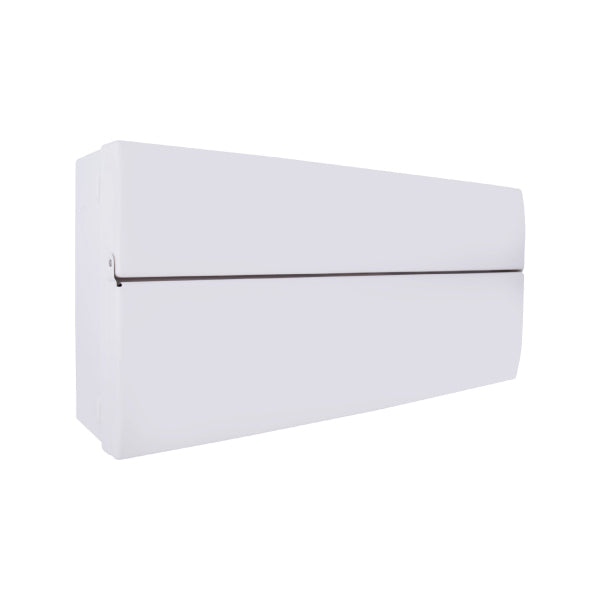

BG 22 Module 14 Way Unpopulated + 100A Switch, 1x80A, 1x63A Type AC RCD & 1xSPD

Features of the Consumer Units range
  • Lockable cover option available
  • Easy access of cables via knockouts, in sides top and bottom, plus additional rear entry knockouts
  • Spirit level, to enable quick installation
  • Backed-out and retained terminal screws, prevents loss of screws, and saves on installation time
Dual RCD SPD Consumer Units - Unpopulated
This range of consumer units give the flexibility of choice of incoming arrangement and with the added inclusion of an SPD to be compliant with the 18th Edition Wiring Regulations BS7671.

This item is 14 Way with 100A Main Switch,1 X 80A 1 x 63A Type AC RCD + SPD

Features

  • These consumer units will suit most applications with the added benefit of having a Surge Protection Device fitted which is now part of the BS7671 18th Edition Regulations
  • Supplied with 100A main switch and the Surge Protection Device (pre-wired)

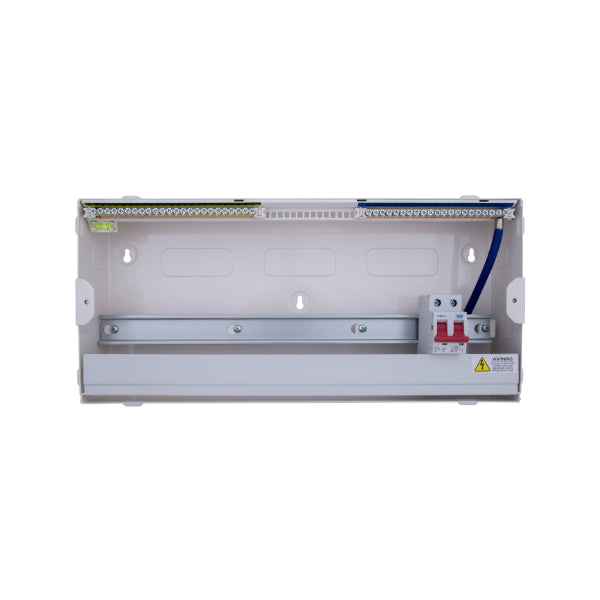

  • The terminal and busbar provide maximum flexibility and come as high integrity as standard for a combination of protected and unprotected circuits
  • A range of RCBOs, MCBs and additional BG control devices can be fitted into the consumer units
  • Lockable covers also available, see accessories section

Circuit Protection Range Leaflet:

Click Here for Circuit Protection Range Leaflet
