Wiska COMBI Junction Boxes

Wiska COMBI Junction Boxes

Are you looking for Wiska COMBI Junction Boxes? If you are, then look no further!

westbasedirect.com stocks the full range of Wiska COMBI Junction Boxes on offer!

Browse the range today.

Wiska COMBI Series: The junction box for inside and outside applications

With their unique design and highest quality, they have met the most demanding installer requirements for years: The COMBI junction box series is an original in every aspect.

Features of the series at a glance:
  • High-quality material of the COMBI junction boxes is UV- and Ozone resistant, therefore suitable for inside as well as outside installations
  • Bellied cover allows 10% more installation space
  • High protection class IP66. With cable gland even IP67
  • Captive and rust-free quick-release lid screws, closing of the box with only a quarter turn (COMBI 206, 308, 407, 607, 1010, 1210, 1610)
  • Self-sealing membranes on the rear enable a clean assembly for cable outputs from the wall (COMBI 108, 206, 407, 607, 1210)
  • Has what it takes: flame-retardant and halogen-free, weather-proof, resistant to ultraviolet, shatter proof, impact-resistant

.

Wiska COMBI Junction Boxes

Since 1993 our iconic COMBI junction box has been the enclosure of choice for professional electricians, installers, engineers and designers across the world.

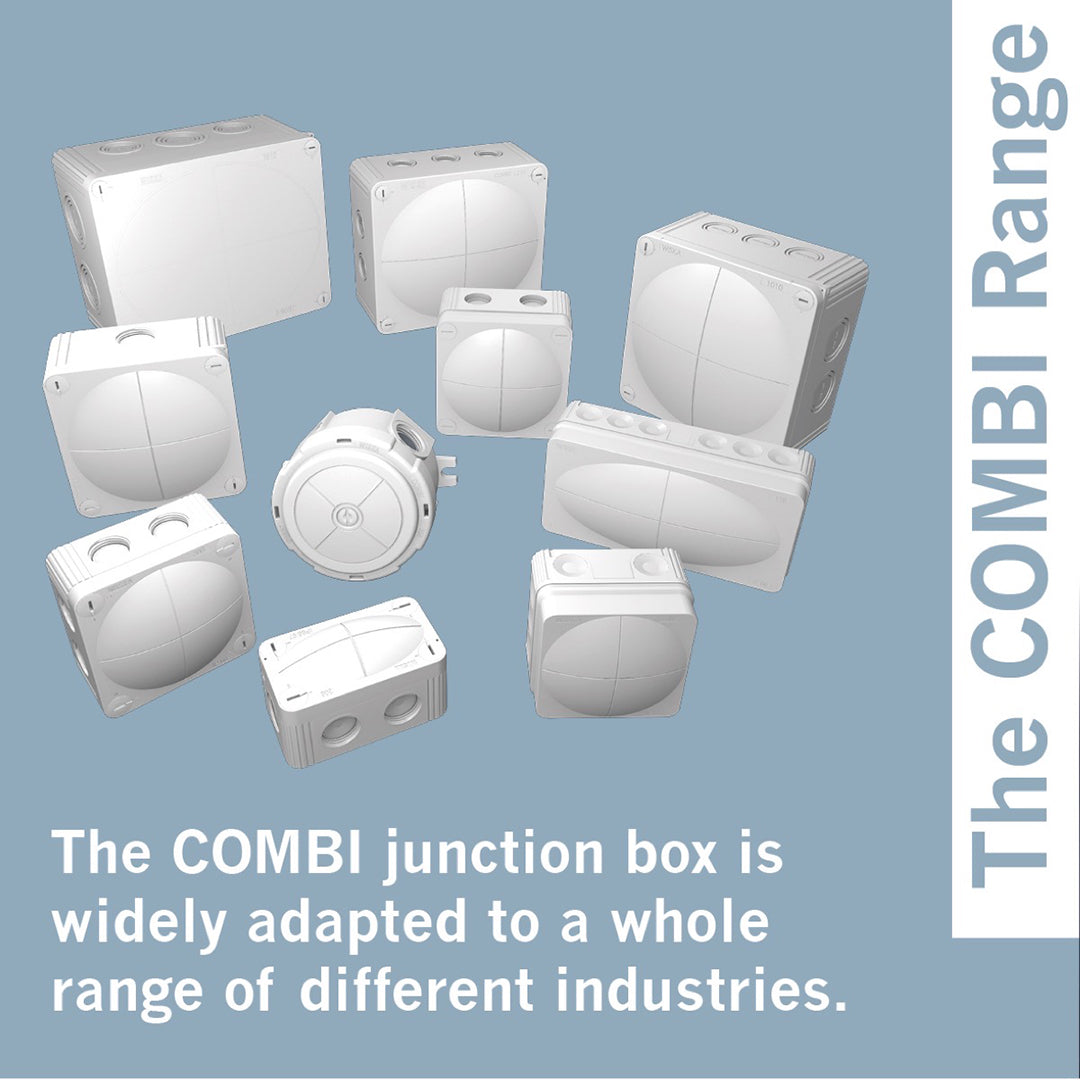

Available in 10 sizes across 3 colours the COMBI junction box series offers high quality protection, security, versatility and above all is quick and easy to install.

Key Benefits:

  • Bellied cover allows 10% more installation space

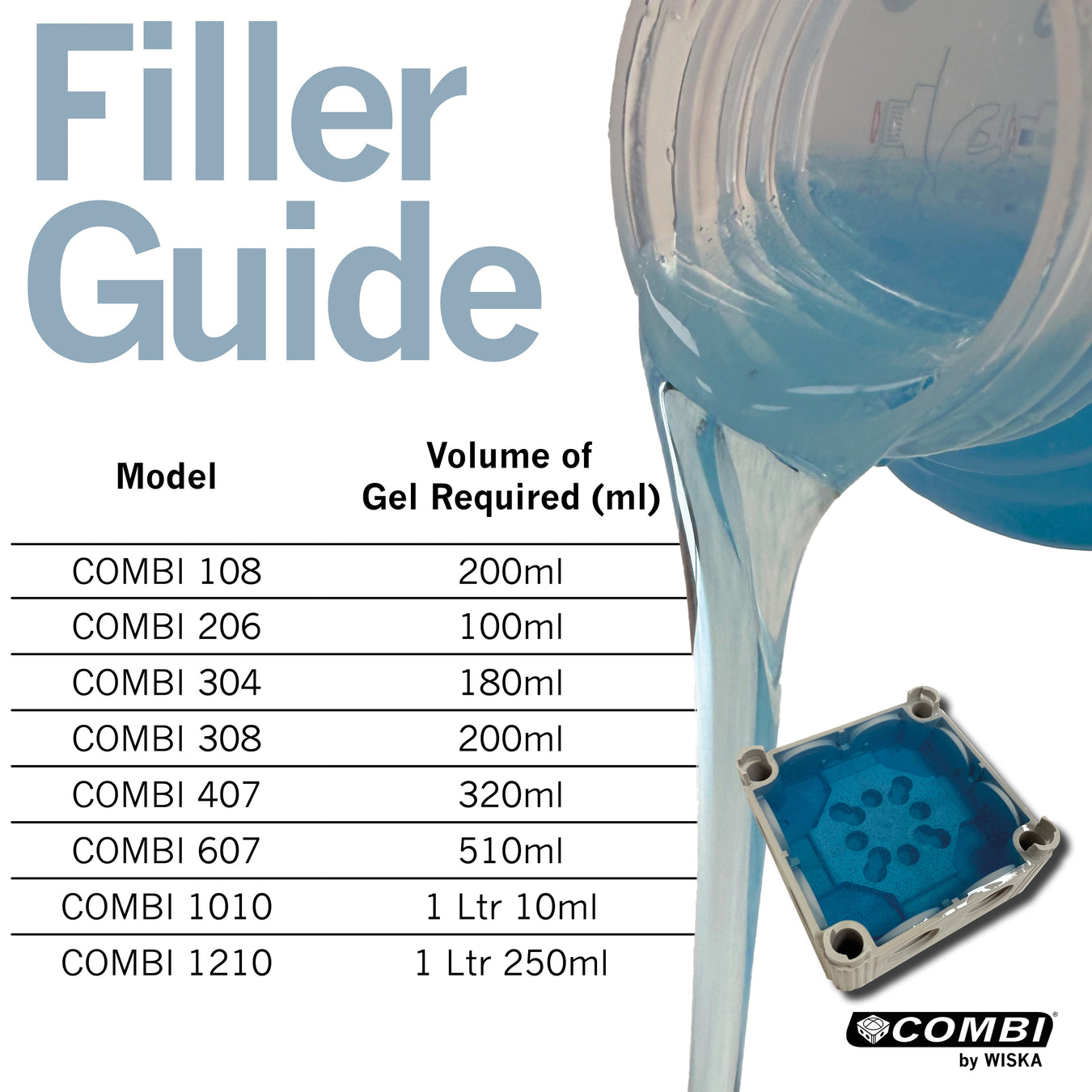

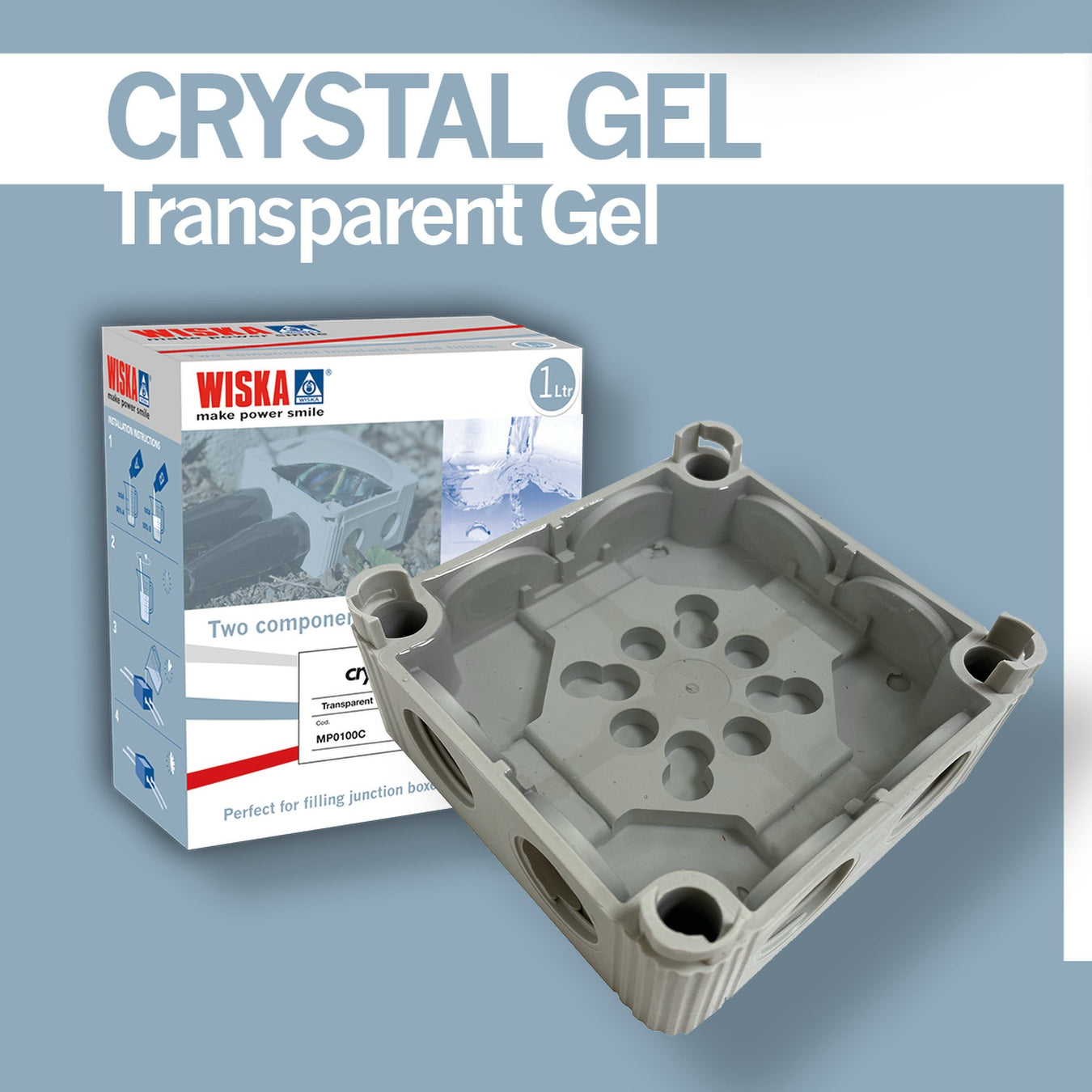

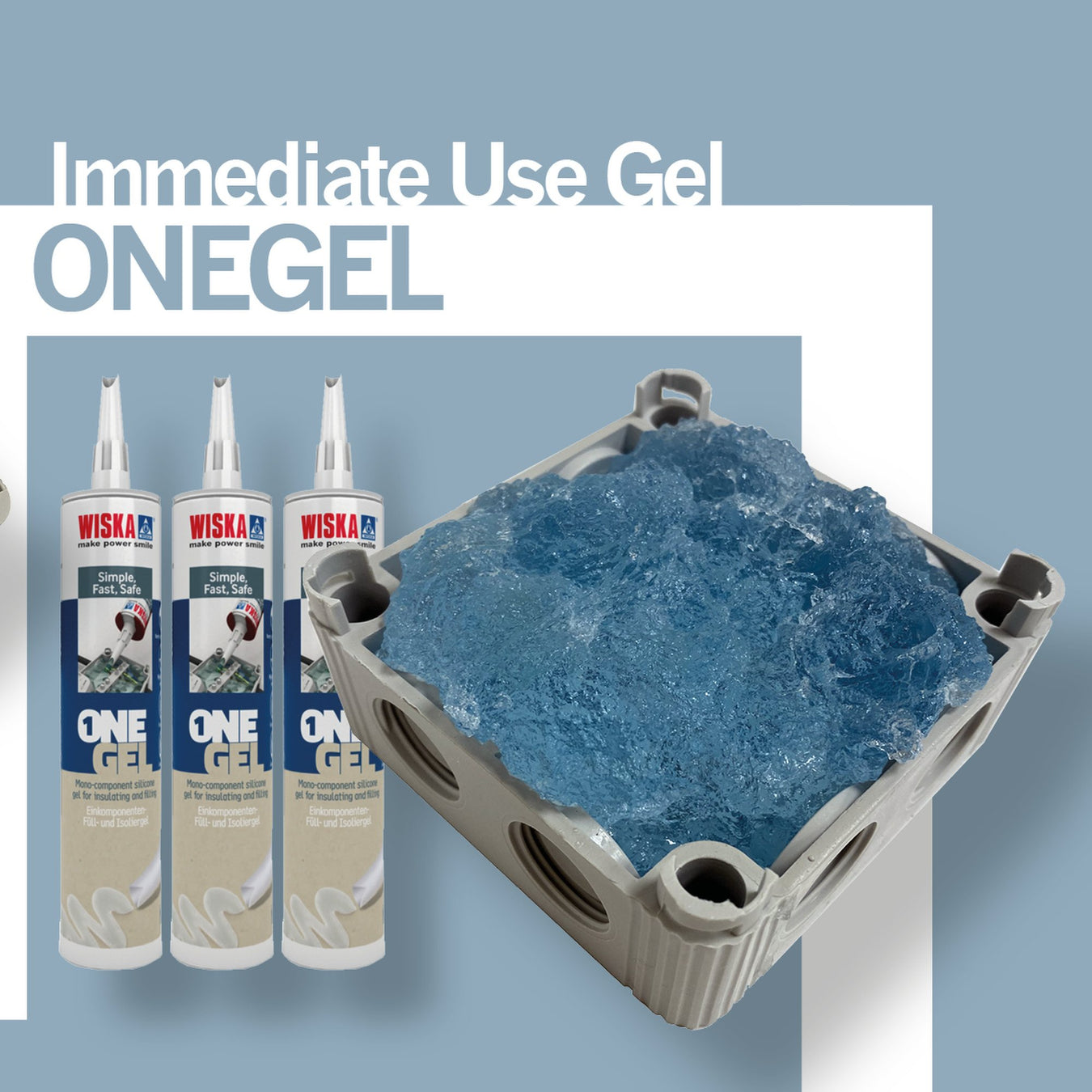

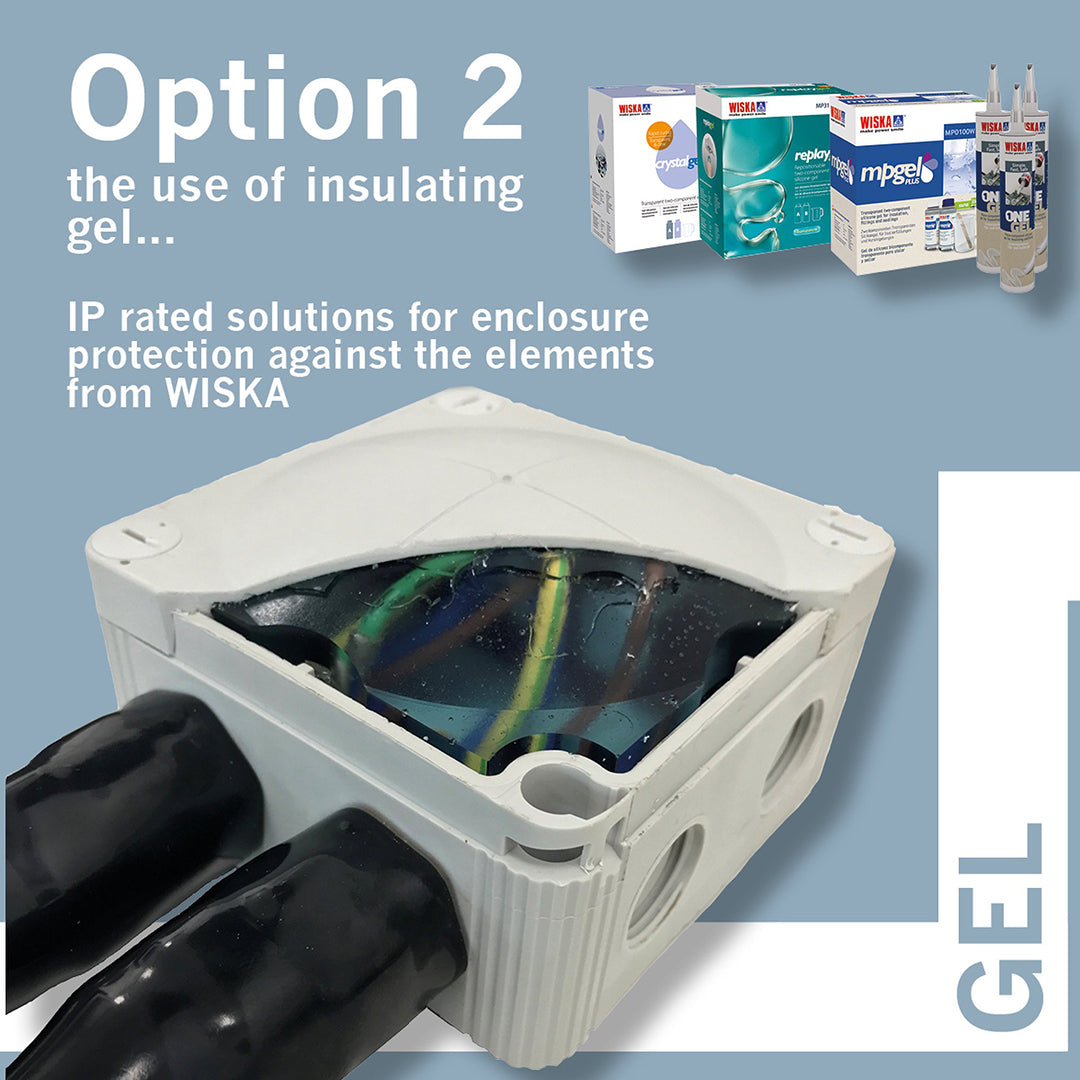

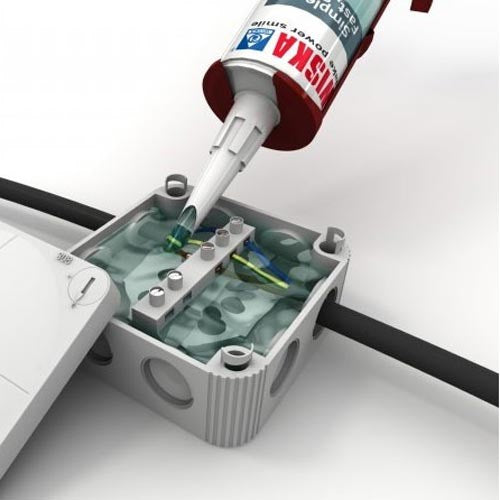

  • IP66 / 67 protection against moisture and dust. Use two-component gel to achieve IP68 protection.
  • UV and Ozone resistant. Suitable for indoor and outdoor use.
  • Rust-free captive quick-release fasteners: close and seal the box with a quarter turn.

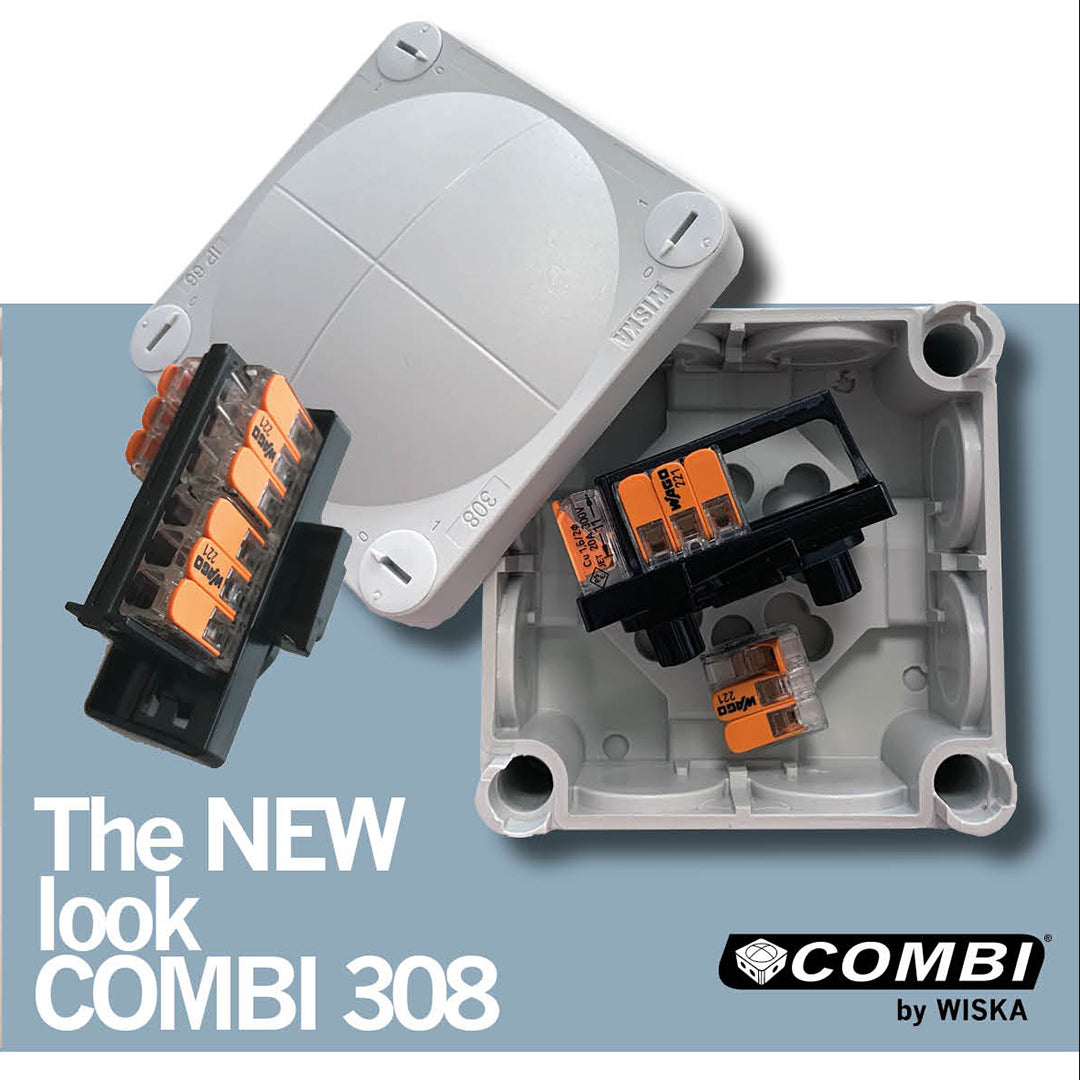

  • Available empty, with terminal block or WAGO 221 3-lever connector and unique connector holder. Possibility of usage of terminal blocks mounting with a DIN Rail.
  • Combined threaded and membrane entries for installation without tools or locknuts.
  • Mounting clip for easy installation.

COMBI size guide

Model

Entries

Entry Size

Dimensions

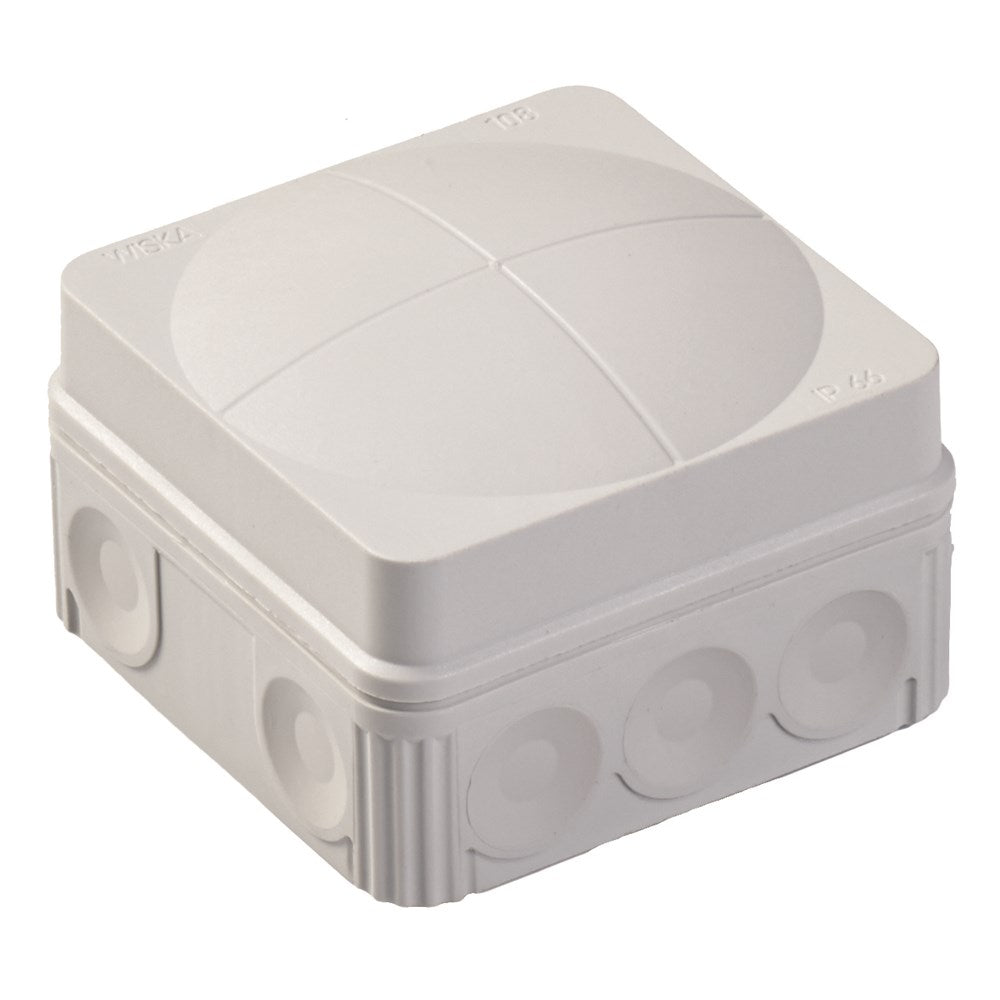

COMBI 108

10*

M20

76 x 76 x 51 mm

COMBI 116

18*

M20

152 x 76 x 51 mm

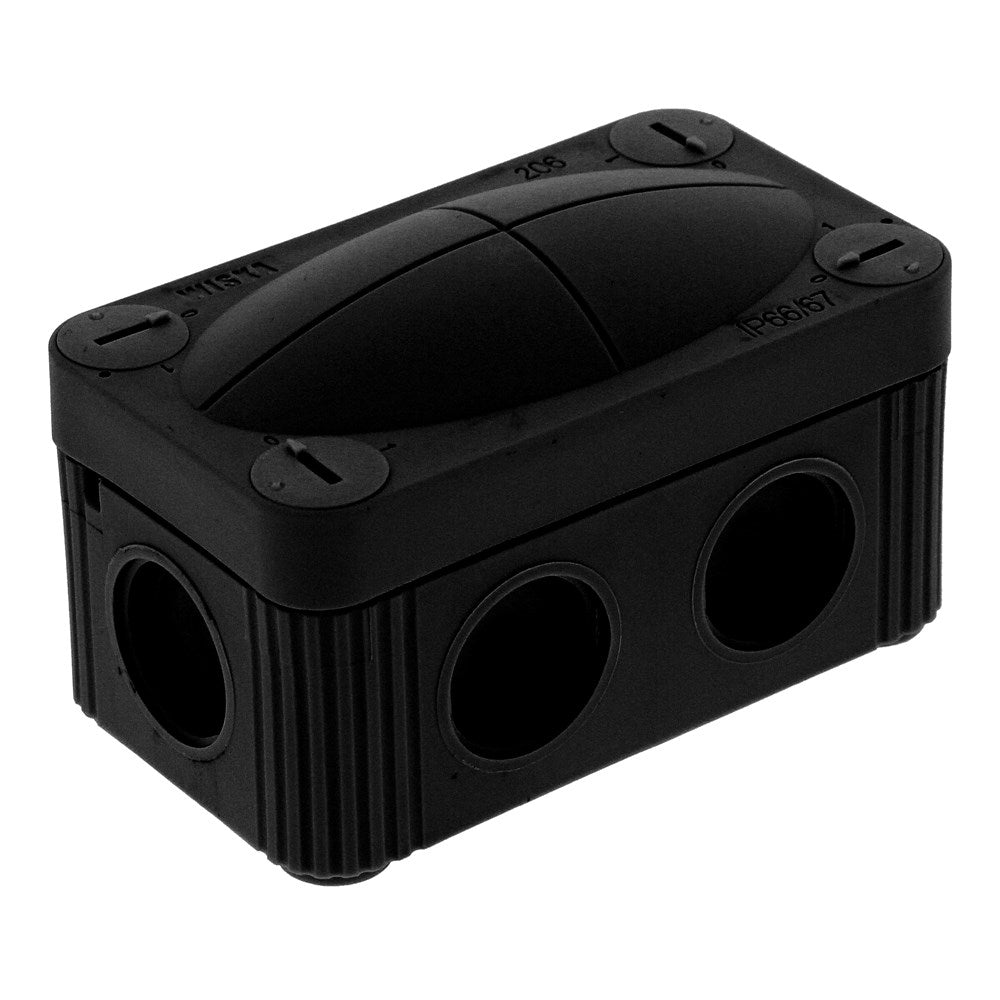

COMBI 206

6**

M20

85 x 49 x 51 mm

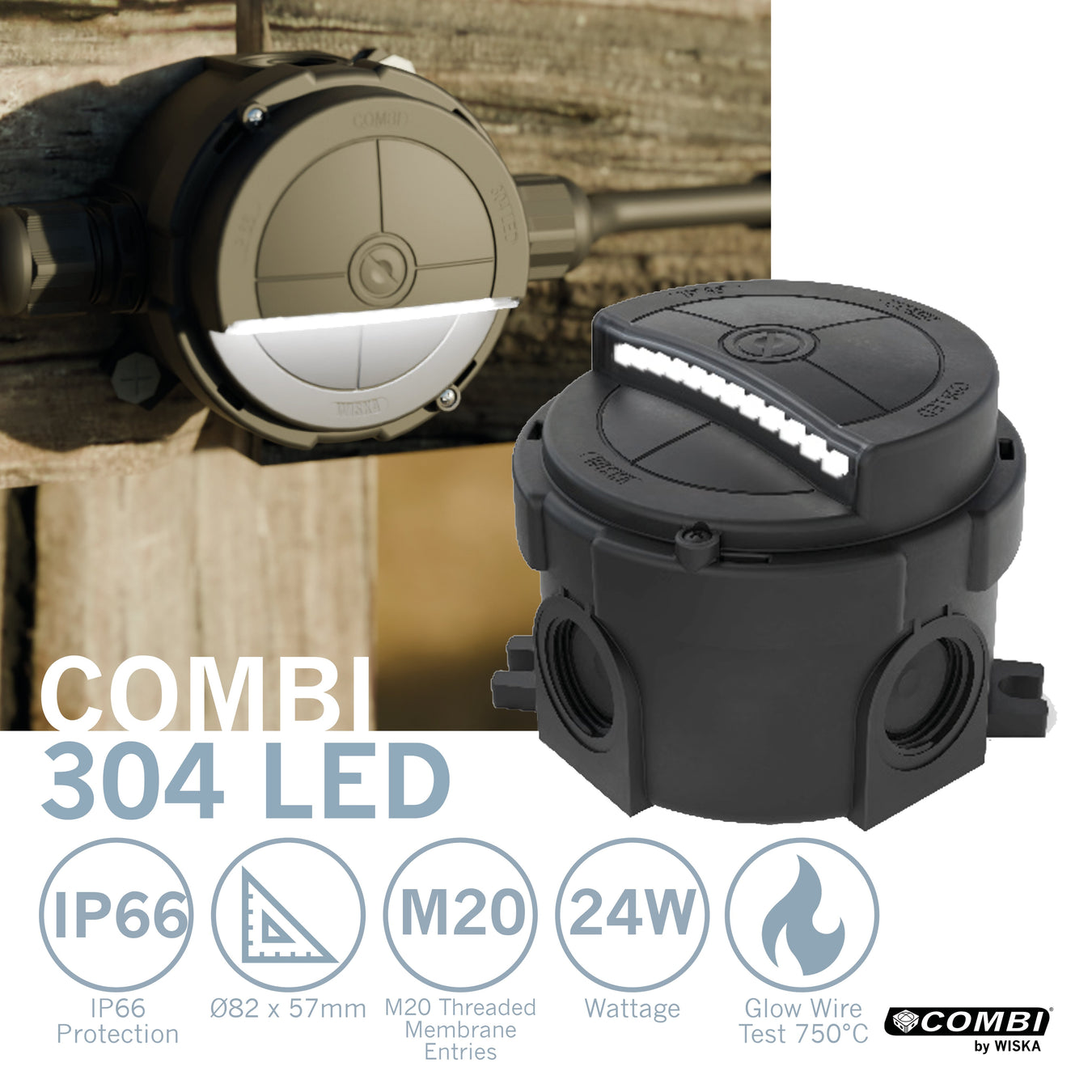

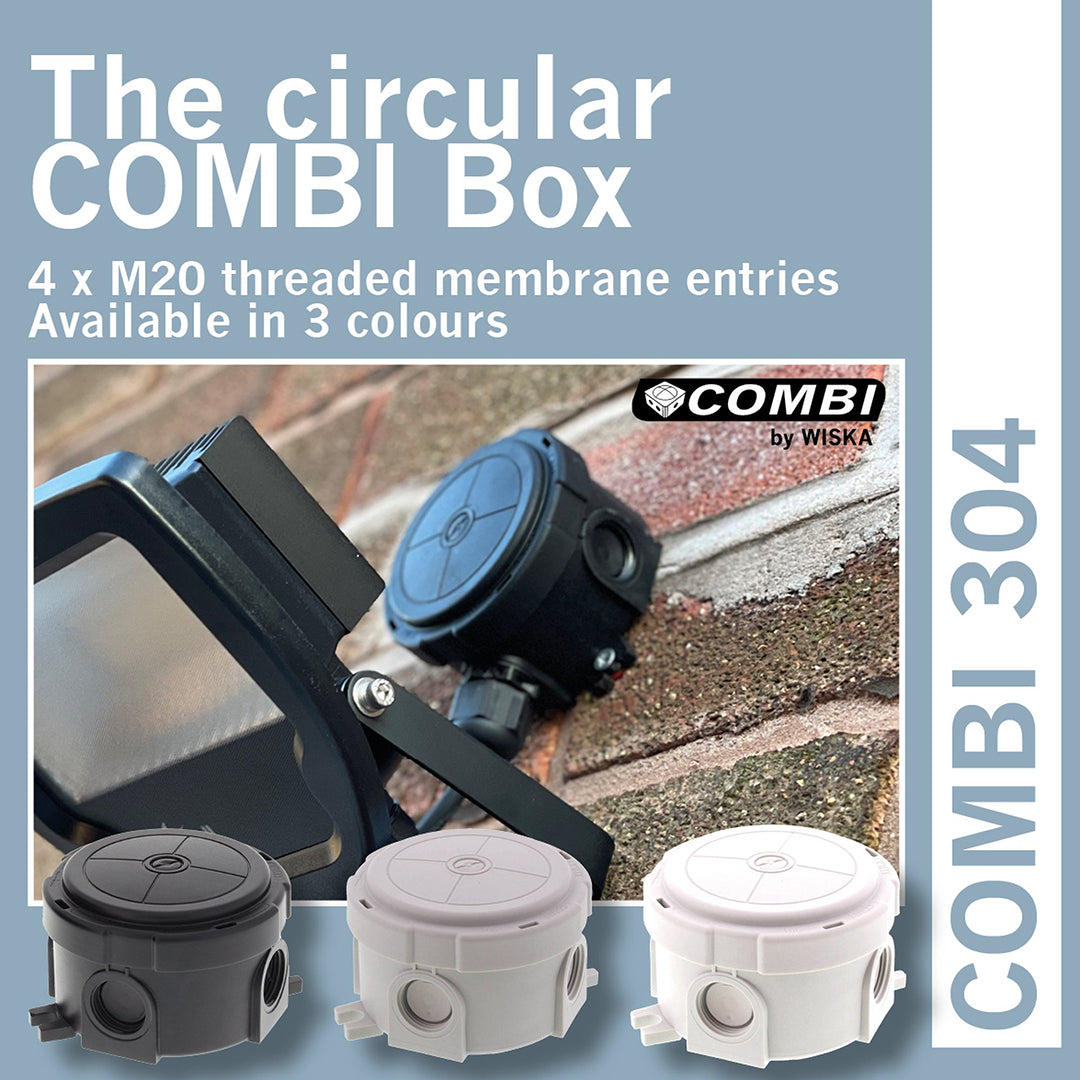

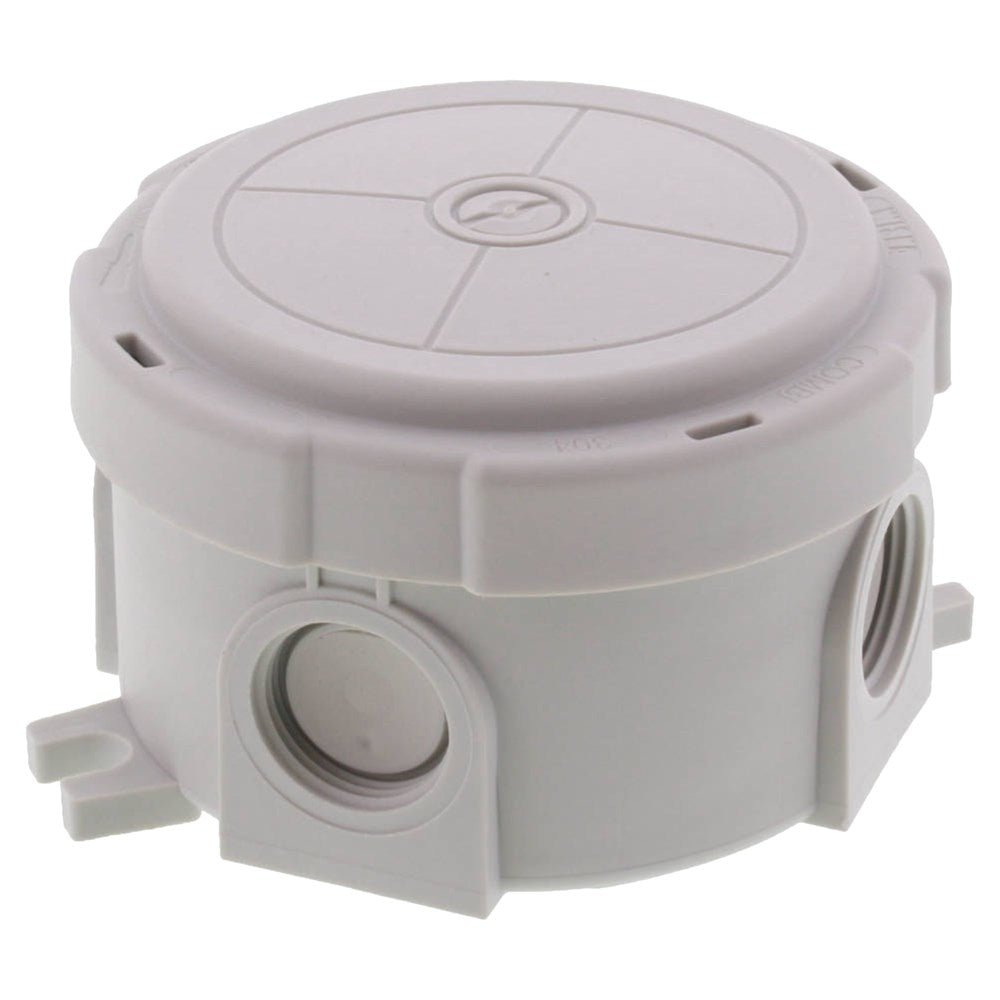

COMBI 304

4**

M20

ø 82 x 57 mm

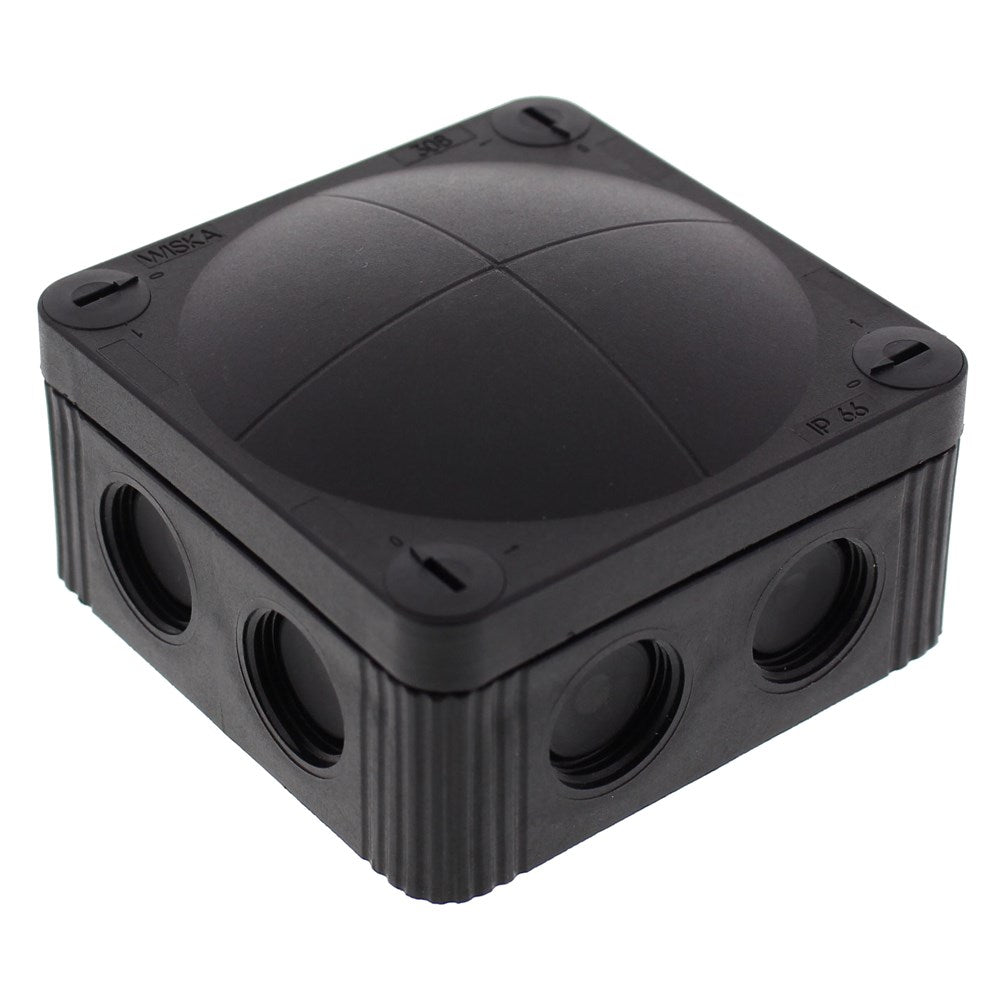

COMBI 308

8**

M20

85 x 85 x 51 mm

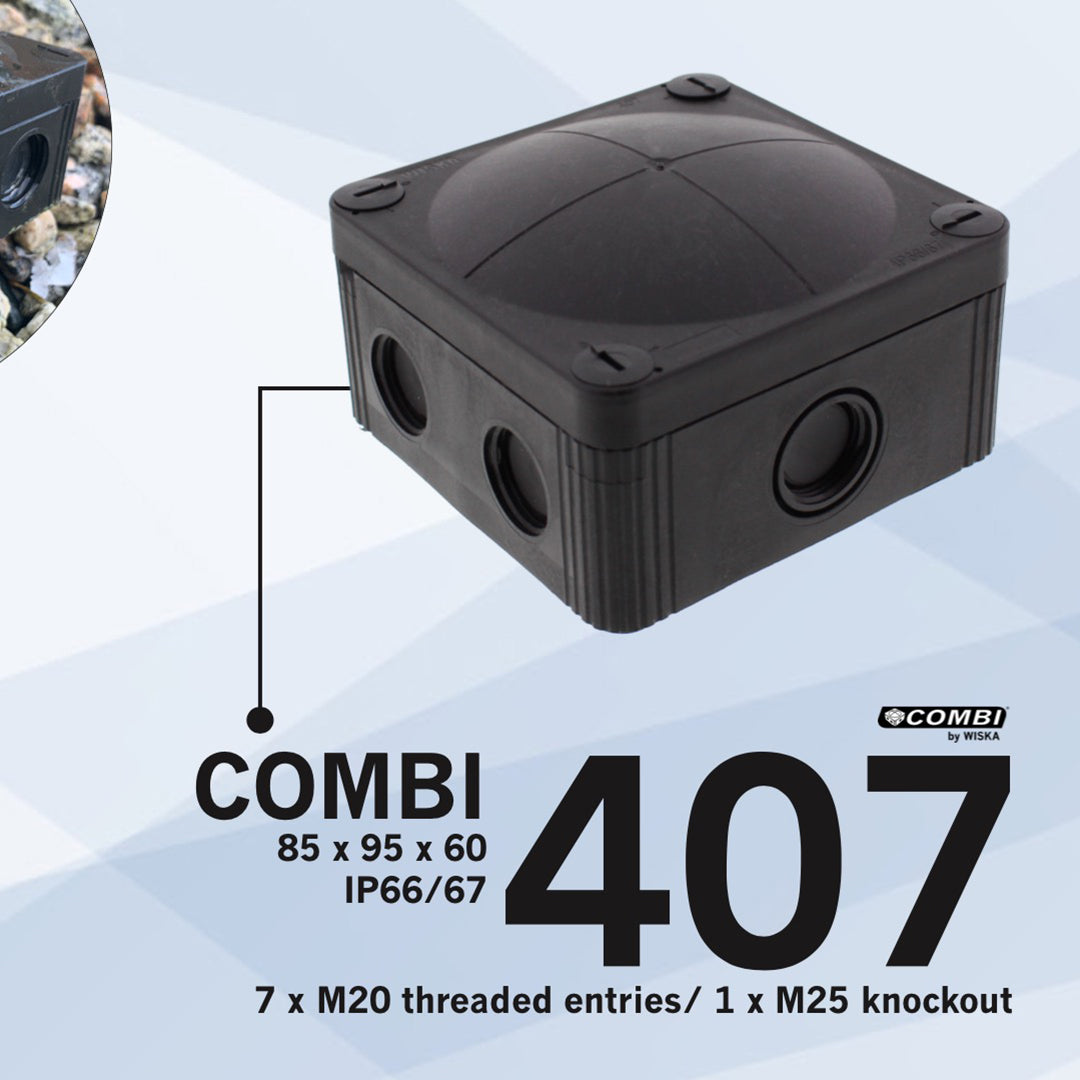

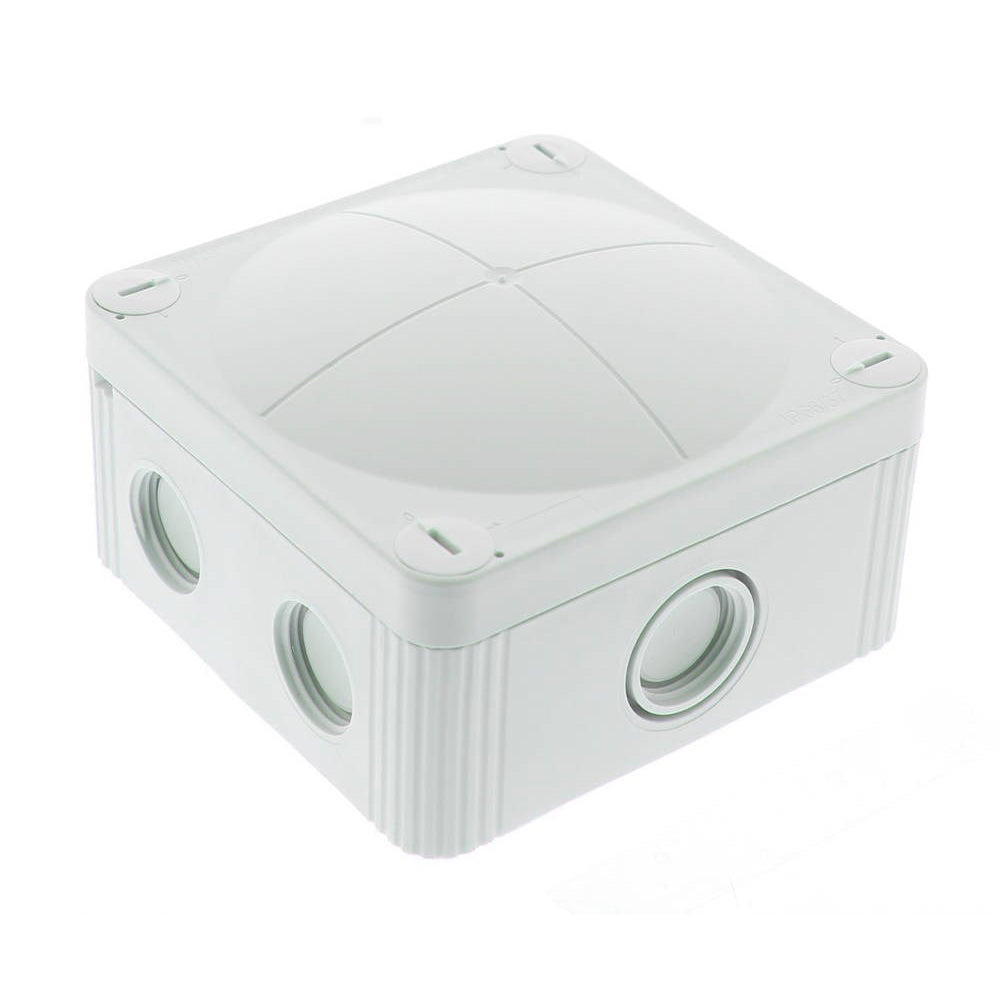

COMBI 407

7***

M20 / M25

95 x 95 x 60 mm

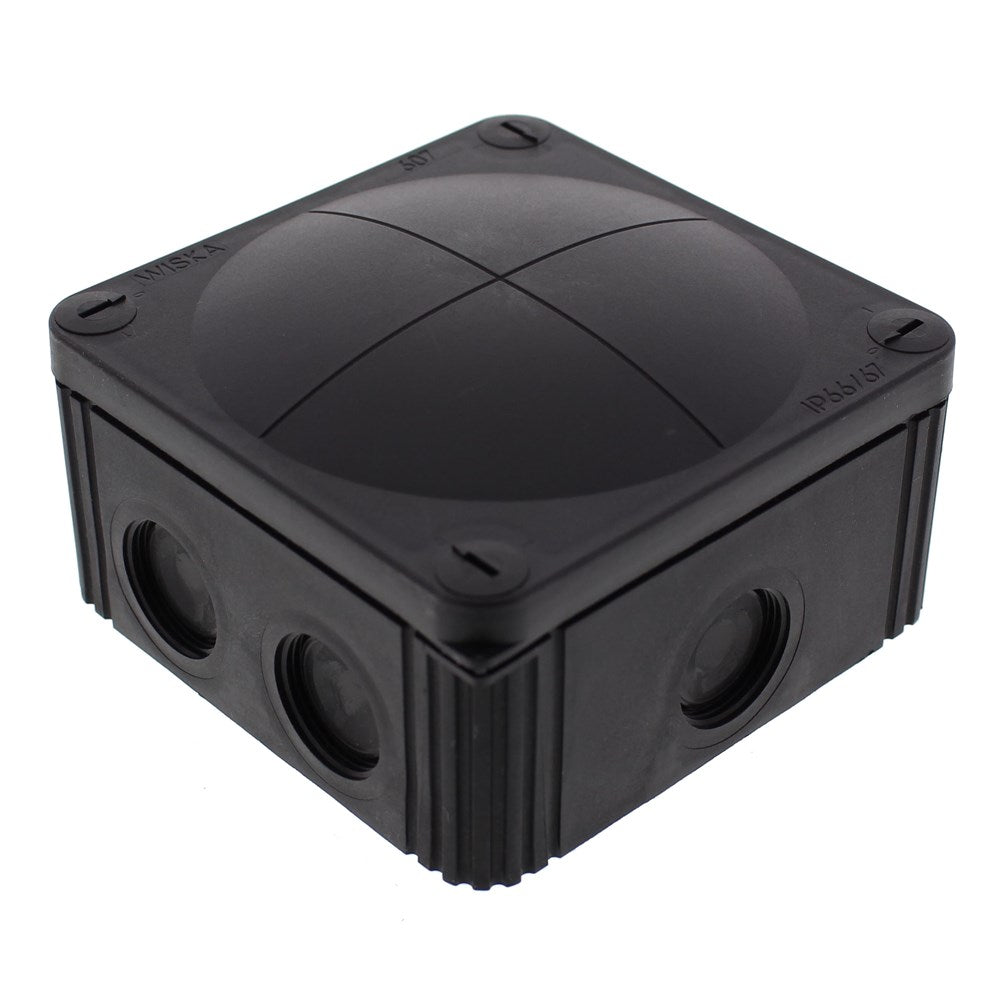

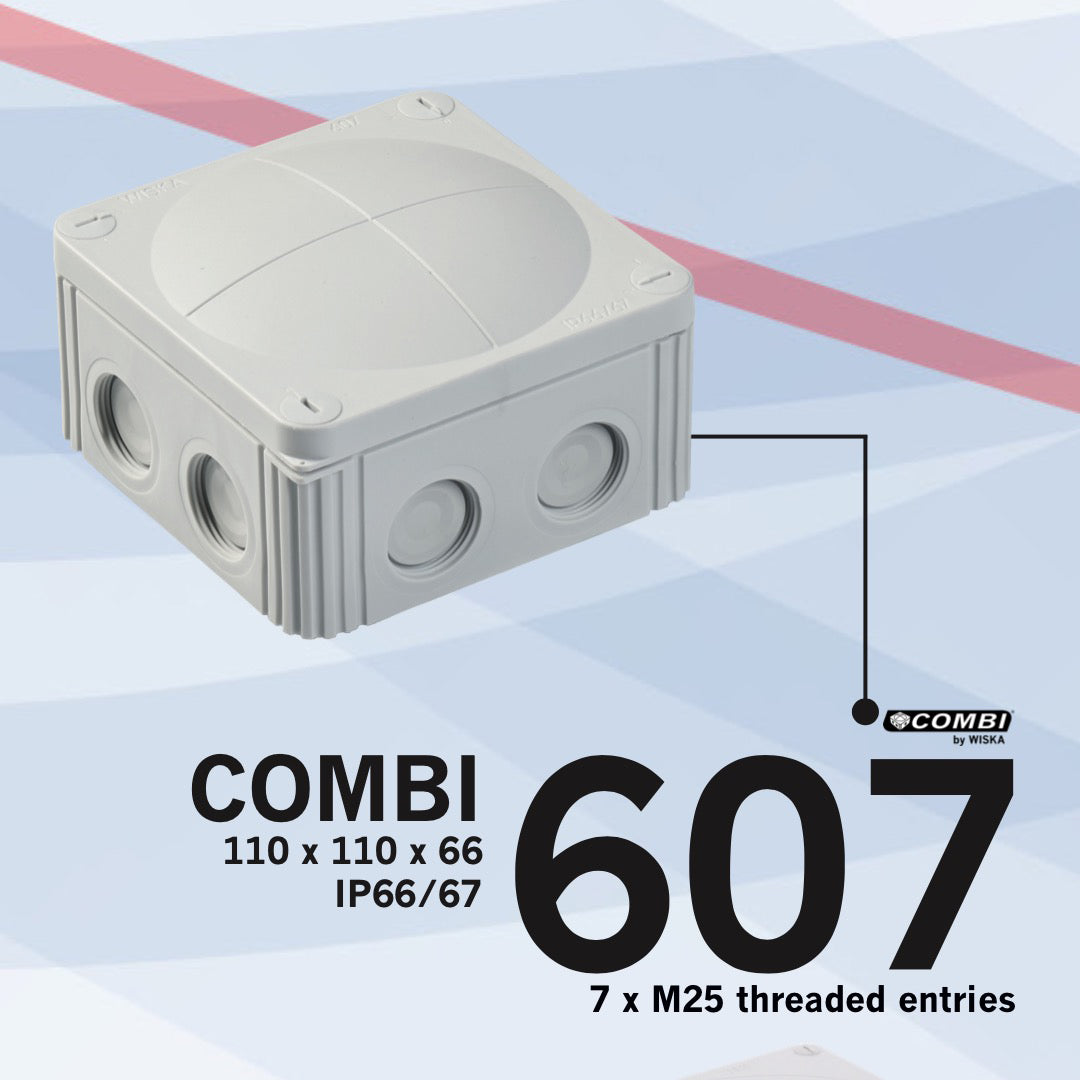

COMBI 607

7**

M25

110 x 110 x 66 mm

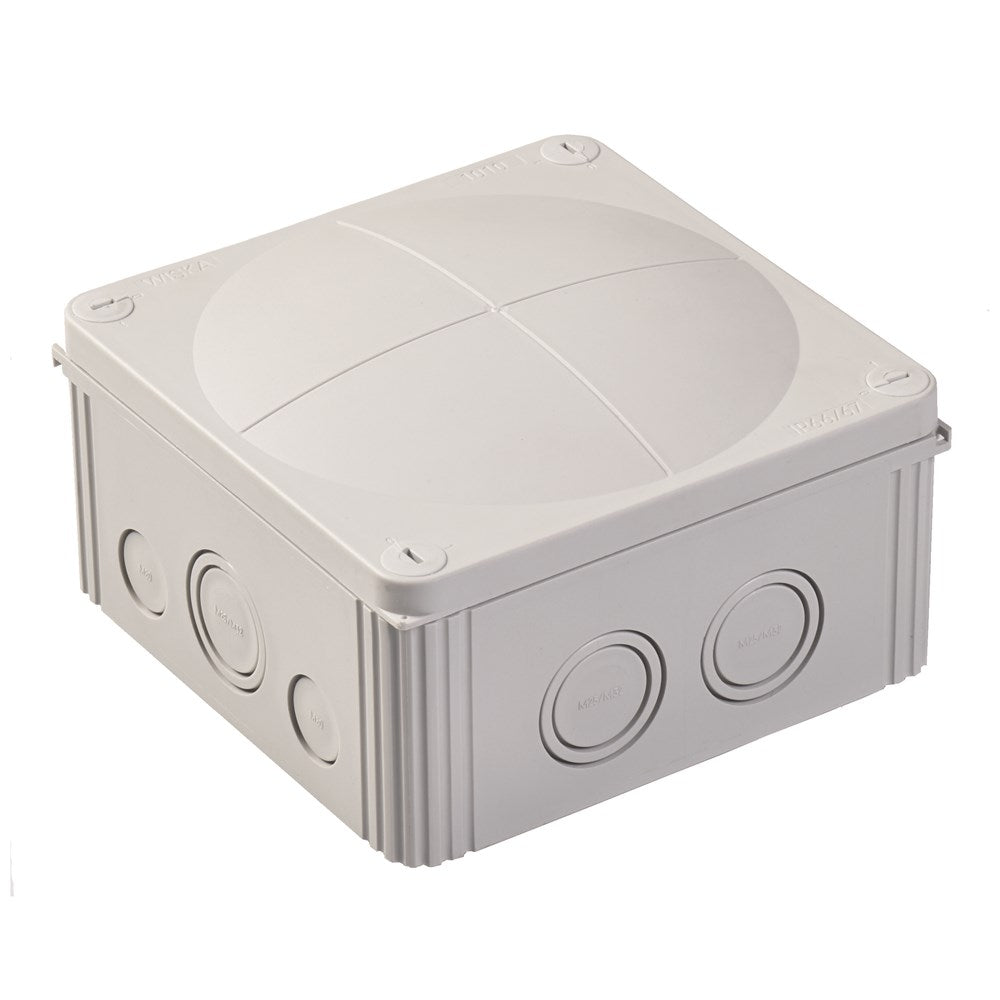

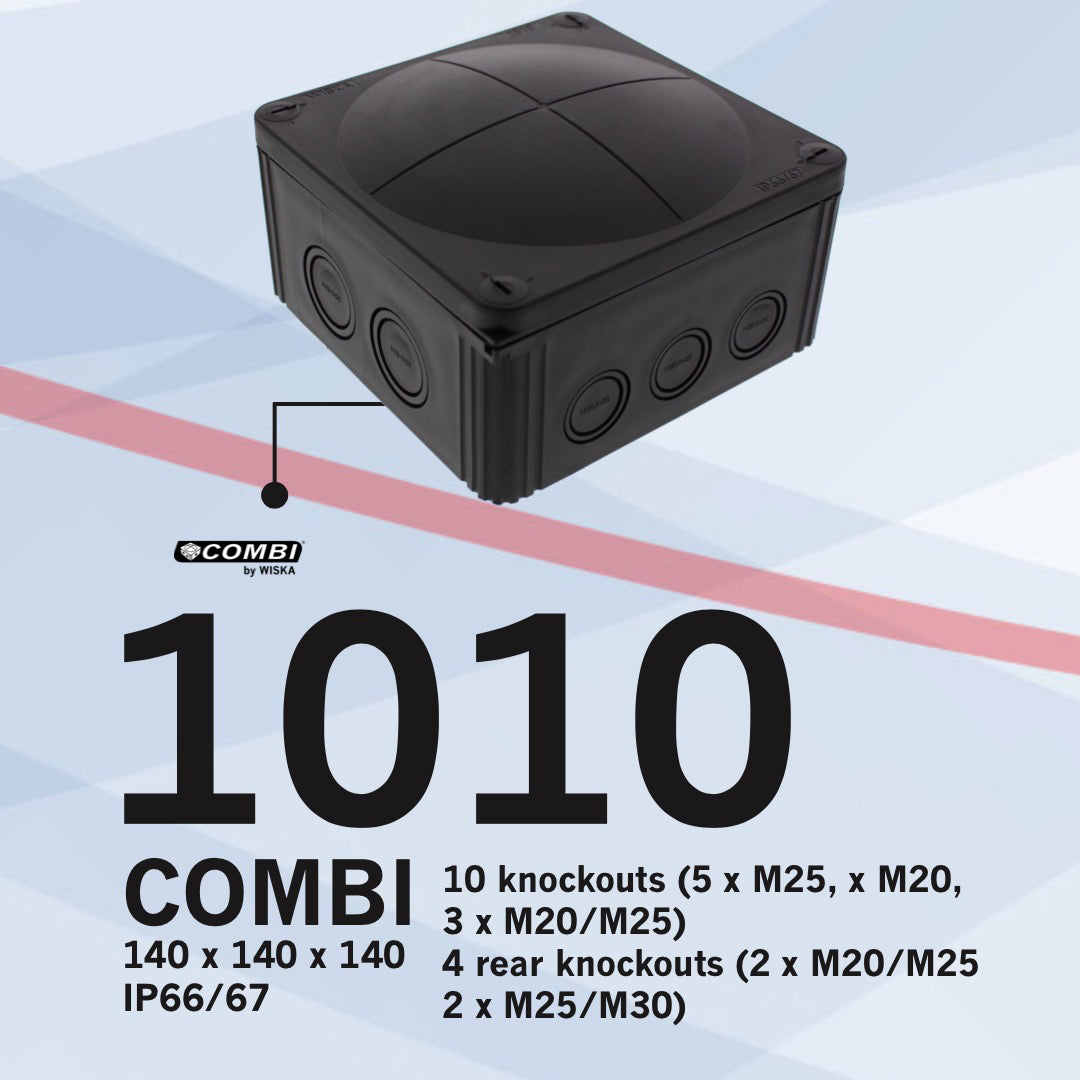

COMBI 1010

10****

M20 / M25 / M32

140 x 140 x 82 mm

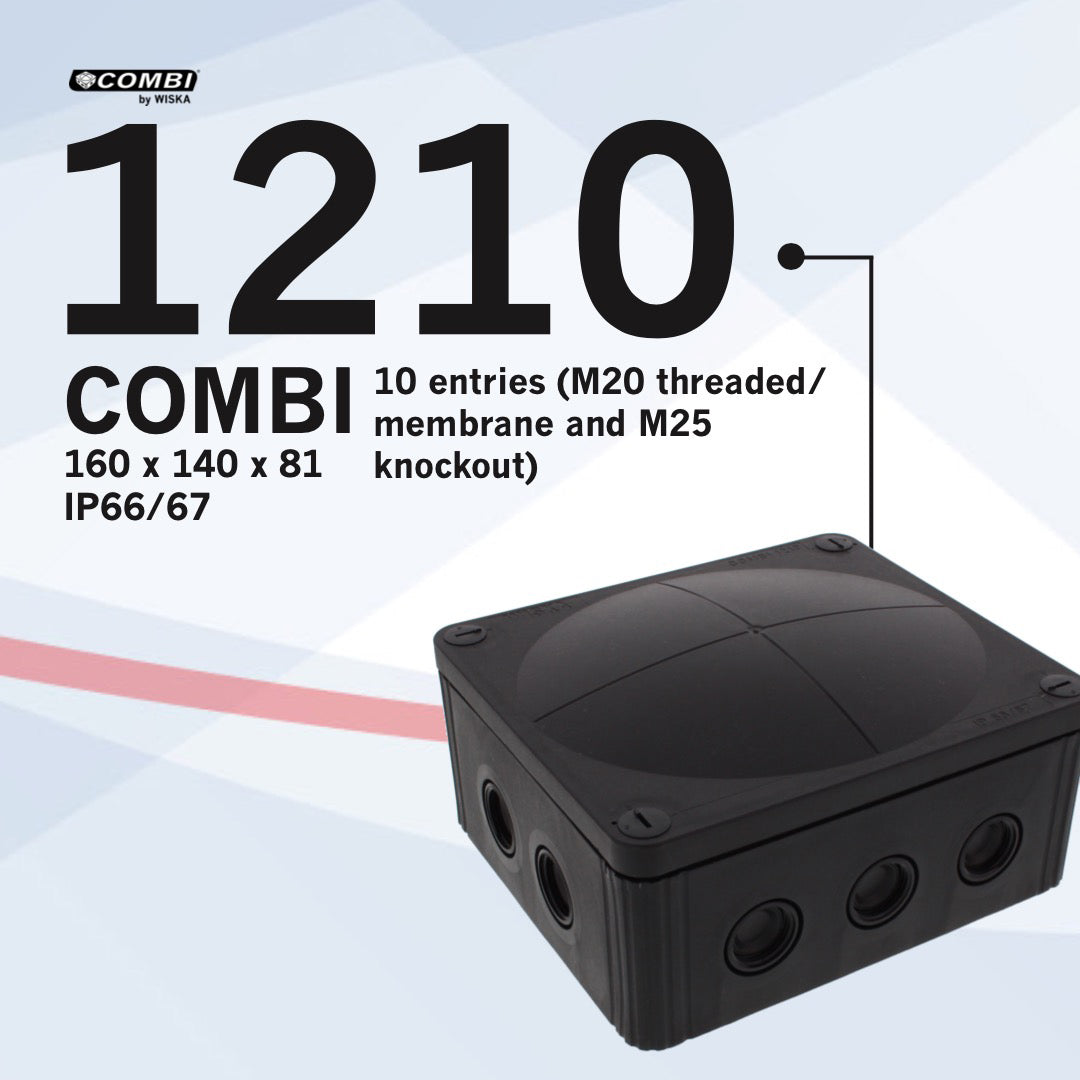

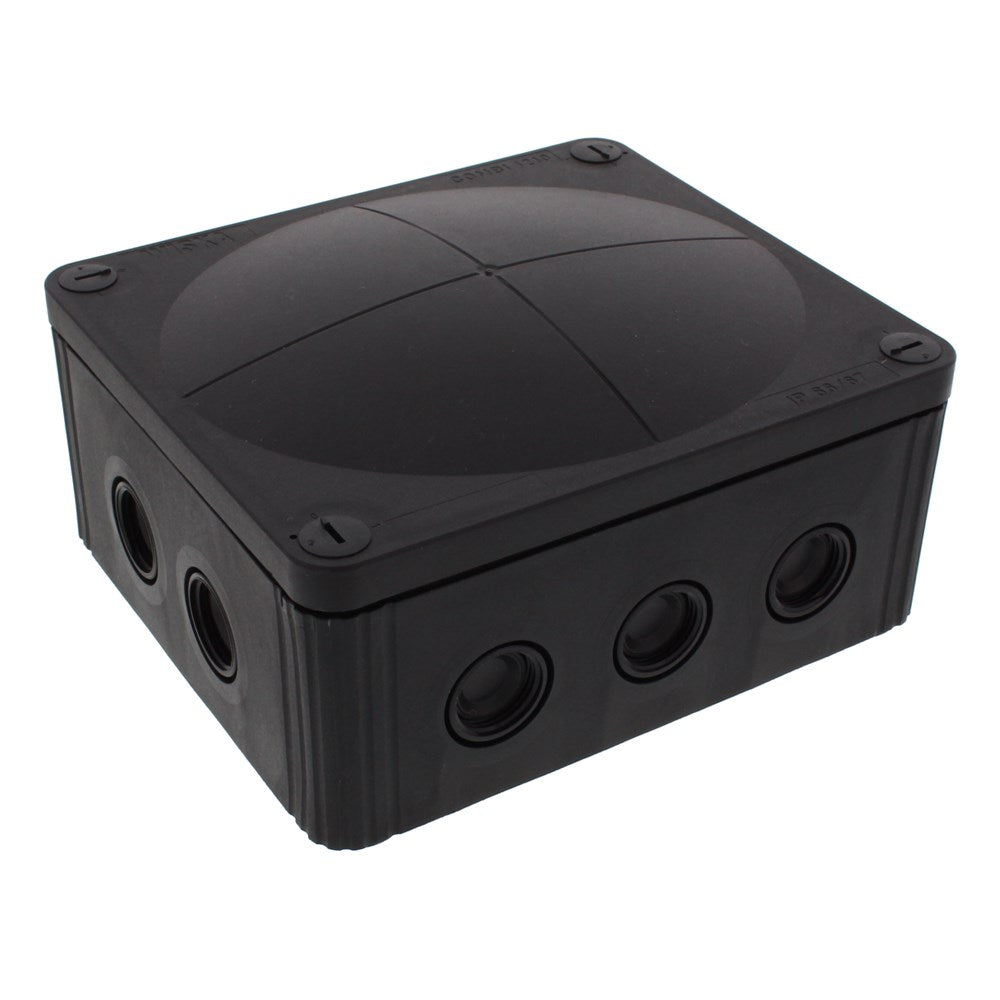

COMBI 1210

10***

M20 / M25

160 x 140 x 81 mm

COMBI 1610

10****

M20 / M25 / M32 / M40

200 x 160 x 94 mm

*Membrane entries / **threaded membrane entries / *** threaded membrane & knockouts / **** knockouts.
