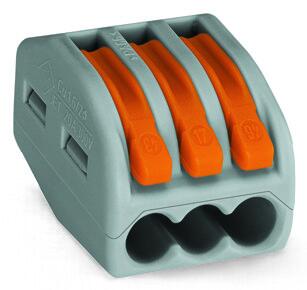

Wago 222-413 4mm² 3-Way Compact Splicing Connector - Gray

Wago 222-413 4mm² 3-Way Compact Splicing Connector - Gray

CLASSIC Splicing Connector; for all conductor types; max. 4 mm²; 3-conductor; with levers; gray housing; Surrounding air temperature: max 40°C; 2,50 mm²; gray

Compact, lever-operated splicing connectors: Tool-free connection of up to five stripped, fine-stranded conductors from 0.08 … 4 mm² (28 … 12 AWG), as well as solid or stranded conductors up to 2.5 mm² (12 AWG).

How these work:

Pull up one of the orange operating levers to open the clamping unit so that the lever engages and keeps the clamp in its opened position. Then insert the conductor and push the lever back down, flush with the connector housing.

Safety:

The lever’s specially designed rest position reliably prevents accidental unclamping of a connected conductor. Application safety, for any type of conductor (solid, stranded, fine-stranded), is confirmed by approvals like ENEC or UL.
ENEC is the European mark for electrical products that demonstrates compliance with European safety standards. The ENEC mark is subjected to the same EN standards as the VDE mark.
While the VDE mark is only permitted in Germany, the ENEC mark is accepted in more than 20 European countries.

Electrical Data:

Ratings per IEC/EN:

• Ratings per: EN 60664
• Nominal voltage (II/2): 400V
• Rated surge voltage (II/2): 4kV
• Rated current: 32A
• Legend (ratings): (II / 2) ? Overvoltage category II / Pollution degree 2

Connection Data:

• Total number of connection points: 3
• Total number of potentials: 1

Connection 1:

• Connection Technology: CAGE CLAMP
• Actuation type: Lever
• Connectable conductor materials: Copper
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch
• Wiring direction: Side-entry wiring

Physical Data:

• Width: 17 mm / 0.669 inch
• Height: 14.5 mm / 0.571 inch
• Depth: 20.5 mm / 0.807 inch

Material Data:

• Color: Gray
• Flammability class per UL94: V0
• Fire load: 0.088 MJ
• Actuator color: Orange
• Weight: 4.2g

Environmental Requirements

• Ambient temperature (operation): +40 °C
• Continuous operating temperature: 85 °C
