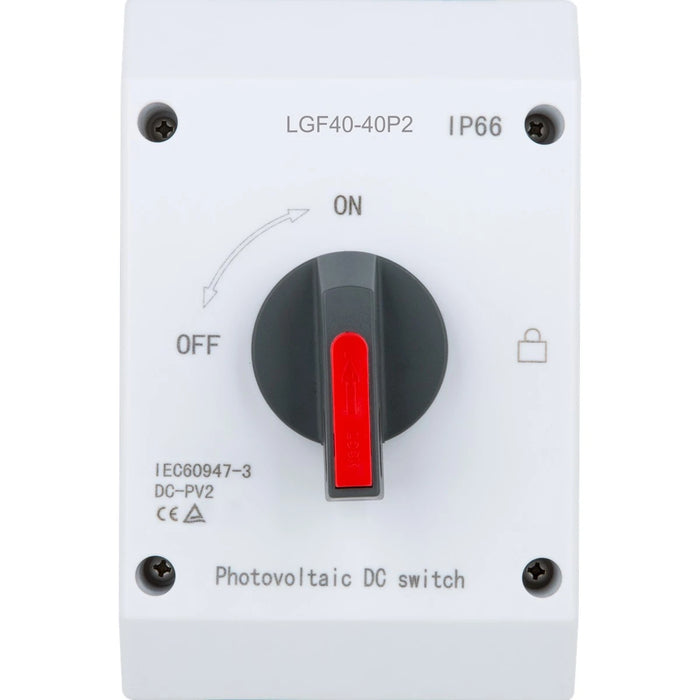

LIVE Electrical LGF40-40P2 4 Pole 40A IP66 Photovoltaic DC Rotary Switch
LIVE Electrical LGF40-40P2 4-Pole 40A IP66 Photovoltaic DC Rotary Switch
Product Overview
The LIVE Electrical LGF40-40P2 4-Pole Photovoltaic DC Rotary Switch delivers robust and reliable DC isolation up to 40A, making it ideal for solar photovoltaic systems and other DC power installations. Each pole is equipped with an advanced arc extinguishing system that ensures safe disconnection by instantly eliminating electrical arcs during operation. This feature significantly extends switch life and enhances safety when handling high DC voltages.
Built to withstand demanding environments, the LGF40-40P2 features a tough, fully sealed IP66-rated enclosure for complete protection against dust and powerful water jets. The switch is engineered to comply with IEC 60947-3 standards and includes a grounding terminal for added safety. Additionally, its safety interlock ensures that the cover can only be removed when in the “off” position, preventing accidental contact with live components.
Key Features & Benefits
- Rated current (In): 40A – suitable for higher-capacity DC isolation circuits.
- Poles: 4P – supports multi-string or high-voltage photovoltaic systems.
- Protection rating: IP66 – dustproof and resistant to heavy water exposure.
- Closing time: Approximately 2 milliseconds for rapid and safe switching.
- Safety interlock: Cover removable only in the “off” position for maximum operator safety.
- Compliance: Conforms to IEC 60947-3 for reliable low-voltage DC isolation.
- Grounding terminal: Provides secure earthing for safer operation.
- Operating temperature: -25°C to +85°C – dependable performance in extreme climates.
Typical Applications
- Solar photovoltaic (PV) system isolation and protection
- Battery energy storage (BESS) and DC distribution systems
- Industrial and renewable DC control panels
- Off-grid power generation systems
