BG CURB45 45A Single Pole Type AC RCBO - B Curve 6kA 30mA
SKU CURB45
Availability:
SOLD OUT
Sold out
Original price
£6.49
-
Original price
£6.49
Original price
£6.49
Inc VAT
£5.41
Exc VAT
£6.49
-
£6.49
Current price
£5.41
£5.41
-
£5.41
Current price
£5.41

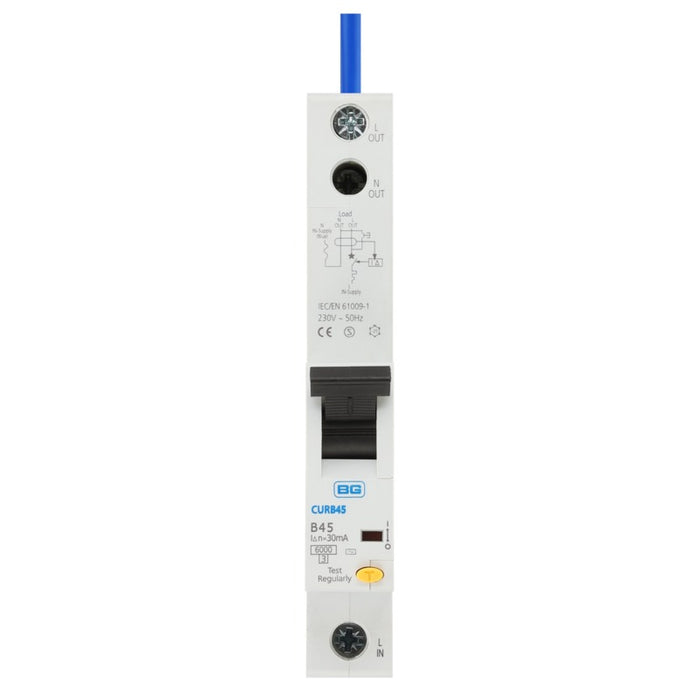

BG 45A Single Pole 1 Module B Curve 6kA 30mA Type AC RCBO
CURB45
- Lockable cover option available
- Easy access of cables via knockouts, in sides top and bottom, plus additional rear entry knockouts
- Spirit level, to enable quick installation
- Backed-out and retained terminal screws, prevents loss of screws, and saves on installation time
The single module RCBOs are a combination of B Curve MCB and an RCD. This provides overload and short circuit protection as well as earth fault current protection in one device.
A combined MCB and RCD allows earth fault protection of a single circuit, and helps reduce nuisance tripping of other circuits, i.e. avoids unnecessary inconvenience and improves safety in the home. For example the lighting circuit remains on whilst a problem with another circuit is disconnected.
All RCBOs have a positive contact status indicator, i.e. when green window is visible this indicates that there is a 4mm contact gap.
This item is 45A 30mA RCBO, Single Pole, Breaking capacity 6kA
Features
- Positive contact indication status
- Device capable of being locked in the 'ON' or 'OFF' position
- Manufactured and tested to EN/IEC 61009-1 standards
- 6kA breaking capacity
- Type AC, B Curve
- 45A
Data Sheet:
Click Here for Data SheetCircuit Protection Range Leaflet:
Click Here for Circuit Protection Range Leaflet
