Wiska 10113412 COMBI 310 Polypropylene Junction Box with 3× 3-Pole WAGO 221-413 Connectors 117x85x51mm – White
Product Overview

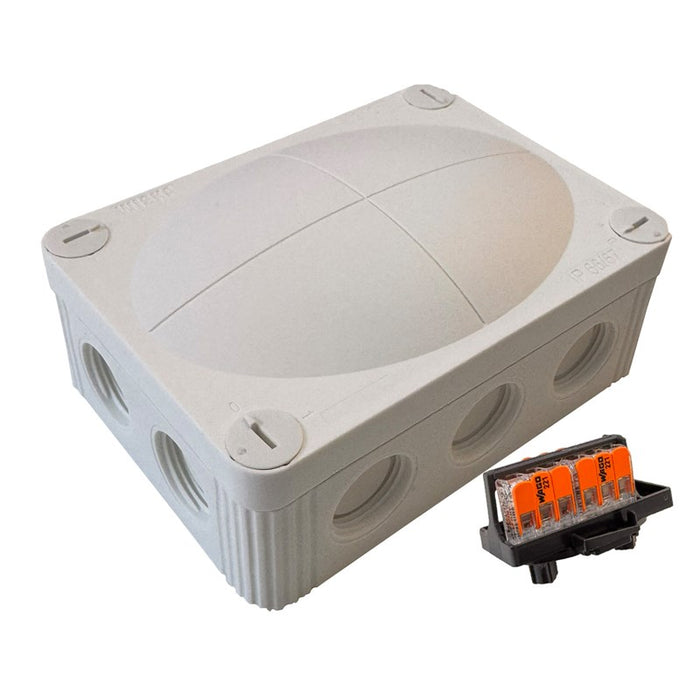

The Wiska 10113412 COMBI 310 Junction Box in white is a durable and versatile enclosure featuring three pre-installed 3-pole WAGO 221-413 connectors on a quick-fit terminal carrier for rapid, secure installation. Constructed from high-grade polypropylene with a TPE sealing gasket, it ensures exceptional resistance to moisture, dust, and impact, making it suitable for both indoor and outdoor electrical connections.
With an IP66/IP67 protection rating, the COMBI 310 offers long-lasting reliability in demanding environments, providing watertight and dustproof protection for a wide range of electrical applications. The white finish provides a clean, modern appearance ideal for residential and commercial settings.
Key Features
- Type: COMBI 310 WH / 3-221-413
- Colour: White (RAL 9003)
- Terminal Type: 3 × 3-pole WAGO 221-413 connectors
- Material: High-quality Polypropylene enclosure
- Sealing Gasket Material: TPE (Thermoplastic Elastomer)
- Temperature Range: -30°C to +100°C (installation: -5°C to +60°C)
- Protection Class: IP66 using membrane entry / IP67 using threaded entry with ESKV cable gland
- Glow Wire Test: 750°C flame resistance
- Voltage Rating: 400V
- Rated Cross Section: Up to 4mm²
- Cable Diameter Range: 3mm to 12mm
- External Dimensions (L × W × H): 117 × 85 × 51mm
- Cable Gland Thread Type: M20 × 1.5
- Fixing: 4 internal openings located outside the sealing area to maintain integrity
Included Equipment
- 10 × M20 threaded membrane entries
- 4 × captive cover screws
- Pre-installed terminal carrier with 3 × WAGO 221-413 connectors
- Quick-mounting plate for efficient assembly
Installation Notes
For IP66 protection, use the integrated membrane entry. To achieve IP67 protection, use the threaded entry with ESKV cable glands. The internal fixing points are designed outside the sealing area to preserve the enclosure’s watertight seal and simplify mounting.
