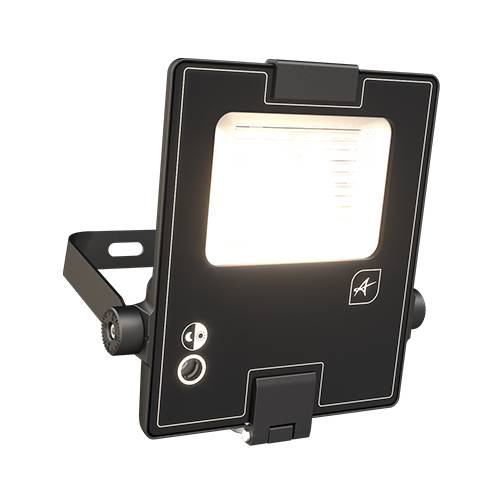

Ansell AAZT1/ASY/1 Aztec 1 Asymmetric Floodlight 20W/40W IP66 CCT 3000K/4000K/5000K Black
Ansell AAZT1/ASY/1 Aztec 1 Asymmetric LED Floodlight 20W/40W IP66 CCT 3000K/4000K/5000K Black
Product Overview
The Ansell AAZT1/ASY/1 Aztec 1 Asymmetric LED Floodlight combines outstanding performance and precision engineering in a durable, weather-resistant housing. Designed with asymmetric lens technology to reduce upward light spill and minimise glare, this high-efficiency floodlight is ideal for car parks, sports areas, and general exterior lighting applications.
Offering CCT selection between 3000K, 4000K, and 5000K, the luminaire delivers versatility for a range of environments. With up to 180lm/W efficacy and a selectable power output of 20W or 40W, it ensures optimal light control with energy savings. The IP66 rating, marine-grade aluminium housing, and pre-installed breathable gland provide exceptional protection against harsh conditions, ensuring long-lasting reliability.
Key Features
- Selectable Power and CCT: Choose 20W or 40W and adjust between 3000K, 4000K, or 5000K for adaptable illumination.
- Asymmetric Lens Technology: Reduces light pollution by directing illumination precisely where needed.
- High Efficiency: Delivers up to 180 lumens per watt for maximum energy savings.
- Durable Marine-Grade Design: Die-cast aluminium housing suitable for coastal and industrial environments.
- IP66 Rated: Provides superior protection from dust and powerful water jets.
- Pre-installed Breathable Gland: Prevents internal condensation for enhanced longevity.
- Quick Installation: Bracket allows fitting without removal; includes 1.5m pre-wired rubber cable.
- Fast-fit Lever Terminals: Simplifies wiring with loop-in/loop-out installation.
- Integral Photocell: Offers two lux settings and off mode for automated control.
- 6kV Surge Protection: Ensures protection against transient voltage spikes for 20–80W models.
- Non-Dimmable: Provides consistent, flicker-free performance.
Applications
- Car parks and forecourts
- Sports facilities and outdoor courts
- Building façades and signage lighting
- Industrial and commercial sites
- Coastal and marine environments
- Security and perimeter lighting
