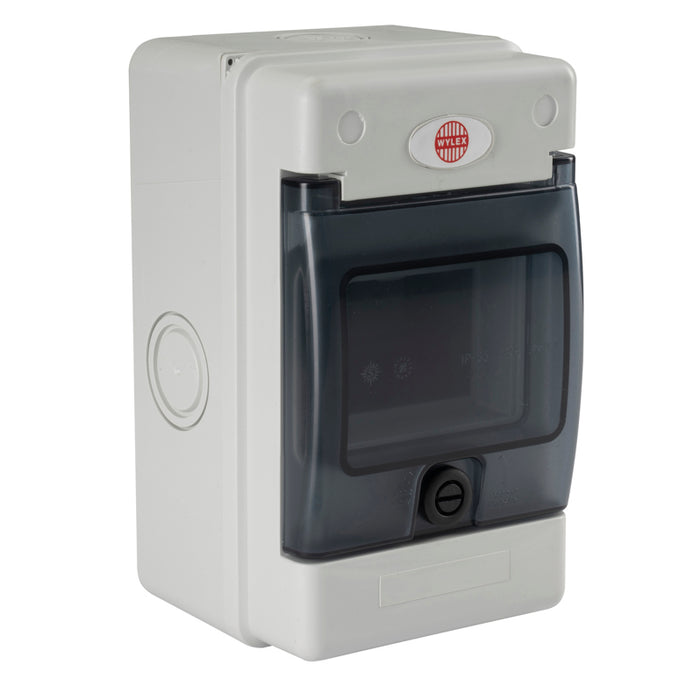

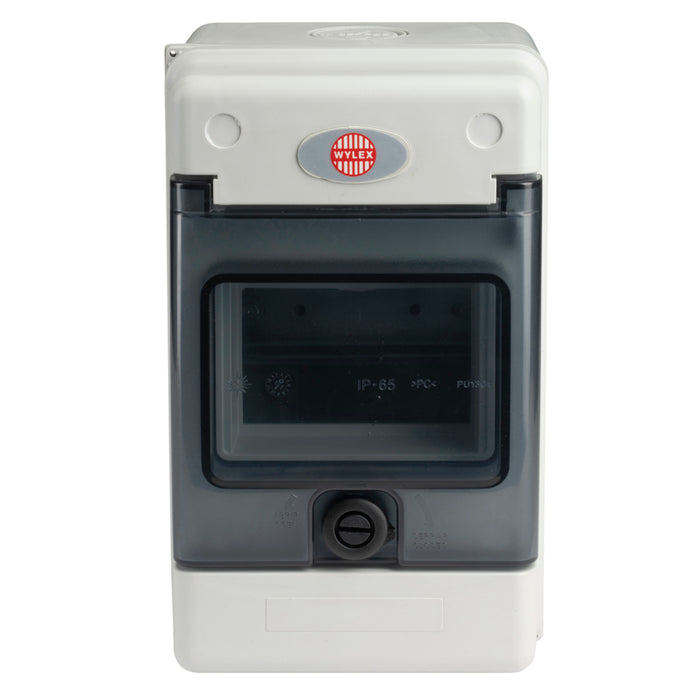

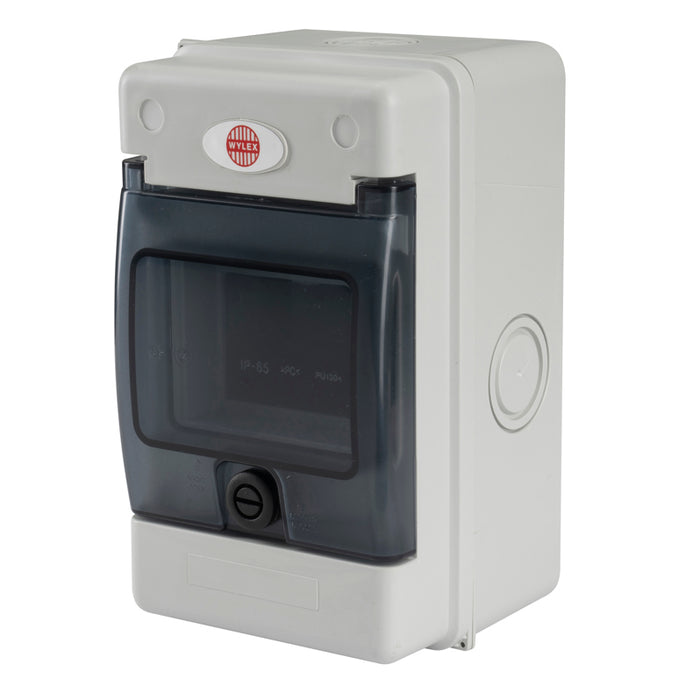

Wylex WBE4X 4 Module IP65 DIN Rail Insulated Enclosure

This product is suitable replacement for WBE4.

The Wylex WBE4X 4 Module DIN Rail Insulated Enclosure provides a durable and secure housing solution for electrical protection and control devices. Designed to accommodate up to four DIN rail modules, this compact enclosure is ideal for electrical installations requiring reliable protection against dust, water and mechanical impact.

Featuring an IP65 ingress protection rating and IK08 impact resistance, the Wylex WBE4X is suitable for demanding environments where electrical components need additional protection. The enclosure includes a full DIN rail for convenient device mounting, while integrated cable entry knockouts allow straightforward installation of suitable cable glands.

Key Features

• 4 Module Capacity: Compact insulated enclosure designed to accommodate up to four DIN rail modules.
• IP65 Rated: Provides protection against dust ingress and water jets.
• IK08 Impact Resistance: Robust construction designed to withstand mechanical impacts.

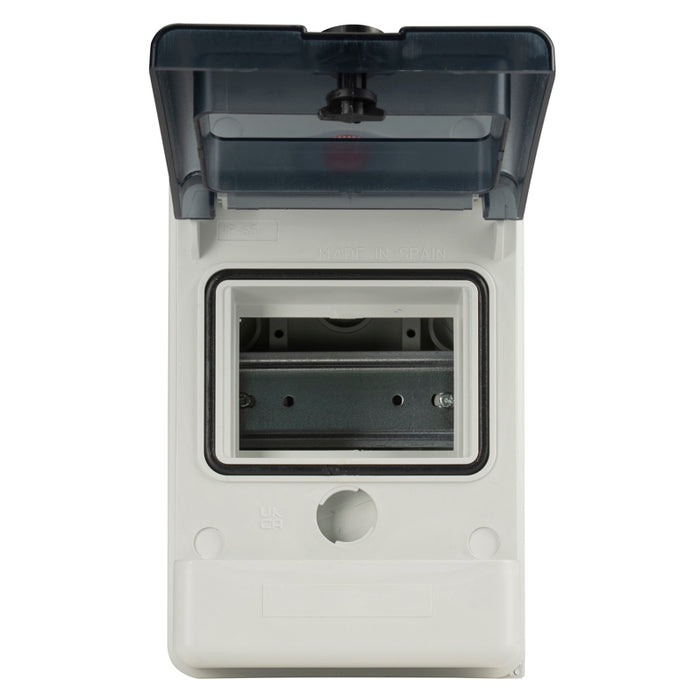

• Full DIN Rail Included: Enables convenient mounting of compatible electrical devices.

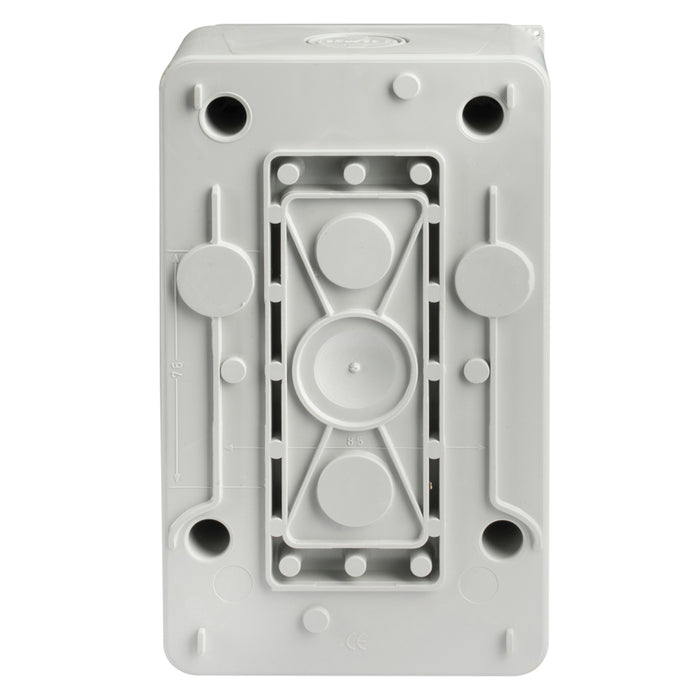

• Cable Entry Knockouts: Suitable for installing cable glands to provide secure cable connections.
• Insulated Construction: Provides a protective housing for electrical components.
• Versatile Installation: Suitable for a range of electrical distribution and control applications.

Technical Specifications

• Manufacturer: Wylex
• Product Code: WBE4X
• Product Type: DIN Rail Insulated Enclosure
• Module Capacity: 4 Modules
• Ingress Protection: IP65
• Mechanical Impact Rating: IK08
• Mounting System: DIN Rail
• DIN Rail Included: Yes
• Cable Entry: Knockouts suitable for cable glands

Applications

The Wylex WBE4X 4 Module Enclosure is suitable for housing compatible DIN rail-mounted electrical devices in domestic, commercial and industrial installations where a compact, insulated and weather-resistant enclosure is required.

Data Sheet

Download Wylex WBE4X Data Sheet (PDF)
