WAGO 224-201 2.5mm² Inline Lighting Service Connector – Grey (Box of 50)

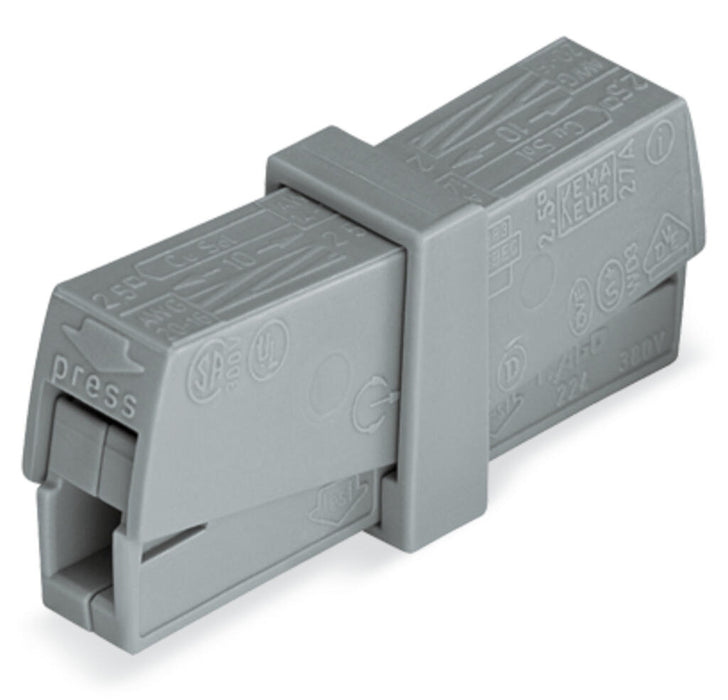

The WAGO 224-201 Inline Lighting Service Connector provides a quick, secure and reliable solution for connecting electrical conductors in lighting installations. Part of the trusted WAGO 224 Series, this compact grey connector is designed to simplify wiring between solid installation conductors and various types of lighting conductors.

Featuring WAGO's proven CAGE CLAMP® spring pressure connection technology, the 224-201 ensures dependable, maintenance-free electrical connections. Its convenient push-in connection system makes installation straightforward, while the compact side-entry design is ideal for lighting circuits and electrical installations where space is limited.

Rated at 400V and 24A, this 2-pole connection unit accommodates conductor sizes from 0.5mm² to 2.5mm². Supplied in a full box of 50 connectors, it is a practical choice for electricians, electrical contractors and professional lighting installers.

Key Features

• WAGO 224 Series: Reliable inline service connector designed for lighting installations.
• 2.5mm² Maximum Conductor Size: Supports conductor cross-sections from 0.5mm² to 2.5mm².
• CAGE CLAMP® Technology: Spring pressure connection provides secure, maintenance-free conductor termination.
• Push-In Connection: Enables quick and straightforward wiring.
• Versatile Conductor Compatibility: Lighting side accepts different conductor types, while the installation side is designed for solid conductors.
• 400V Rated Voltage: Suitable for electrical lighting connections within the specified ratings.
• 24A Rated Current: Provides dependable electrical performance.

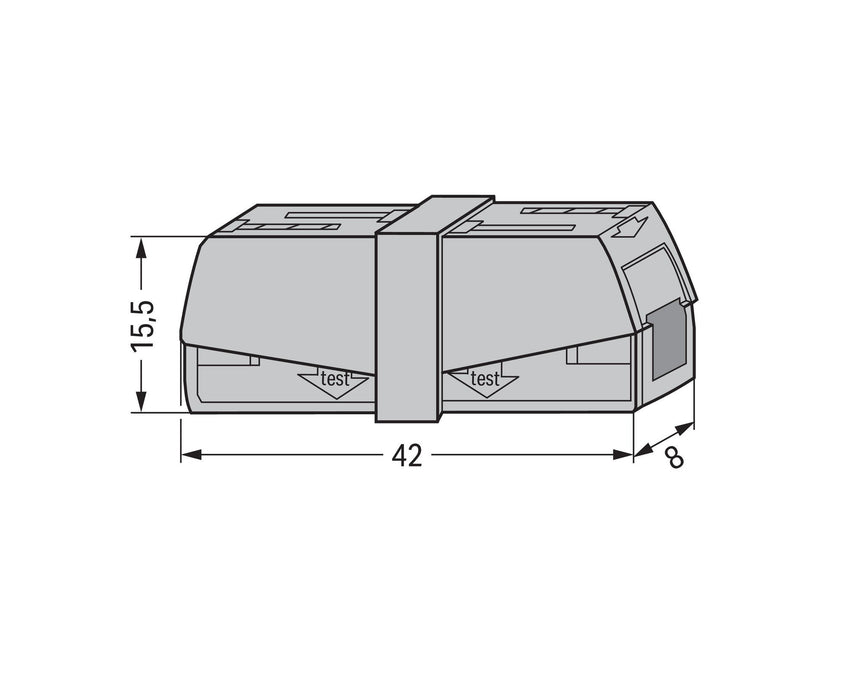

• Compact Design: Measures just 8mm wide, 15.5mm high and 42mm deep.
• Side-Entry Wiring: Convenient conductor arrangement for efficient installation.
• Grey Housing: Easily identifiable connector from the WAGO 224 Series.
• Box Quantity: Supplied as a full box containing 50 connectors.

Technical Specifications

• Manufacturer: WAGO
• Product Code: 224-201
• Product Range: 224 Series
• Product Type: Inline Lighting Service Connector
• Colour: Grey
• Rated Voltage: 400V
• Rated Current: 24A
• Rated Impulse Withstand Voltage: 4kV
• Overvoltage Category: II
• Pollution Degree: 2
• Connection Technology: CAGE CLAMP®
• Connection Method: Push-In
• Number of Clamping Units: 2
• Number of Potentials: 1
• Conductor Size: 0.5–2.5mm²
• Solid Conductor: 0.5–2.5mm²
• Fine-Stranded Conductor: 0.5–2.5mm² (lighting side)
• Conductor Strip Length: 9–11mm
• Wiring Direction: Side Entry
• Width: 8mm
• Height: 15.5mm
• Depth: 42mm
• Weight: 4.6g per Connector
• Fire Load: 0.097MJ
• Maximum Ambient Operating Temperature: +60°C
• Pack Quantity: 50 Connectors

Applications

The WAGO 224-201 lighting service connector is suitable for a variety of electrical wiring applications, including:

• Connecting lighting fixtures to fixed electrical wiring.
• Joining solid installation conductors to flexible lighting conductors.
• Ceiling light and pendant lighting installations.
• Domestic and commercial lighting circuits.
• Electrical maintenance and lighting replacement projects.

Installation Information

For a secure connection, strip the conductor insulation to a length of 9–11mm before insertion. Ensure the conductor type and cross-section are suitable for the relevant connection side and follow WAGO's installation instructions.

Important: The connector may also support specified solid aluminium conductors when prepared and terminated using WAGO Aluminium Contact Paste 249-130 in accordance with the manufacturer's guidance. Reduced current ratings apply to aluminium conductors, including 16A for 2.5mm² aluminium conductors.

Why Choose WAGO 224-201 Connectors?

WAGO 224-201 service connectors combine compact construction, convenient installation and proven spring clamp technology. Their ability to connect different conductor types makes them particularly useful for lighting installation and maintenance work, helping electricians achieve reliable connections without conventional screw terminals.

Supplied in a full box of 50 WAGO 224-201 grey inline lighting service connectors.
