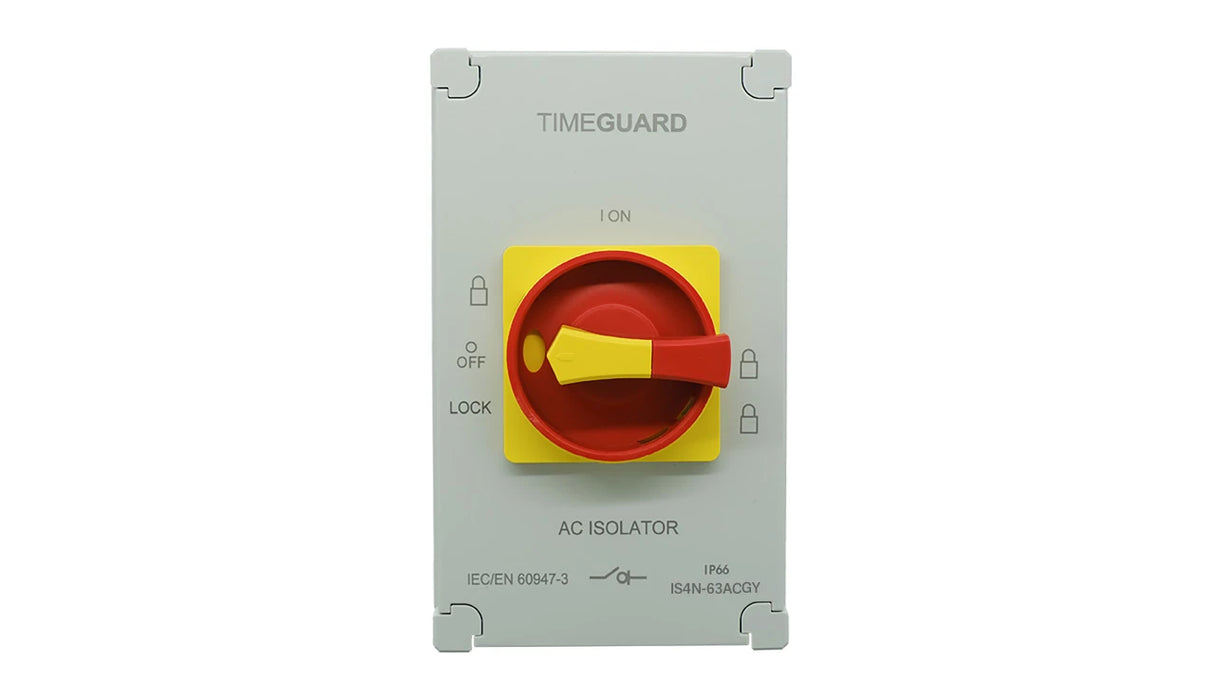

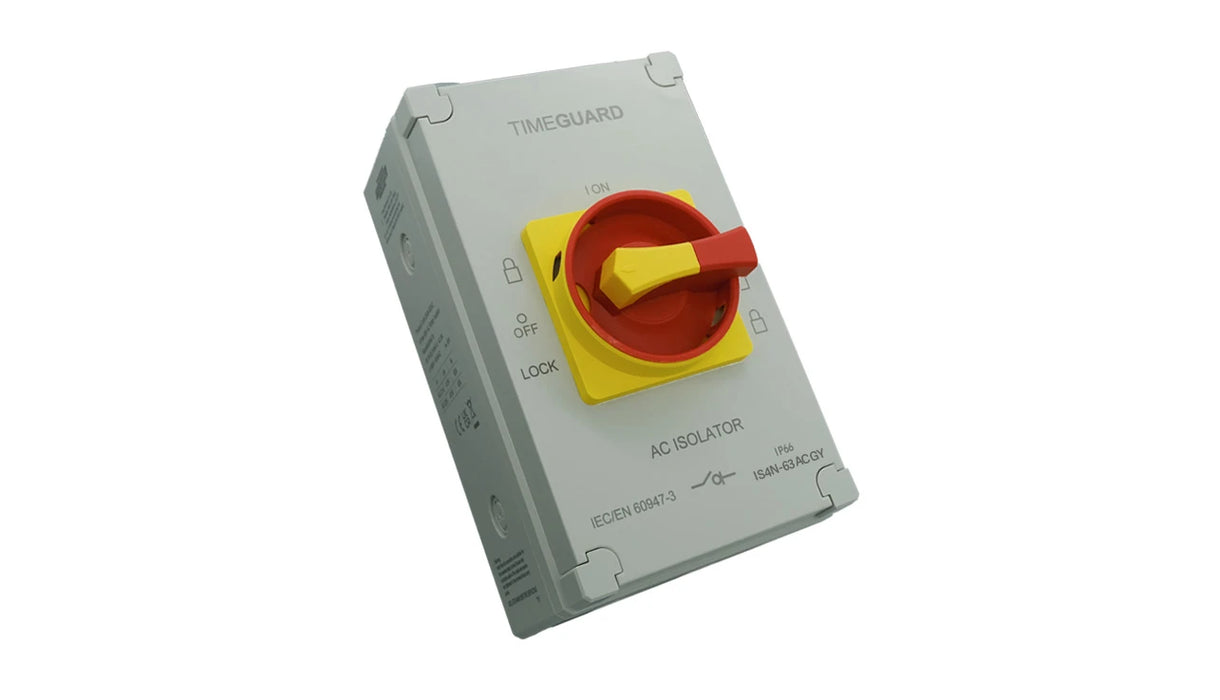

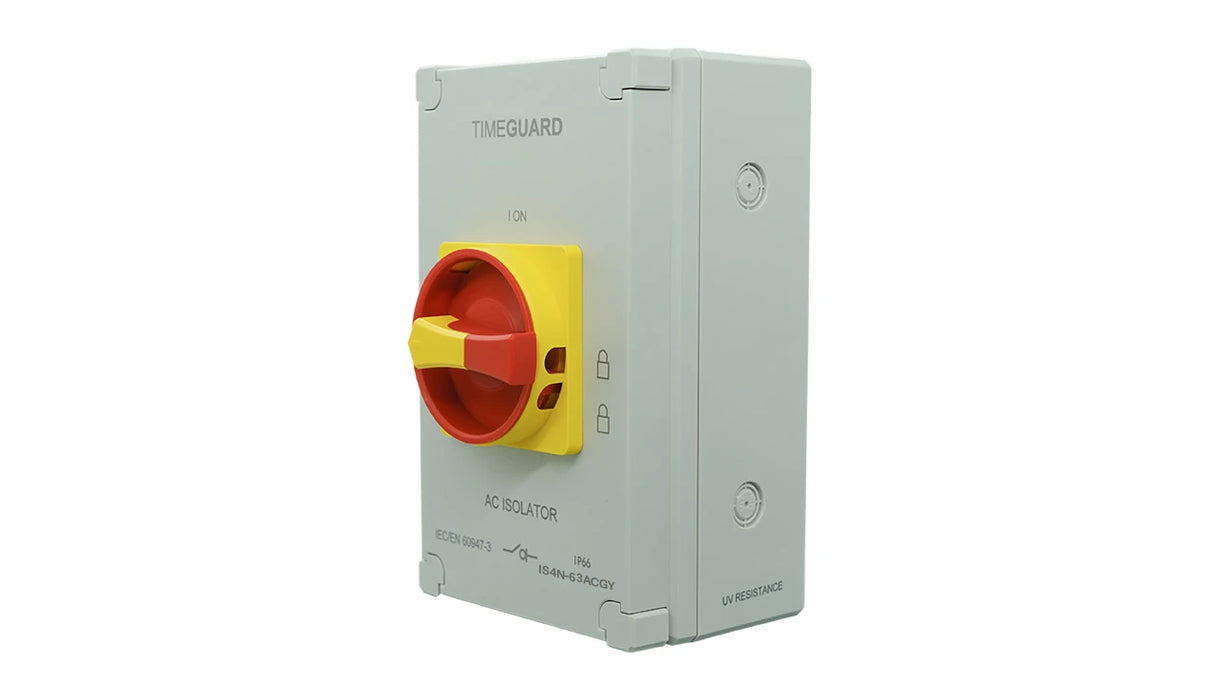

Timeguard IS4N-63ACGY Weathersafe IP66 4 Pole 63A AC Rotary Isolator Switch

This product is suitable replacement for IS4N-63AC.

The Timeguard IS4N-63ACGY Weathersafe IP66 4 Pole 63A AC Rotary Isolator Switch provides a safe and dependable means of isolating AC electrical circuits in commercial, industrial and outdoor environments. Housed within a robust thermoplastic enclosure with an IP66 rating, it delivers excellent protection against dust ingress and powerful water jets, making it ideal for demanding installations.

Designed for fast and straightforward installation, the large enclosure offers generous wiring space and multiple cable entry drill-outs for maximum flexibility. The tamper-resistant, lockable rotary switch enhances safety, while the interlocked front cover can only be removed when the switch is in the OFF position to help prevent accidental access during maintenance.

Key Features

• 4 pole AC rotary isolator switch rated at 63A.
• IP66 weatherproof enclosure for protection against dust and high-pressure water jets.
• Large enclosure allows quick and convenient wiring.
• Durable thermoplastic construction for long service life.
• Multiple top and bottom drill-outs for M20, M25, M32 and M40 cable entries.
• Two side drill-outs for M12 and M16 cable entries on each side.
• Tamper-resistant, lockable rotary switch for improved site safety.
• Interlocked front cover can only be removed when the switch is in the OFF position.
• Removable DIN rail mounted switch assembly simplifies installation.
• Rising clamp terminals accept cable sizes up to 16mm².
• Suitable for indoor and outdoor electrical isolation applications.
• Covered by a 3-year manufacturer's guarantee.

Applications

Suitable for isolating air conditioning systems, heat pumps, motors, machinery, renewable energy installations and other electrical equipment requiring a secure local isolation point in both indoor and outdoor environments.

Technical Specifications

• Brand: Timeguard
• Model: IS4N-63ACGY
• Switch Type: AC Rotary Isolator
• Poles: 4 Pole
• Current Rating: 63A
• Maximum Cable Size: 16mm²
• Ingress Protection: IP66
• Enclosure Material: Tough Thermoplastic
• Guarantee: 3 Years

Downloads

Data Sheet:
Download the Timeguard IS4N-63ACGY Data Sheet

Instruction Manual:
Download the Timeguard IS4N-63ACGY Instruction Manual
