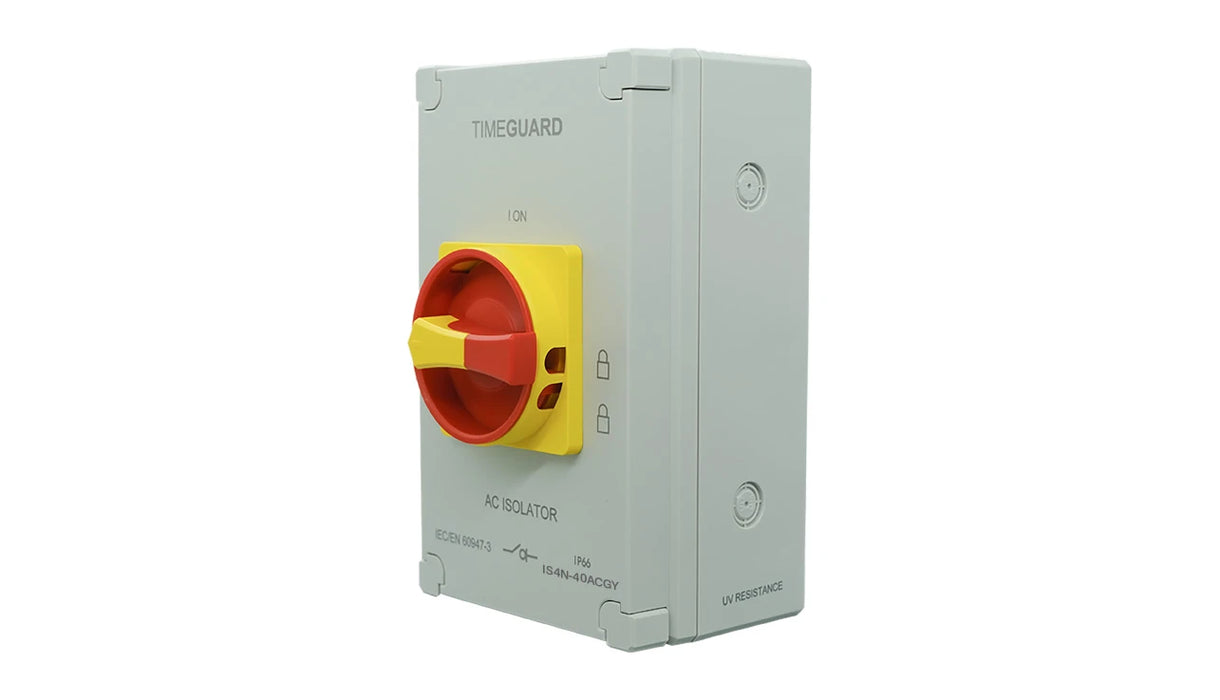

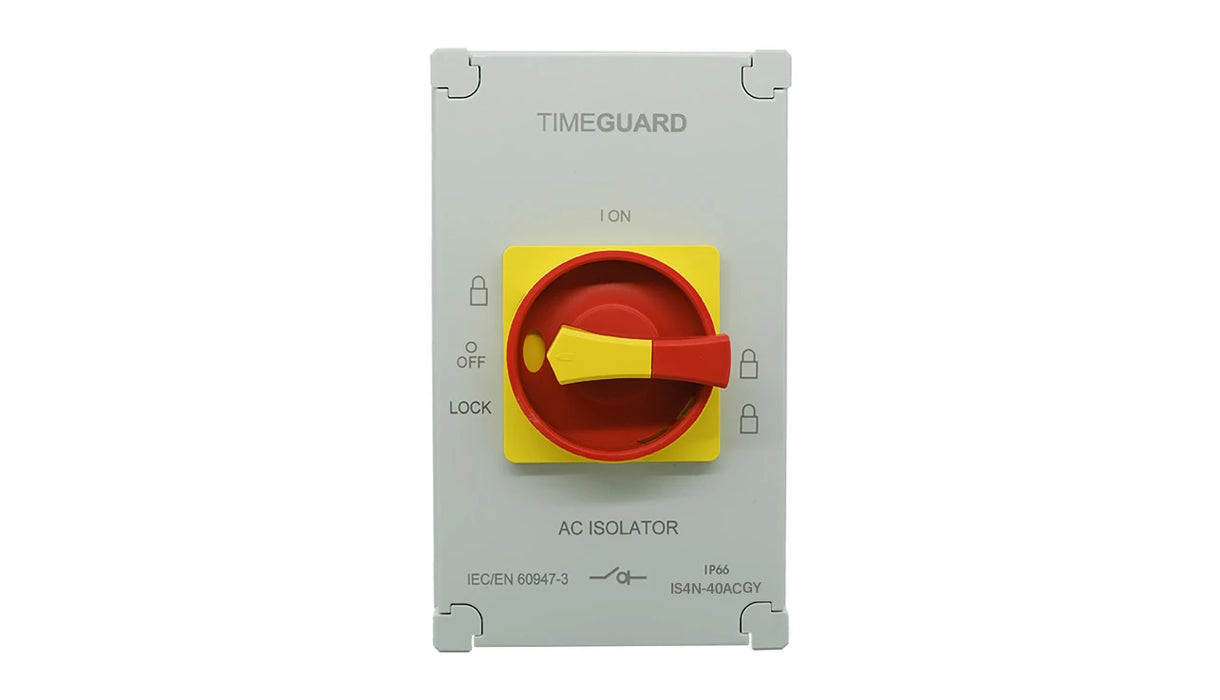

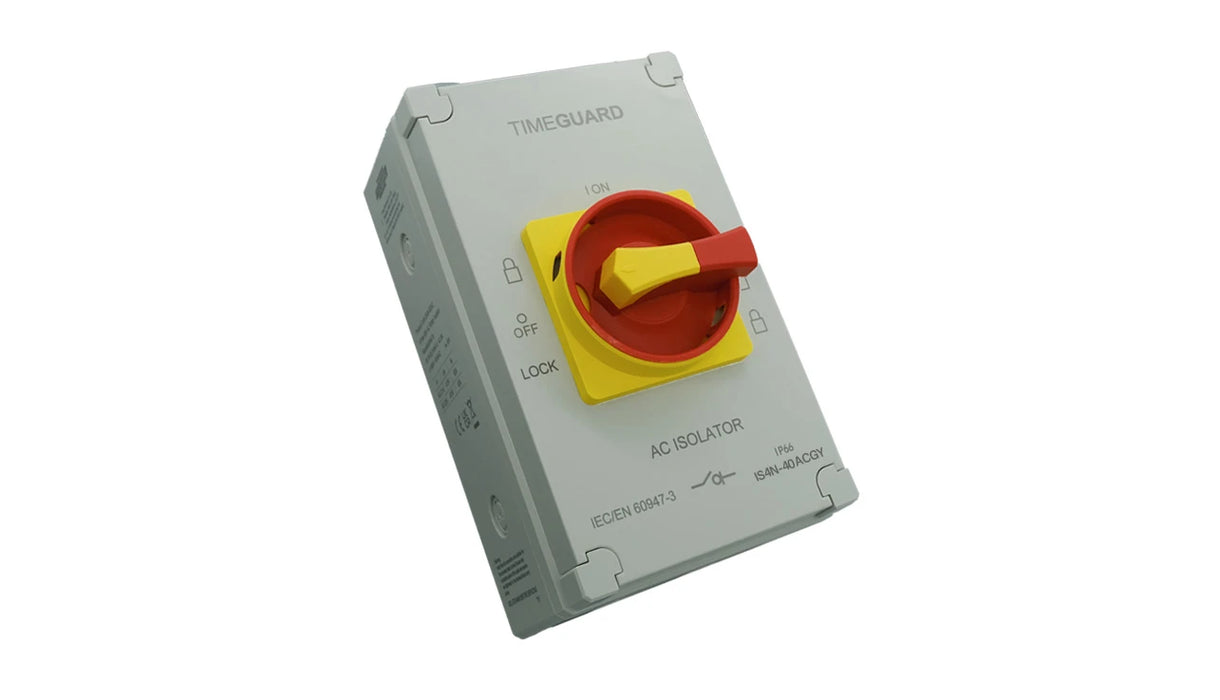

Timeguard IS4N-40ACGY Weathersafe IP66 4 Pole 40A AC Rotary Isolator Switch

This product is suitable replacement for IS4N-40AC.

The Timeguard IS4N-40ACGY Weathersafe IP66 4 Pole 40A AC Rotary Isolator Switch is a durable and reliable solution for safely isolating AC electrical circuits in commercial, industrial and outdoor installations. Designed with a robust thermoplastic enclosure and an IP66 weatherproof rating, it provides outstanding protection against dust ingress and high-pressure water jets, making it ideal for demanding environments.

The spacious enclosure allows for quick and convenient wiring, while multiple cable entry drill-outs offer maximum installation flexibility. A tamper-resistant, lockable rotary switch improves site safety, and the interlocked cover can only be removed when the switch is in the OFF position, helping to prevent accidental access during maintenance.

Key Features

• 4 pole AC rotary isolator switch rated at 40A.
• IP66-rated enclosure for protection against dust and powerful water jets.
• Large enclosure provides ample space for fast and easy wiring.
• Heavy-duty thermoplastic construction for long-lasting durability.
• Multiple top and bottom drill-outs for M20, M25, M32 and M40 cable entries.
• Two side drill-outs for M12 and M16 cable entries on each side.
• Tamper-resistant, lockable rotary switch for enhanced safety.
• Interlocked front cover can only be removed when the switch is in the OFF position.
• DIN rail mounted switch assembly can be removed for easier installation.
• Rising clamp terminals support cable sizes up to 16mm².
• Suitable for indoor and outdoor electrical isolation applications.
• Backed by a 3-year manufacturer's guarantee.

Applications

Ideal for isolating air conditioning units, heat pumps, motors, machinery, renewable energy systems and other electrical equipment requiring a secure local means of isolation in indoor or outdoor environments.

Technical Specifications

• Brand: Timeguard
• Model: IS4N-40ACGY
• Switch Type: AC Rotary Isolator
• Poles: 4 Pole
• Current Rating: 40A
• Maximum Cable Size: 16mm²
• Ingress Protection: IP66
• Enclosure Material: Tough Thermoplastic
• Guarantee: 3 Years
