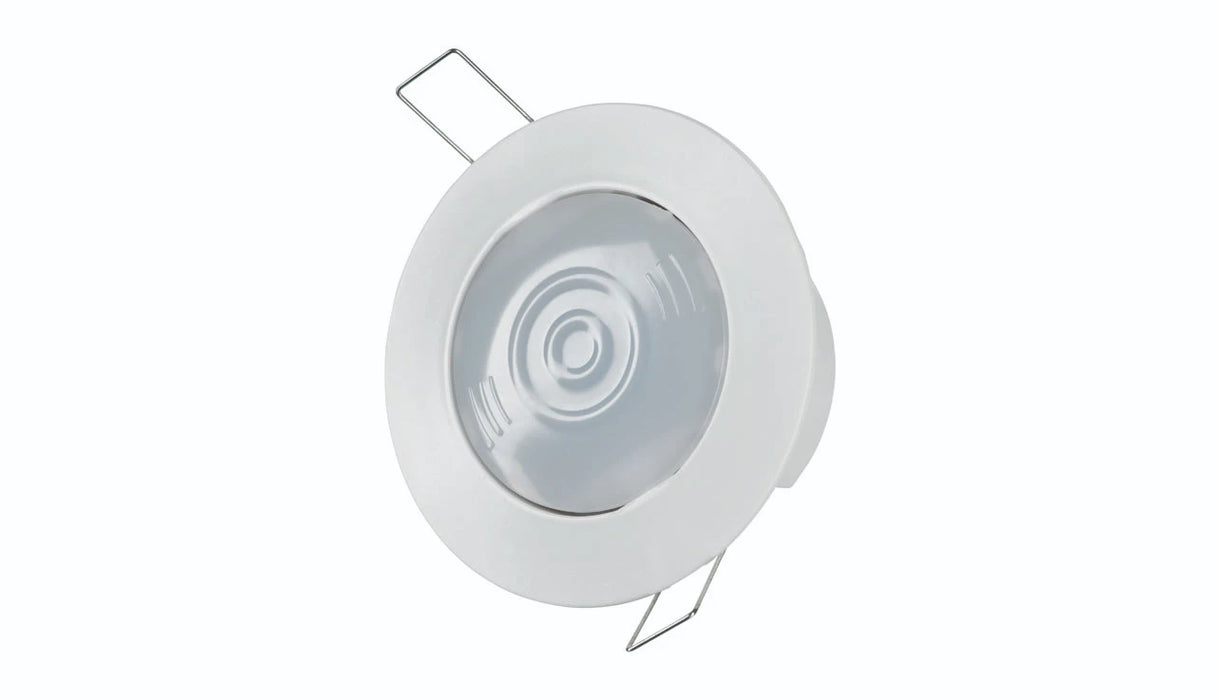

Timeguard HF2R 360° Round Ceiling Microwave Detector – Flush Mount

Name: Timeguard HF2R 360° Round Ceiling Microwave Detector – Flush Mount
Brand: Timeguard
SKU: HF2R
Price: 30.78 GBP
Availability: OutOfStock

Timeguard HF2R 360° Round Ceiling Microwave Detector – Flush Mount

Availability:

SOLD OUT

SKU HF2R

Sold out

£30.78 - £30.78

£25.65

Exc VAT

£30.78

Inc VAT

£30.78 - £30.78

£30.78

£25.65 - £25.65

£30.78

Product Description

Customer Reviews

Timeguard HF2R 360° Round Ceiling Microwave Detector – Flush Mount

Product Description

Ideal for larger spaced detection areas that have an awkward shape or where fine motion detection is required. Can detect subjects through glass.

Key Features

High frequency technology for instant reaction, that can detect around partitions and through glass, doors and walls Enhanced 360° detection zone for optimum coverage Up to 7m for motion at 3m mounting height, adjustable from 30secs to 30minutes, light level adjustable from 5 to 2000 lux Suitable for 1000W resitive,100W LED or 440VA inductive loads Requires a 64mm diameter cut out Not suitable for discharge lighting IP20 environmental rating (internal use only) 3-year guarantee

Specification Colour White Connection type Screwed terminal Degree of protection (IP rating) IP20 Frequency 50 - 60Hz Material Other Max. duty cycle 30min Max. reach frontally 7m Max. reach sideways 7m Max. switching power 1000W Max. switching power LED 100W Min. switch-on time 30s Model Movement sensor Mounting method Flush mounted Optimum mounting height 2.5m Response value luminosity adjustable Yes Scan angle 360° Suitable for ceiling mounting Yes Surface finish Matt Voltage type AC

Data Sheet:

Click Here for Data Sheet

Instruction Manual:

Click Here for Instruction Manual

Product Description

Timeguard HF2R 360° Round Ceiling Microwave Detector – Flush Mount

Product Description

Ideal for larger spaced detection areas that have an awkward shape or where fine motion detection is required. Can detect subjects through glass.

Key Features

High frequency technology for instant reaction, that can detect around partitions and through glass, doors and walls Enhanced 360° detection zone for optimum coverage Up to 7m for motion at 3m mounting height, adjustable from 30secs to 30minutes, light level adjustable from 5 to 2000 lux Suitable for 1000W resitive,100W LED or 440VA inductive loads Requires a 64mm diameter cut out Not suitable for discharge lighting IP20 environmental rating (internal use only) 3-year guarantee

Specification Colour White Connection type Screwed terminal Degree of protection (IP rating) IP20 Frequency 50 - 60Hz Material Other Max. duty cycle 30min Max. reach frontally 7m Max. reach sideways 7m Max. switching power 1000W Max. switching power LED 100W Min. switch-on time 30s Model Movement sensor Mounting method Flush mounted Optimum mounting height 2.5m Response value luminosity adjustable Yes Scan angle 360° Suitable for ceiling mounting Yes Surface finish Matt Voltage type AC

Data Sheet:

Click Here for Data Sheet

Instruction Manual:

Click Here for Instruction Manual
