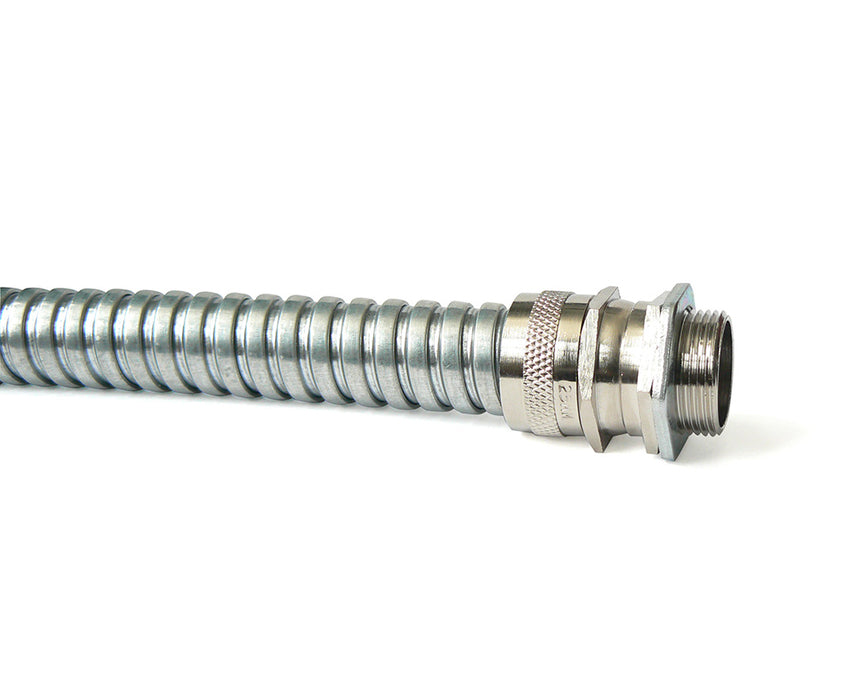

Term Tech PREM20GALV-10M Premflex Bare Galvanized Steel Flexible Conduit M20 Galv Finish - 10m Coil

Product Description

The Term Tech PREM20GALV-10M Premflex® Bare Galvanised Steel Flexible Conduit is a robust M20 conduit designed for demanding electrical installations where reliable cable protection and high mechanical strength are required. Supplied as a 10 metre coil, it provides a flexible solution for routing and protecting electrical cables.

Manufactured from galvanised steel, this flexible conduit combines high mechanical strength with a low risk of fire hazard. Its wide continuous operating temperature range of -100°C to +300°C makes it suitable for applications exposed to particularly high or low temperatures.

Manufactured to BS EN 61386, the PREM20GALV-10M provides IP40 ingress protection when correctly fitted with suitable glands. The conduit is supplied as a coil only, allowing compatible fixed or swivel glands to be selected separately according to the installation requirements.

Key Features

• M20 bare galvanised steel flexible conduit
• Supplied as a 10 metre coil
• Strong and flexible construction for cable protection
• High mechanical strength for demanding installations
• Low risk of fire hazard
• Wide operating temperature range from -100°C to +300°C
• IP40 ingress protection when fitted with suitable glands
• Manufactured to BS EN 61386
• Coil only - glands are not included

Specification

• Product Code: PREM20GALV-10M
• Range: Premflex®
• Conduit Type: Bare galvanised steel flexible conduit
• Nominal Size: M20
• Coil Length: 10m
• Ingress Protection: IP40 when fitted with suitable glands
• Continuous Operating Temperature: -100°C to +300°C
• Glands: Not included
• Standard: BS EN 61386

Dimensions

• Internal Diameter: 17.5mm
• External Diameter: 21.5mm

Material

• Material: Galvanised steel
• Finish: Galvanised
