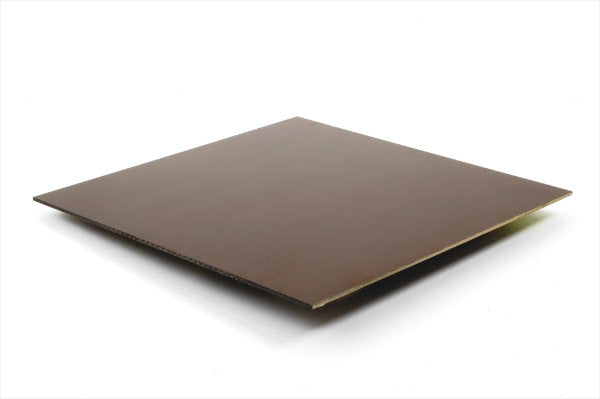

Term Tech PAXOLIN600X600 Phenolic Paper Laminate Paxolin Sheet 600mm x 600mm x 6mm

The Term Tech PAXOLIN600X600 Phenolic Paper Laminate Sheet is a durable and cost-effective electrical insulation board designed for low-voltage electrical and engineering applications. Manufactured from laminated phenolic paper, this rigid yet lightweight Paxolin sheet provides excellent mechanical strength alongside dependable electrical insulating properties.

Measuring 600mm x 600mm x 6mm, it is ideal for fabricating insulating panels, mounting plates, switchgear components and general electrical applications where reliable insulation and structural stability are required. Manufactured to recognised British and European standards, this Paxolin sheet offers consistent performance and long-term durability.

Key Features

• High-quality laminated phenolic paper insulation sheet
• Dimensions: 600mm x 600mm x 6mm
• Lightweight construction with a density of 1.35g/cm³
• Continuous operating temperature up to +90°C
• Short-term temperature resistance up to +120°C
• Cross breaking strength of 175MPa (tested at 23°C)
• Water absorption: 100mg/cm³
• Insulation resistance after water immersion: 5 × 10M? (tested at 23°C)
• Suitable for low-voltage electrical insulation applications
• Manufactured to BS2572 Type P1 and BS EN 60893 Type 3-4-PFCP201

Typical Applications

• Electrical insulation panels
• Switchgear and control panel construction
• Mounting and backing boards
• Transformer and electrical equipment insulation
• General engineering and fabrication projects

Technical Specifications

• Product Code: PAXOLIN600X600
• Material: Laminated Phenolic Paper (Paxolin)
• Dimensions: 600mm × 600mm × 6mm
• Density: 1.35g/cm³
• Continuous Operating Temperature: +90°C
• Short-Term Temperature: +120°C
• Cross Breaking Strength: 175MPa (23°C)
• Water Absorption: 100mg/cm³
• Insulation Resistance: 5 × 10M? after water immersion (23°C)
• Standards: BS2572 Type P1 & BS EN 60893 Type 3-4-PFCP201

Data Sheet:

Download the Term Tech PAXOLIN600X600 Data Sheet
