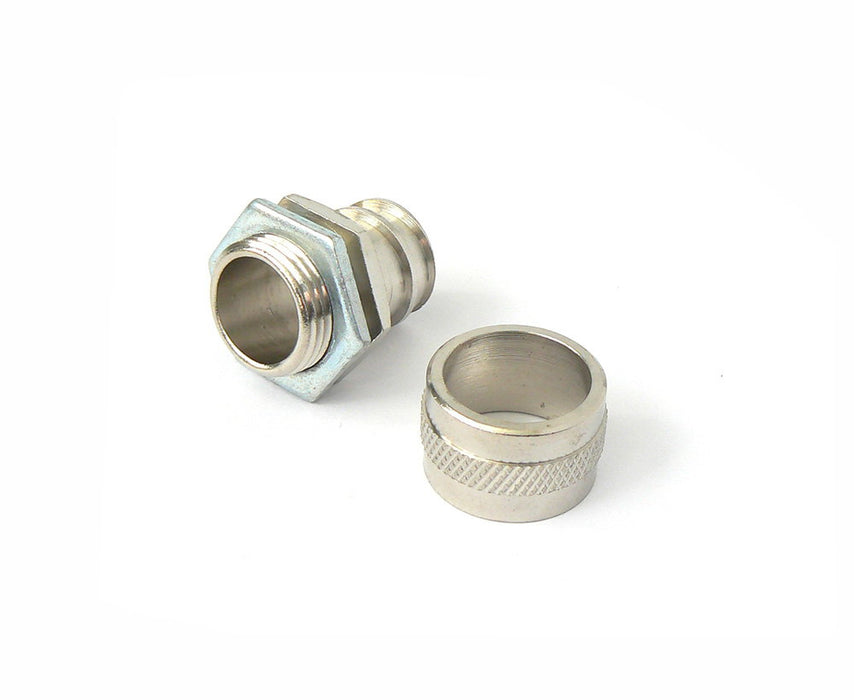

Term Tech M32-FIXED Premflex Steel Fixed Gland for Bare/Coated Galvanized Conduit with Locknut M32 - Pack of 1

Product Description

The Term Tech M32-FIXED Premflex® Fixed Conduit Gland is designed to provide a secure and reliable connection for M32 bare galvanised, PVC coated galvanised and LSZH coated galvanised flexible conduit.

Manufactured as a two-part fitting comprising a shell and externally threaded body, the gland provides a strong and dependable hold on compatible flexible conduit. It is supplied complete with a galvanised steel locknut for convenient installation and provides IP54 ingress protection when correctly fitted with suitable conduit.

Manufactured to BS EN 61386, the M32-FIXED features a durable nickel-plated brass gland construction and is suitable for commercial, industrial and general electrical installations requiring a robust fixed conduit termination.

Key Features

• M32 fixed gland for flexible electrical conduit
• Suitable for bare and coated galvanised Premflex® conduit
• Compatible with PVC and LSZH coated galvanised conduit
• Two-part shell and body construction for a secure connection
• Nickel-plated brass gland for durability
• Supplied complete with galvanised steel locknut
• IP54 ingress protection when fitted with suitable conduit
• Manufactured to BS EN 61386
• Suitable for commercial, industrial and general electrical installations

Specification

• Product Code: M32-FIXED
• Range: Premflex®
• Gland Type: Fixed
• Nominal Size: M32
• Thread Length: 10mm
• Ingress Protection: IP54 when fitted with suitable conduit
• Accessories: Supplied complete with locknut
• Standard: BS EN 61386
• Pack Quantity: 1

Dimensions

• B: 26mm
• L: 37mm
• A/F: 38mm
• TL: 10mm

Material

• Gland Material: Brass
• Gland Plating: Nickel
• Locknut Material: Galvanised steel

Data Sheet

Click Here for Data Sheet
