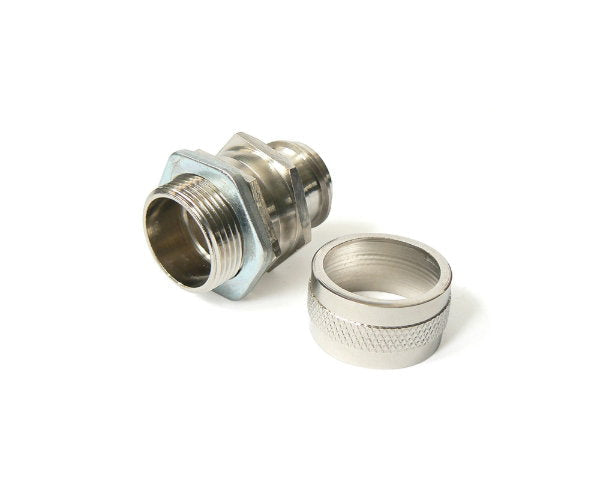

Term Tech M16-SWIVAL Premflex Steel Swivel Gland for Bare/Coated Galvanized Conduit with Locknut M16 - Pack of 1

Product Description

The Term Tech M16-SWIVAL Premflex® Swivel Conduit Gland is designed to provide a secure and flexible connection for M16 bare galvanised, PVC coated galvanised and LSZH coated galvanised flexible conduit.

Manufactured as a two-part fitting, the gland features a shell and an externally threaded body that swivels around the main body. This swivel design provides greater flexibility during installation while maintaining a secure and reliable connection to compatible flexible conduit. A galvanised steel locknut is included for convenient installation.

Manufactured to BS EN 61386, the M16-SWIVAL features a durable nickel-plated brass gland construction and provides IP54 ingress protection when correctly fitted with suitable conduit. It is ideal for commercial, industrial and general electrical installations where a flexible conduit termination is required.

Key Features

• M16 swivel gland for flexible electrical conduit
• Suitable for bare and coated galvanised Premflex® conduit
• Compatible with PVC and LSZH coated galvanised conduit
• Swivelling externally threaded body for greater installation flexibility
• Two-part construction provides a secure conduit connection
• Durable nickel-plated brass gland
• Supplied complete with galvanised steel locknut
• IP54 ingress protection when fitted with suitable conduit
• Manufactured to BS EN 61386
• Suitable for commercial, industrial and general electrical installations

Specification

• Product Code: M16-SWIVAL
• Range: Premflex®
• Gland Type: Swivel
• Nominal Size: M16
• Thread Length: 10mm
• Ingress Protection: IP54 when fitted with suitable conduit
• Accessories: Supplied complete with locknut
• Standard: BS EN 61386
• Pack Quantity: 1

Material

• Gland Material: Brass
• Gland Plating: Nickel
• Locknut Material: Galvanised steel

Data Sheet

Click Here for Data Sheet
