Schneider Electric SEE106B03 iKQ 6A 1P+N B Curve 30mA Type A RCBO

Schneider Electric SEE106B03 iKQ 6A 1P+N B Curve 30mA Type A RCBO

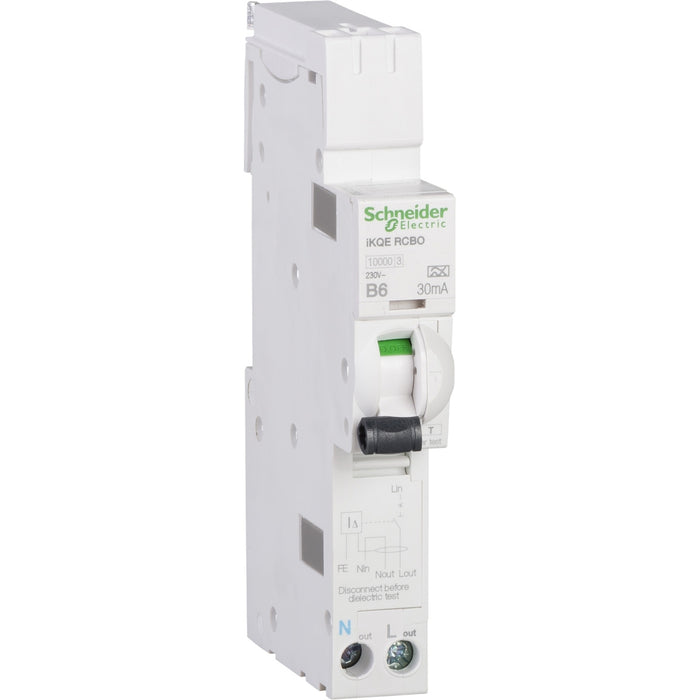

This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). Other RCBO options available Fast installation with click-in busbar The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard. Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. This product is compliant with IEC 61009-1 and IEC 61009-2-2 standards. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 150VAC to 230VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 2. The product color is white (RAL9003). The dimensions are (W) 18mm x (H) 93mm x (D) 70mm. The weight is 136g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -25^oC to 55^oC. The storage temperature is from -30^oC to 70^oC.

• circuit breaker application: Distribution
• Range: Acti9
• Product name: Acti9 iC60 RCBO
• Product or component type: Residual current breaker with overcurrent protection (RCBO)
• device short name: IC60N RCBO
• Poles description: 1P + Ns
• rated current: 6 A at 30 ^oC
• curve code: B
• Earth-leakage sensitivity: 30 mA
• Breaking capacity: 10000 A Icn at 150...230 V AC 50 Hz
Complementary:

• Neutral position: Left
• Number of protected poles: 1
• Network frequency: 50 Hz
• network type: AC
• Trip unit technology: Thermal-magnetic
• rated operational voltage: 150...230 V AC 50 Hz
• Residual current tripping technology: Voltage dependent
• earth-leakage protection time delay: Instantaneous
• earth-leakage protection class: Type A
• rated short-time withstand current: Icw: 250 A during 8/20 µs impulse withstand
• electrical insulation class: Class III
• Limitation class: 3
• rated insulation voltage: 400 V AC 50 Hz
• rated impulse withstand voltage: 4 kV
• Surge current: 250 A
• Suitability for isolation: Yes
• Contact position indicator: Yes
• control type: Toggle
• Local signalling: ON/OFF indication
• Mounting mode: Clip-on
• mounting support: DIN rail
• Comb busbar and distribution block compatibility: YES
• 9 mm pitches: 2
• Height: 117 mm
• Width: 18 mm
• Depth: 70 mm
• Net weight: 136 g
• Colour: White
• Mechanical durability: 20000 cycles
• Electrical durability: 10000 cycles
• Provision for padlocking: Padlockable
• Locking options description: By padlocks
• Connections - terminals:
  • Screw clamp terminal (upstream) 1…16 mm² rigid
  • Screw clamp terminal (upstream) 1…16 mm² flexible
  • Screw clamp terminal (downstream) 1…10 mm² rigid
  • Screw clamp terminal (downstream) 1…10 mm² flexible
• Wire stripping length:
  • 14 mm for upstream connection
  • 11 mm for downstream connection
• Tightening torque:
  • 2 N.m upstream
  • 2 N.m downstream
• earth-leakage protection: Integrated
• Targeted country: UK
Environment:

• Standards:
  • IEC 61009-1
  • IEC 61009-2-2
• Targeted country: UK
• product certifications: SNI
• IP degree of protection: IP20
• Tropicalisation: 2
• Relative humidity: 95 % at 55 ^oC
• Ambient air temperature for operation: -25…55 ^oC
• Ambient air temperature for storage: -30…70 ^oC
