Product Description

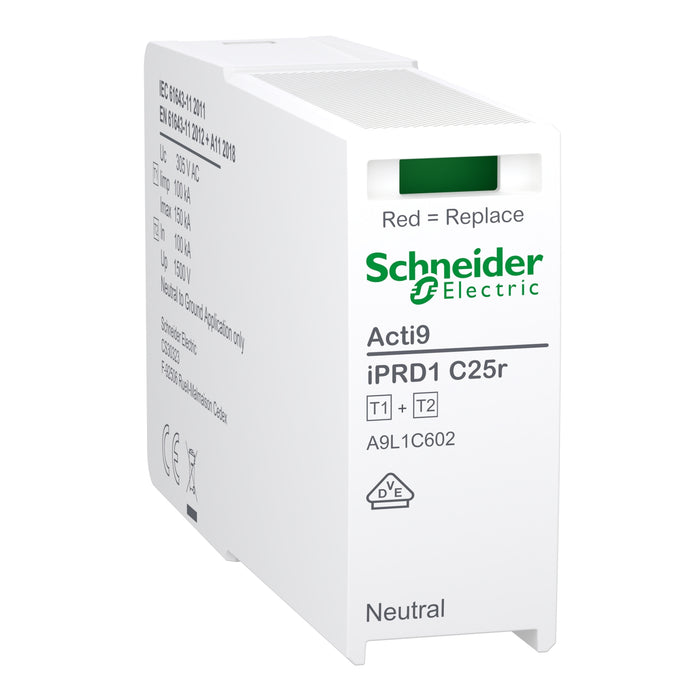

The Schneider Electric A9L1C602 is a genuine replacement cartridge designed for use with Acti9 iPRD1 C25r and iPRD1 F25r surge protective devices in 3P and 3P+N configurations. It provides high-performance Type 1+2 surge protection in common mode by connecting neutral to earth (N-PE).

This pluggable cartridge allows fast, tool-free replacement, helping to maintain protection levels while minimising downtime. A clear front-facing visual indicator displays green during normal operation and red when the cartridge requires replacement, ensuring straightforward inspection and maintenance.

Designed for demanding industrial and commercial environments, the A9L1C602 delivers exceptionally high discharge capacity for lightning impulse protection and is compatible with TT and TN-S earthing systems.

Key Features

• Replacement N-PE cartridge for Acti9 iPRD1 C25r and F25r SPDs
• Suitable for 3P and 3P+N surge protective devices
• Type 1 + 2 surge protection in common mode (N-PE)
• Very high discharge capacity up to 150kA
• Pluggable design for quick and easy replacement
• Clear green/red visual status indication
• Compatible with TT and TN-S earthing systems

Technical Specification

• Range: Acti9
• Product Type: Surge arrester cartridge
• Compatibility: Acti9 iPRD1 C25r & iPRD1 F25r (3P / 3P+N)
• Surge Arrester Class: Type 1 + 2
• Surge Technology: Gas Discharge Tube (GDT)
• Rated Operational Voltage (Ue): 240V AC, 50/60Hz
• Maximum Continuous Operating Voltage (Uc): 305V N-PE
• Nominal Discharge Current (In): 100kA (N-PE)
• Maximum Discharge Current (Imax): 150kA (N-PE)
• Impulse Current (Iimp): 100kA (50 A·s)
• Voltage Protection Level (Up): <1.5kV
• Mounting: Plug-in cartridge
• IP Rating: IP20
• Operating Temperature: –40°C to +85°C
• Dimensions (H × W × D): 45 × 18 × 73.5 mm
• Weight: 115 g
• Colour: White (RAL 9003)
