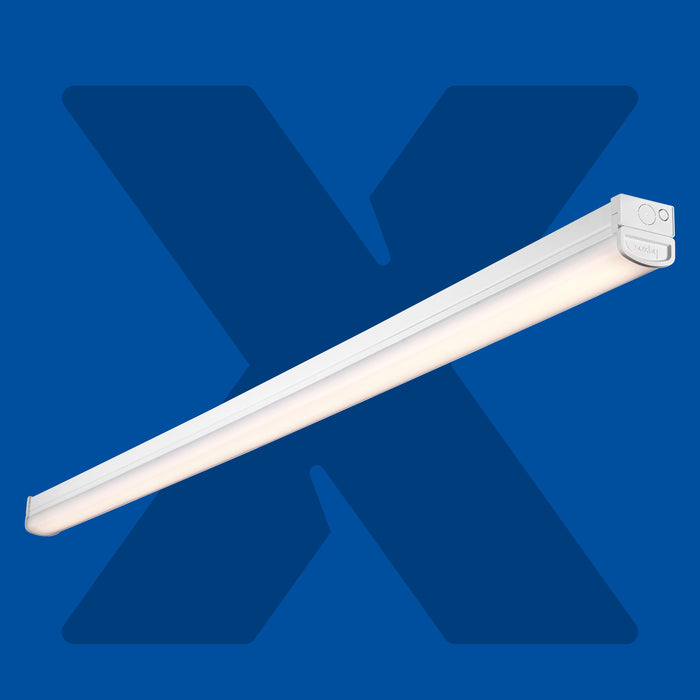

Saxby 122344 LinX20 30W/40W/51W/60W 6ft CCT IP20 LED Batten Emergency 3000K/4000K/6000K

IN STOCK ITEM: Dispatch in 2–3 Days

The Saxby LinX20 122344 Emergency LED Batten is a powerful and adaptable lighting solution designed for commercial, industrial and public-sector environments. Combining selectable wattage, adjustable colour temperature and integrated emergency lighting functionality, this 6ft LED batten provides maximum flexibility for a wide range of installations.

Select from four power settings of 30W, 40W, 51W and 60W and three colour temperatures of 3000K Warm White, 4000K Cool White and 6000K Daylight to create the ideal lighting environment. Delivering up to 9000 lumens with an impressive efficacy of up to 150 lumens per watt, the LinX20 offers exceptional performance while helping to minimise energy consumption.

Designed as an emergency maintained and non-maintained fitting, this LED batten provides reliable illumination during mains power failures, making it suitable for escape routes, corridors, warehouses, offices and other safety-critical applications. The robust polycarbonate and steel construction, combined with an opal diffuser, ensures excellent durability and uniform light distribution.

Key Features

• 6ft LED batten with integrated emergency lighting function

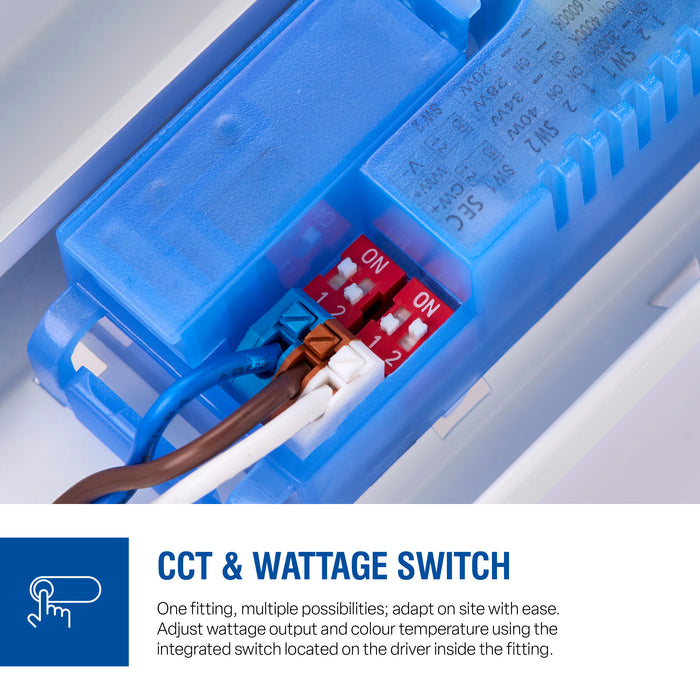

• Selectable wattages: 30W, 40W, 51W and 60W

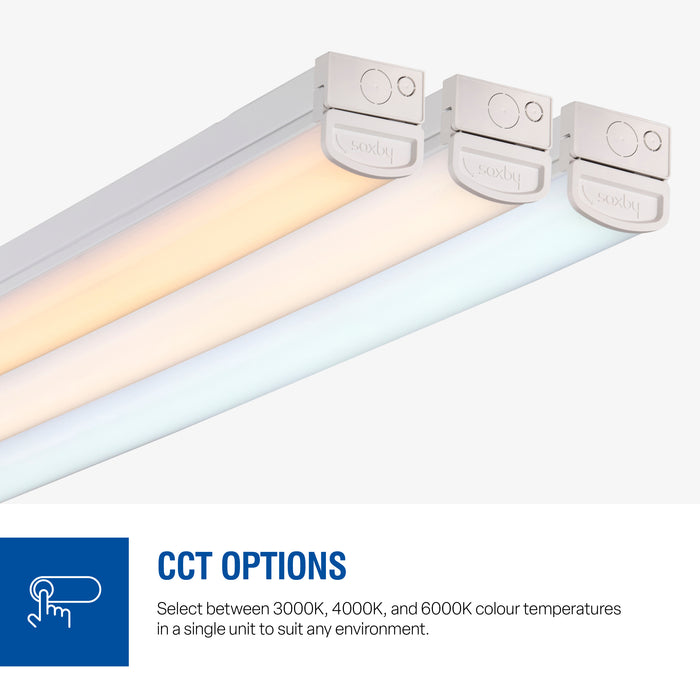

• CCT selectable: 3000K, 4000K and 6000K
• Dimmable operation for flexible lighting control

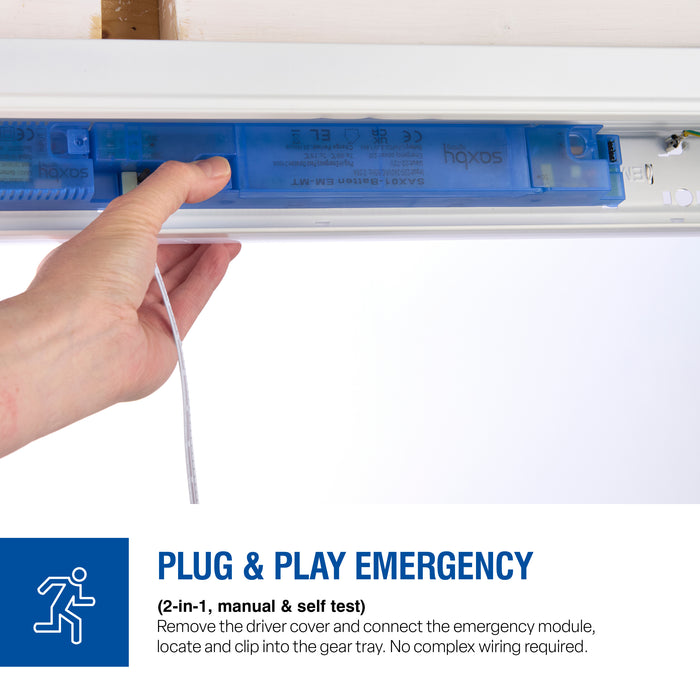

• Emergency maintained and non-maintained functionality
• Produces up to 9000 lumens output
• High efficacy of up to 150 lm/W
• Integrated LED driver included
• Opal polycarbonate diffuser for smooth, even illumination
• Constructed from durable polycarbonate and steel

Technical Specifications

• Product Code: 122344
• Range: LinX20
• Wattage: 30W / 40W / 51W / 60W Selectable
• Light Source: 60W LED Module (SMD 2835)
• Colour Temperature: 3000K / 4000K / 6000K Selectable
• Maximum Light Output: 9000 Lumens
• Efficiency: Up to 150 lm/W
• Dimmable: Yes
• Emergency Function: Maintained & Non-Maintained
• IP Rating: IP20
• Construction: Polycarbonate & Steel
• Finish: Gloss White with Opal Diffuser
• Length: 1800mm
• Projection: 69mm
• Width: 67mm
• Class: Class 1

Ideal Applications

The Saxby LinX20 6ft Emergency LED Batten is ideal for warehouses, workshops, factories, offices, schools, healthcare facilities, retail premises, corridors and public buildings where dependable general and emergency lighting is essential.

Data Sheet:

Download the Saxby 122344 Data Sheet
