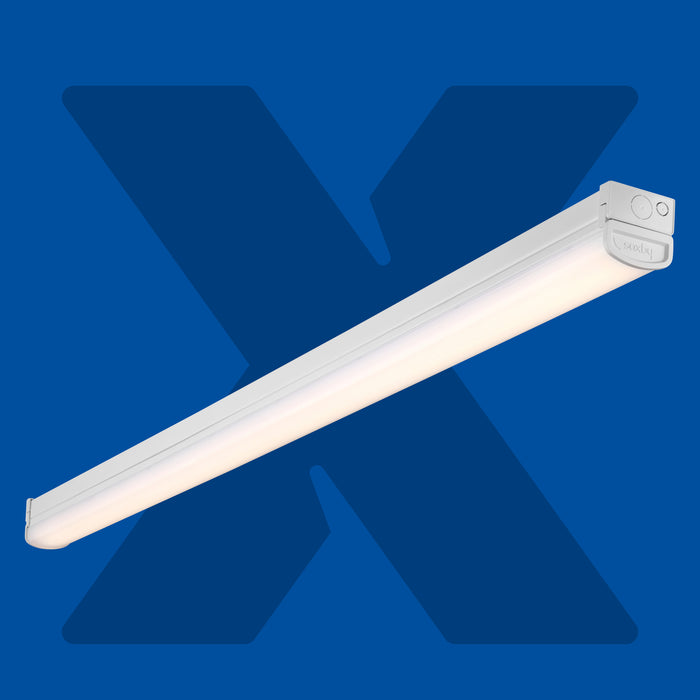

Saxby 122343 LinX20 27W/36W/46W/54W 5ft CCT IP20 LED Batten Emergency 3000K/4000K/6000K

IN STOCK ITEM: Dispatch in 2–3 Days

The Saxby LinX20 122343 Emergency LED Batten combines powerful illumination, flexible lighting control and integrated emergency functionality in one versatile 5ft fitting. Designed for commercial, educational and public-sector environments, it offers selectable wattage and colour temperature options to suit a wide range of installation requirements.

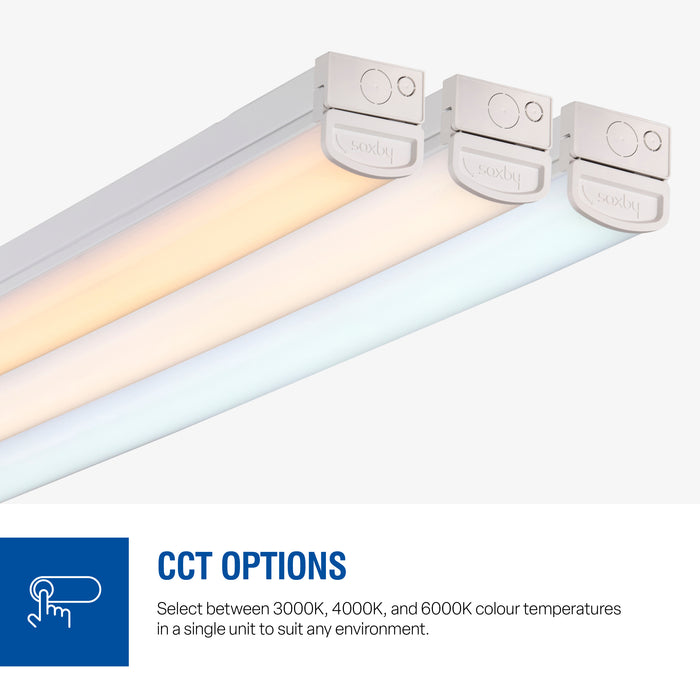

Choose from four power outputs of 27W, 36W, 46W or 54W, along with selectable colour temperatures of 3000K Warm White, 4000K Cool White and 6000K Daylight. Delivering up to 8000 lumens and achieving an efficacy of up to 148 lumens per watt, this LED batten provides excellent light output while helping to reduce energy costs.

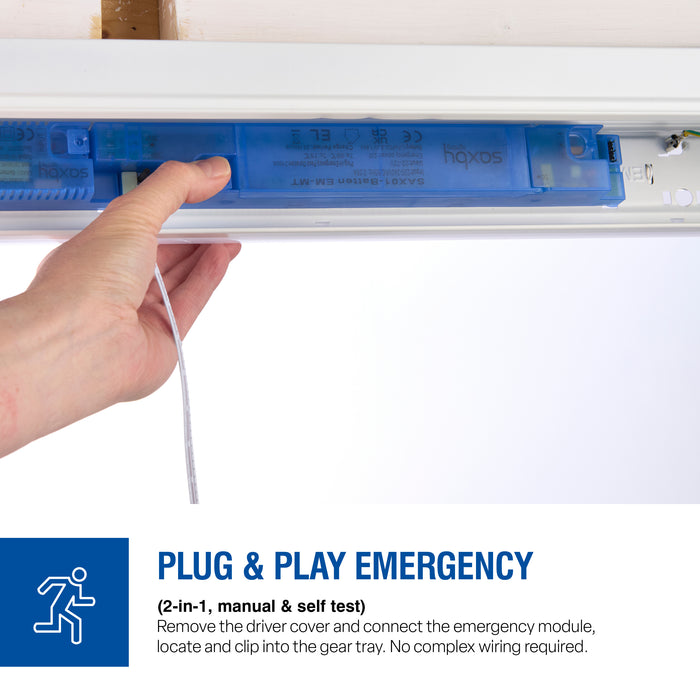

Featuring maintained and non-maintained emergency operation, the LinX20 ensures reliable illumination during power outages, making it suitable for escape routes, corridors and safety-critical environments. The durable polycarbonate and steel construction with opal diffuser provides uniform light distribution and long-term reliability.

Key Features

• 5ft LED batten with integrated emergency lighting function
• Selectable wattages: 27W, 36W, 46W and 54W

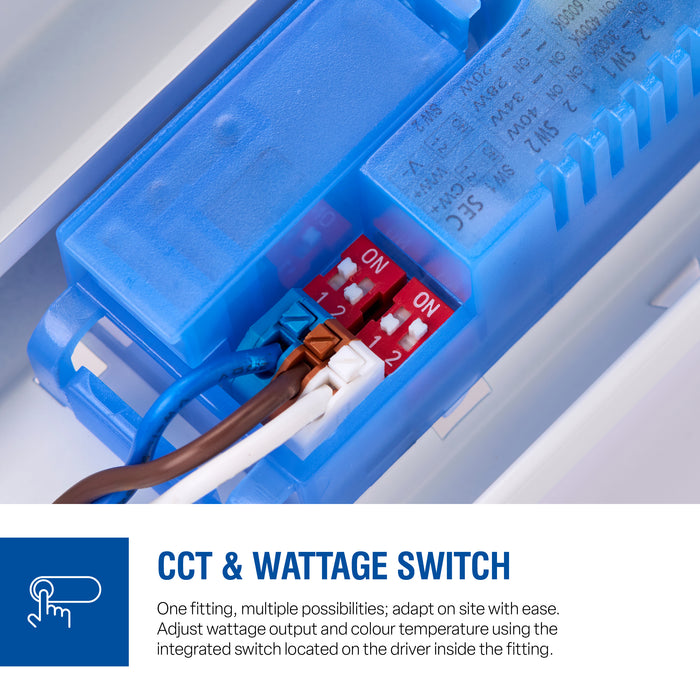

• CCT selectable: 3000K, 4000K and 6000K
• Dimmable operation for flexible lighting control
• Emergency maintained and non-maintained functionality
• Produces up to 8000 lumens output
• High efficacy of up to 148 lm/W
• Integrated LED driver supplied
• Opal polycarbonate diffuser for even light distribution
• Constructed from durable polycarbonate and steel

Technical Specifications

• Product Code: 122343
• Range: LinX20
• Wattage: 27W / 36W / 46W / 54W Selectable
• Light Source: 54W LED Module (SMD 2835)
• Colour Temperature: 3000K / 4000K / 6000K Selectable
• Maximum Light Output: 8000 Lumens
• Efficiency: Up to 148 lm/W
• Dimmable: Yes
• Emergency Function: Maintained & Non-Maintained
• IP Rating: IP20
• Construction: Polycarbonate & Steel
• Finish: Gloss White with Opal Diffuser
• Length: 1500mm
• Projection: 69mm
• Width: 67mm
• Class: Class 1

Ideal Applications

Perfect for offices, schools, healthcare facilities, retail premises, corridors, public buildings and commercial environments requiring efficient general lighting combined with dependable emergency illumination.

Data Sheet:

Download the Saxby 122343 Data Sheet
