Saxby 122342 LinX20 21W/27.5W/33W/40W 4ft CCT IP20 LED Batten Emergency 3000K/4000K/6000K

IN STOCK ITEM: Dispatch in 2–3 Days

The Saxby LinX20 122342 Emergency LED Batten combines energy-efficient performance with integrated emergency lighting functionality, making it ideal for commercial, educational and public buildings where emergency illumination is required. Featuring both selectable wattage and adjustable colour temperature, this versatile 4ft batten can be tailored to suit a wide range of applications.

Choose from four power settings of 21W, 27.5W, 33W and 40W and three colour temperatures of 3000K Warm White, 4000K Cool White and 6000K Daylight. Delivering up to 6000 lumens with an efficacy of up to 150 lumens per watt, the LinX20 provides exceptional illumination while helping to reduce energy consumption.

Supplied as an emergency maintained and non-maintained fitting, this LED batten offers added safety and compliance for escape routes, corridors, offices and public spaces. The robust polycarbonate and steel construction, combined with an opal diffuser, ensures reliable performance and uniform light distribution.

Key Features

• 4ft LED batten with integrated emergency functionality

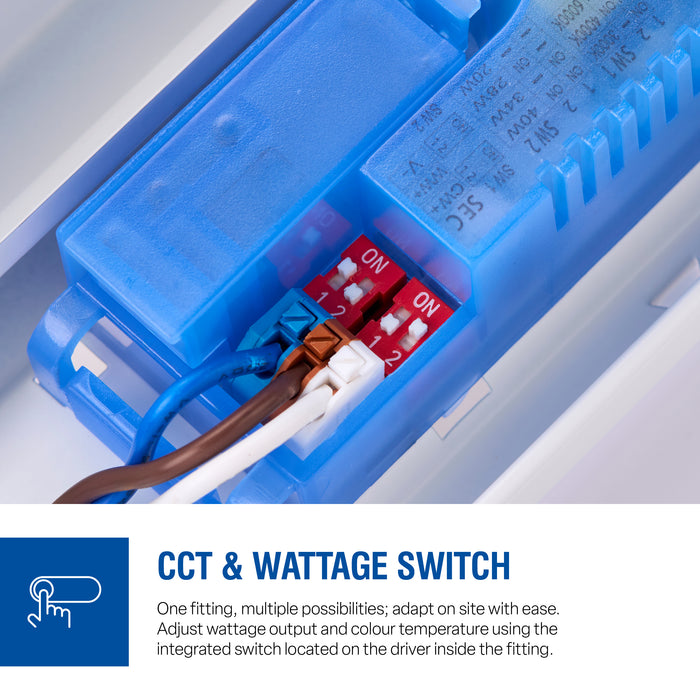

• Selectable wattages: 21W, 27.5W, 33W and 40W

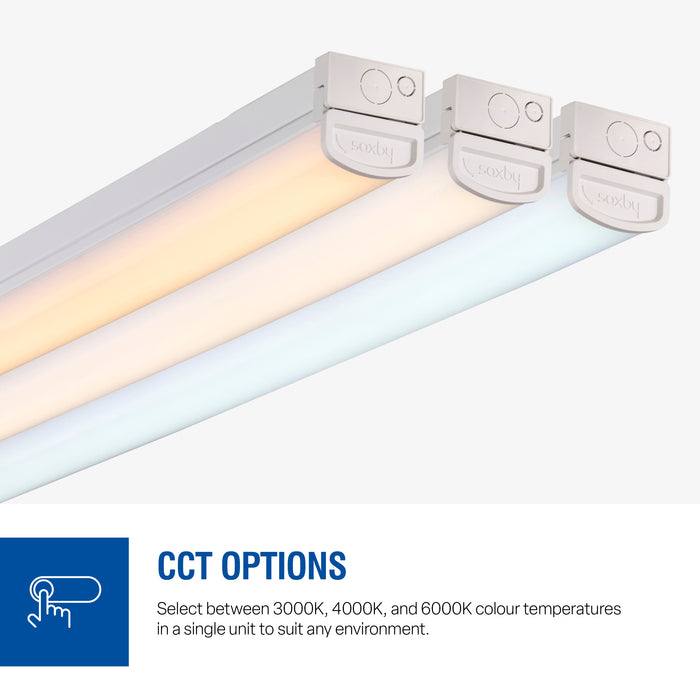

• CCT selectable: 3000K, 4000K and 6000K
• Dimmable operation for enhanced lighting control

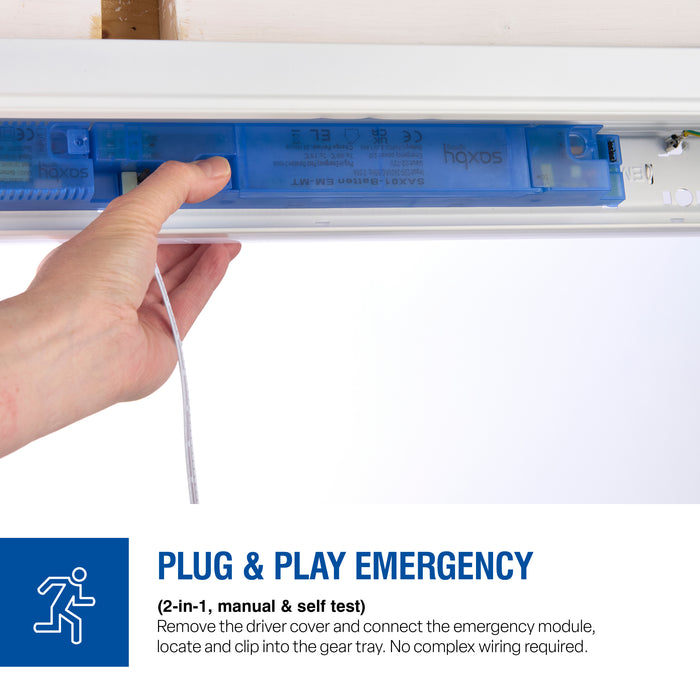

• Emergency maintained and non-maintained operation
• Produces up to 6000 lumens output
• High efficiency of up to 150 lm/W
• Integrated LED driver included
• Opal polycarbonate diffuser for smooth, uniform illumination
• Constructed from durable polycarbonate and steel

Technical Specifications

• Product Code: 122342
• Range: LinX20
• Wattage: 21W / 27.5W / 33W / 40W Selectable
• Light Source: 40W LED Module (SMD 2835)
• Colour Temperature: 3000K / 4000K / 6000K Selectable
• Maximum Light Output: 6000 Lumens
• Efficiency: Up to 150 lm/W
• Dimmable: Yes
• Emergency Function: Maintained & Non-Maintained
• IP Rating: IP20
• Construction: Polycarbonate & Steel
• Finish: Gloss White with Opal Diffuser
• Length: 1200mm
• Projection: 69mm
• Width: 67mm
• Class: Class 1

Ideal Applications

The Saxby LinX20 Emergency LED Batten is ideal for offices, schools, corridors, healthcare facilities, retail premises, public buildings and commercial environments where both general and emergency lighting are required.

Data Sheet:

Download the Saxby 122342 Data Sheet
