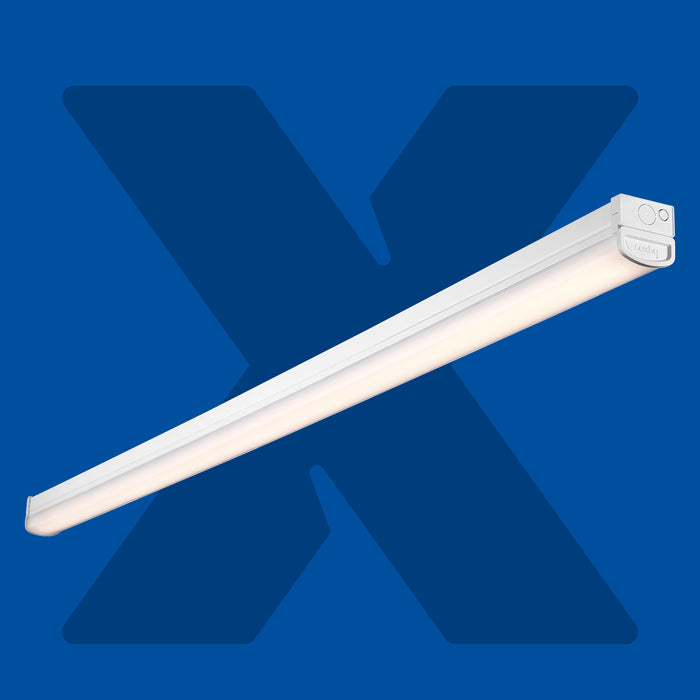

Saxby 122338 LinX20 30W/40W/51W/60W 6ft CCT IP20 LED Batten 3000K/4000K/6000K

IN STOCK ITEM: Dispatch in 2–3 Days

The Saxby LinX20 122338 LED Batten is a high-performance lighting solution designed for commercial, industrial and large-scale interior applications. Combining selectable wattage and adjustable colour temperature, this versatile 6ft LED batten allows installers to tailor both light output and ambience to meet specific project requirements.

Offering four selectable power settings of 30W, 40W, 51W and 60W, alongside three colour temperature options of 3000K Warm White, 4000K Cool White and 6000K Daylight, the LinX20 delivers exceptional flexibility. Producing up to 9000 lumens with an impressive efficacy of up to 150 lumens per watt, it provides powerful illumination while reducing energy consumption and maintenance costs.

Manufactured from durable polycarbonate and steel, with an opal diffuser and gloss white finish, this dimmable LED batten ensures consistent light distribution and long-lasting reliability across a wide range of installations.

Key Features

• 6ft LED batten with integrated LED technology
• Selectable wattages: 30W, 40W, 51W and 60W

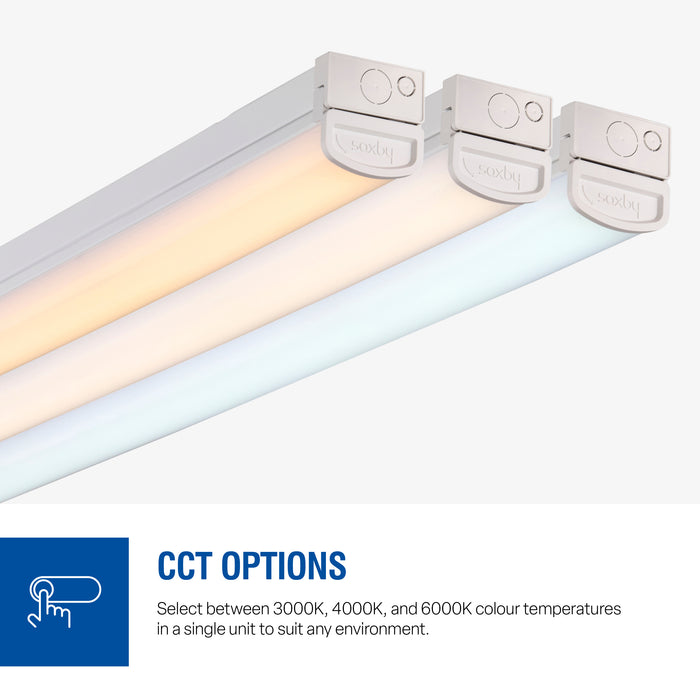

• CCT selectable: 3000K, 4000K and 6000K
• Dimmable operation for enhanced lighting control
• Produces up to 9000 lumens output
• High efficiency of up to 150 lm/W
• Integrated LED driver included
• Opal polycarbonate diffuser for uniform light distribution
• Gloss white finish suitable for modern commercial environments
• Constructed from durable polycarbonate and steel

Technical Specifications

• Product Code: 122338
• Range: LinX20

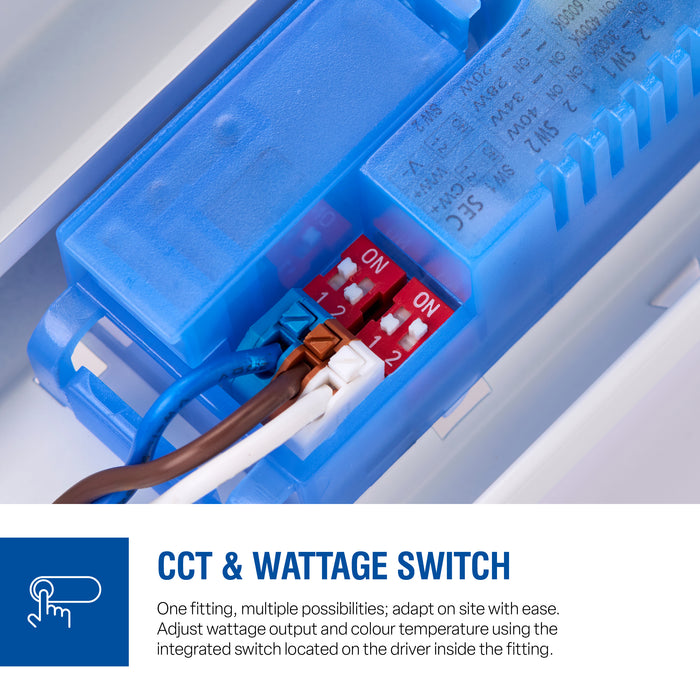

• Wattage: 30W / 40W / 51W / 60W Selectable
• Light Source: 60W LED Module (SMD 2835)
• Colour Temperature: 3000K / 4000K / 6000K Selectable
• Maximum Light Output: 9000 Lumens
• Efficiency: Up to 150 lm/W
• Dimmable: Yes
• IP Rating: IP20
• Construction: Polycarbonate & Steel
• Finish: Gloss White with Opal Diffuser
• Length: 1800mm
• Projection: 69mm
• Width: 67mm
• Class: Class 1

Ideal Applications

The Saxby LinX20 6ft LED Batten is ideal for warehouses, workshops, retail premises, offices, schools, corridors, storage facilities and other commercial environments requiring powerful, flexible and energy-efficient lighting.

Data Sheet:

Download the Saxby 122338 Data Sheet
