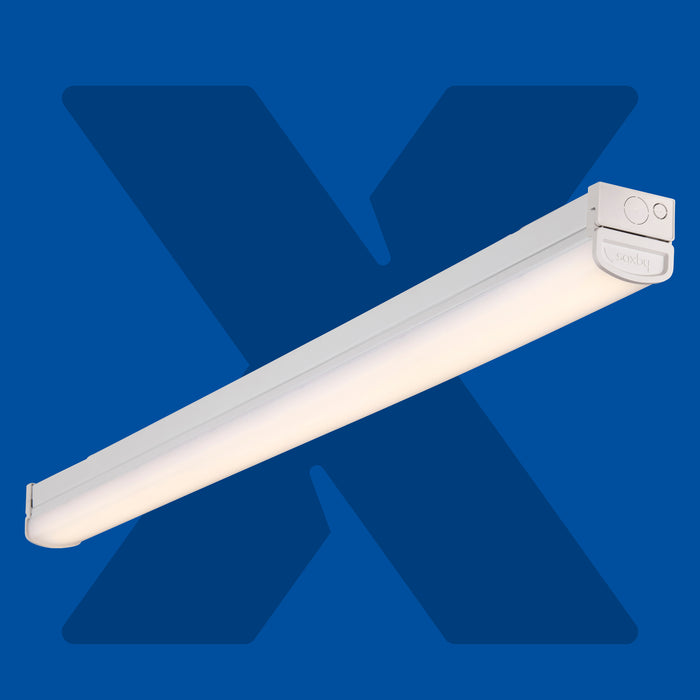

Saxby 122336 LinX20 21W/27.5W/33W/40W 4ft CCT IP20 LED Batten 3000K/4000K/6000K

IN STOCK ITEM: Dispatch in 2–3 Days

The Saxby LinX20 122336 LED Batten is a highly versatile lighting solution designed for commercial, educational and residential environments. Featuring both selectable wattage and adjustable colour temperature, this 4ft LED batten allows installers to customise light output and ambience to suit a wide range of applications from offices and corridors to workshops and retail spaces.

With four selectable power settings of 21W, 27.5W, 33W and 40W, alongside three colour temperature options of 3000K Warm White, 4000K Cool White and 6000K Daylight, the LinX20 offers exceptional flexibility. Delivering up to 6000 lumens and an impressive efficacy of up to 150 lumens per watt, it provides powerful illumination while helping to reduce energy consumption.

Manufactured from durable polycarbonate and steel with an opal diffuser and gloss white finish, this dimmable batten provides excellent light distribution and long-term reliability.

Key Features

• 4ft LED batten with integrated LED technology
• Selectable wattages: 21W, 27.5W, 33W and 40W

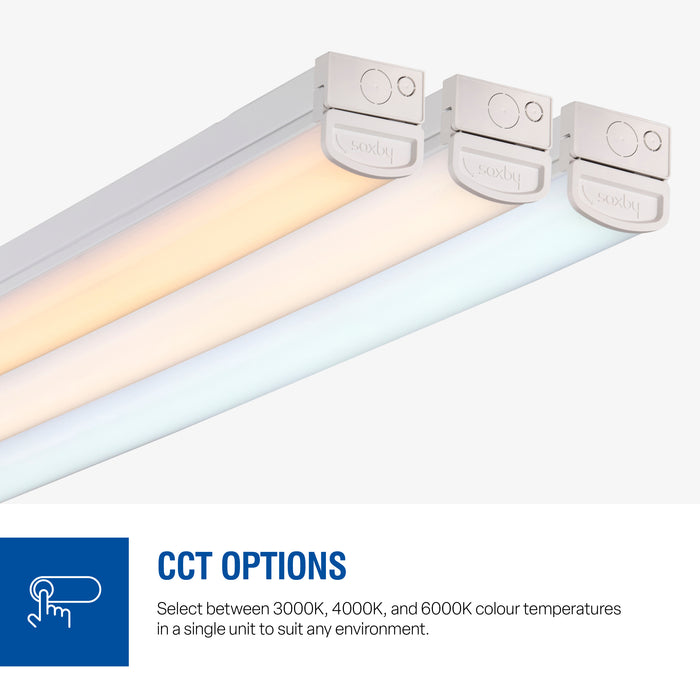

• CCT selectable: 3000K, 4000K and 6000K
• Dimmable operation for enhanced lighting control
• Up to 6000 lumens light output
• High efficiency of up to 150 lm/W
• Complete with integrated LED driver
• Opal polycarbonate diffuser for uniform illumination
• Gloss white finish
• Constructed from polycarbonate and steel

Technical Specifications

• Product Code: 122336
• Range: LinX20

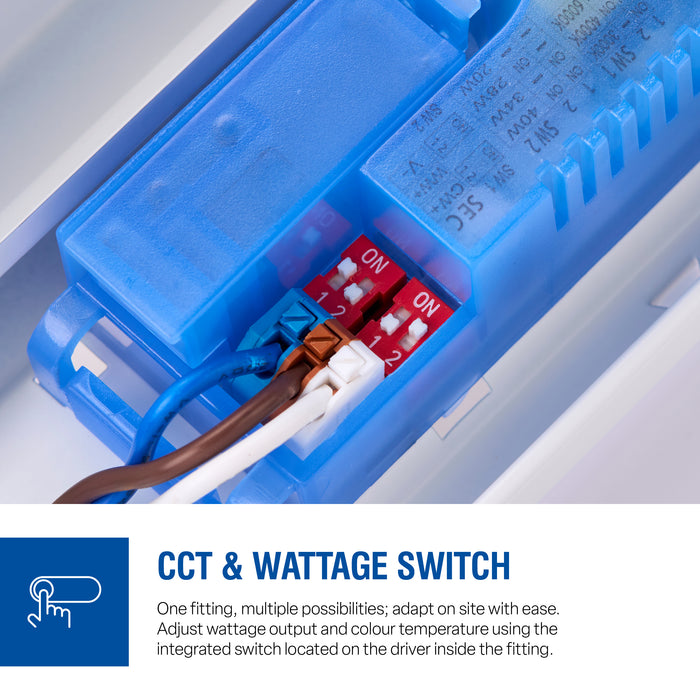

• Wattage: 21W / 27.5W / 33W / 40W Selectable
• Light Source: 40W LED Module (SMD 2835)
• Colour Temperature: 3000K / 4000K / 6000K Selectable
• Maximum Light Output: 6000 Lumens
• Efficiency: 150 lm/W
• Dimmable: Yes
• IP Rating: IP20
• Construction: Polycarbonate & Steel
• Finish: Gloss White with Opal Diffuser
• Length: 1200mm
• Projection: 69mm
• Width: 67mm
• Class: Class 1

Applications

Ideal for offices, schools, retail environments, corridors, utility rooms, workshops, warehouses and other commercial spaces where flexible, energy-efficient lighting is required.

Data Sheet:

Download the Saxby 122336 Data Sheet
