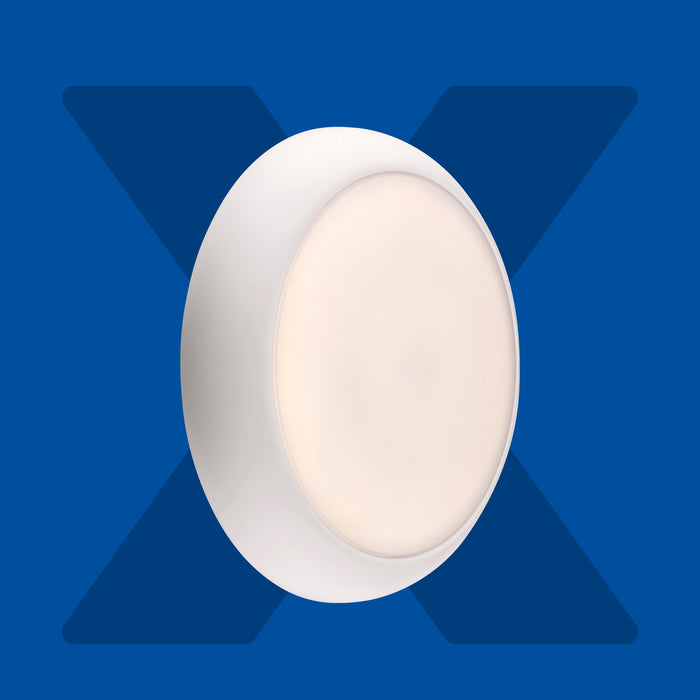

Saxby 122330 EvoX CCT 11.5W/15W/19W/22.5W IP65 LED Round Bulkhead Dimmable - Matt White

The Saxby 122330 EvoX CCT LED Bulkhead is a powerful and adaptable lighting solution designed for demanding residential, commercial and public-sector environments. Offering selectable wattage settings of 11.5W, 15W, 19W and 22.5W, together with adjustable colour temperatures of 3000K Warm White, 4000K Cool White and 6000K Daylight, this bulkhead allows you to tailor light output and ambience to suit your specific application.

Delivering up to 3150 lumens with an impressive efficacy of 140 lumens per watt, the EvoX provides excellent illumination while helping to reduce energy consumption. Its dimmable functionality offers further flexibility, enabling lighting levels to be adjusted to meet changing requirements.

Manufactured from durable polycarbonate with a textured matt white finish and opal diffuser, this robust bulkhead provides excellent light distribution and long-lasting performance. The IP65 rating ensures protection against dust and water ingress, making it suitable for both indoor and outdoor installations.

Key Features

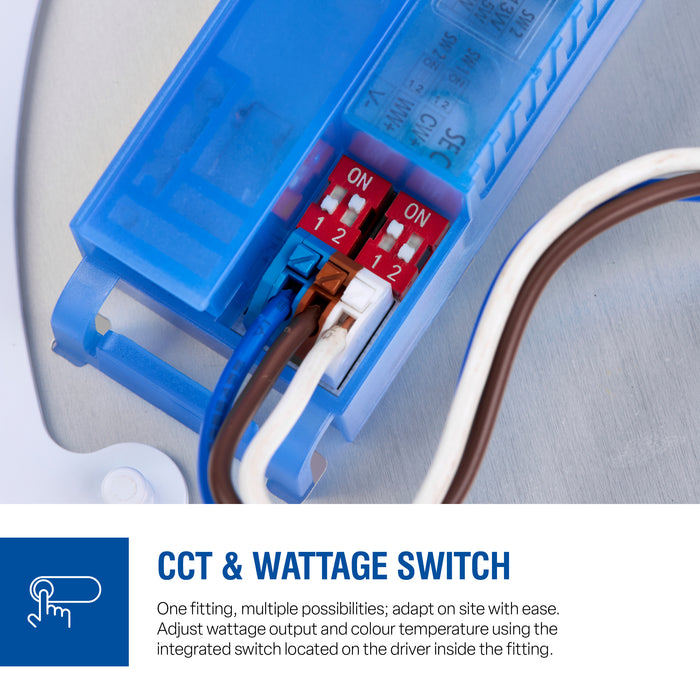

• Selectable wattage settings: 11.5W, 15W, 19W and 22.5W

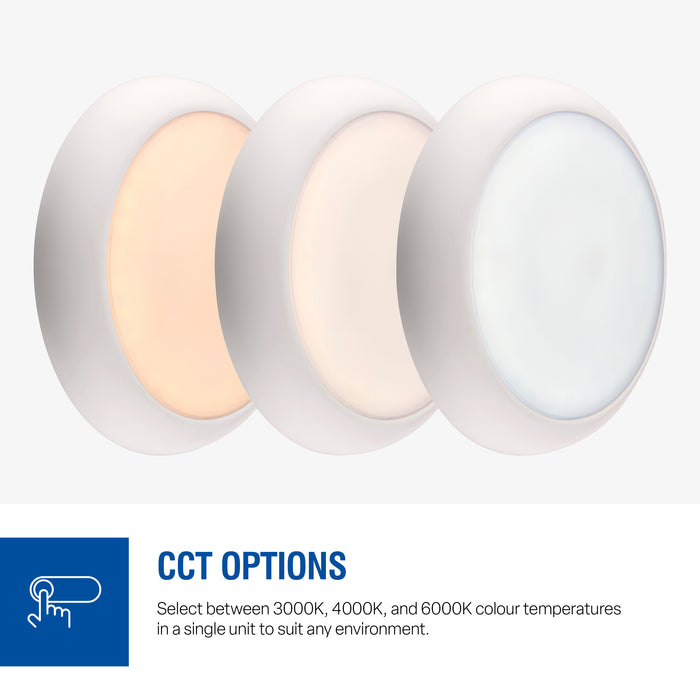

• Selectable colour temperatures: 3000K, 4000K and 6000K
• Dimmable LED technology for flexible lighting control
• High output performance up to 3150 lumens
• Excellent efficacy of up to 140 lm/W
• Durable polycarbonate construction
• Matt white textured finish with opal diffuser
• Suitable for indoor and outdoor installations
• IP65-rated protection against dust and water ingress
• Supplied complete with integrated LED driver

Technical Specifications

• Product Code: 122330
• Brand: Saxby
• Range: EvoX CCT
• Product Type: LED Round Bulkhead
• Selectable Wattage: 11.5W / 15W / 19W / 22.5W
• Light Source: Integrated SMD 2835 LED Module
• Selectable Colour Temperature: 3000K / 4000K / 6000K
• Maximum Lumen Output: 3150 Lumens
• Efficiency: 140 lm/W
• Dimmable: Yes
• IP Rating: IP65
• Class: Class II
• Construction: Polycarbonate
• Finish: Matt White Textured
• Diffuser: Opal Polycarbonate
• Projection: 80mm
• Diameter: 310mm

Applications

The Saxby EvoX CCT bulkhead is ideal for apartment blocks, communal areas, stairwells, corridors, schools, healthcare facilities, warehouses, utility rooms, commercial buildings, entrances and outdoor walkways where reliable, high-output illumination is required.

Data Sheet:

Download Data Sheet
