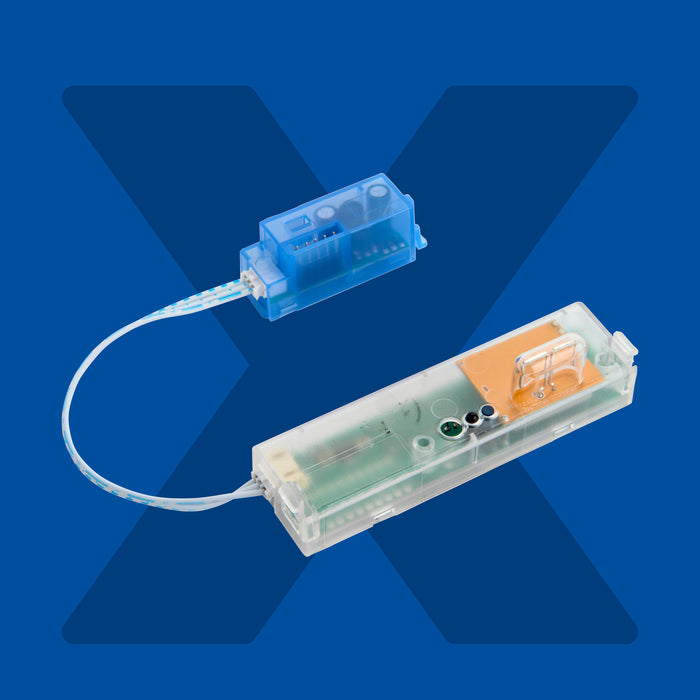

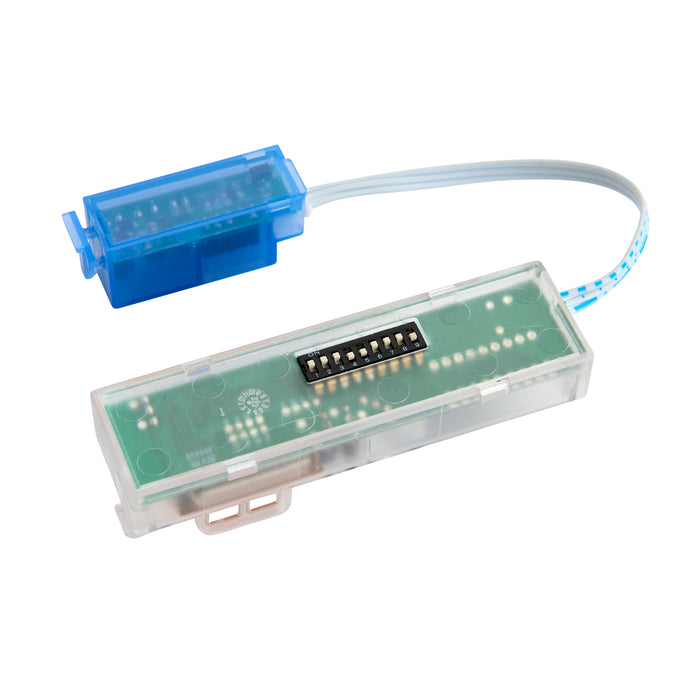

Saxby 122321 X-Series Microwave & Photocell Sensor

IN STOCK ITEM: Dispatch in 2–3 Days

The Saxby 122321 X-Series Microwave & Photocell Sensor is a versatile Plug & Play accessory designed specifically for the Saxby X-Series bulkhead and batten ranges. Combining a microwave motion sensor, photocell dusk-to-dawn operation and corridor dimming functionality, it provides intelligent lighting control to improve convenience while reducing energy consumption.

Installation is quick and straightforward—simply remove the driver cover and clip the sensor into the gear tray without the need for complex wiring. Adjustable detection sensitivity, hold time, stand-by dimming levels and photocell settings allow the sensor to be tailored to suit a wide variety of commercial and residential applications.

Key Features

• Compatible with Saxby X-Series bulkheads and battens
• Plug & Play installation with no complex wiring required
• Integrated microwave motion sensor and photocell
• 3-in-1 functionality including corridor dimming mode
• Adjustable microwave detection sensitivity (25%–100%)
• Adjustable timer from 5 seconds to 10 minutes
• Photocell threshold adjustable down to 5 lux
• Stand-by dimming levels of 10% or 30%
• Stand-by period selectable: 0, 10 seconds, 15 minutes or continuous
• Maximum installation height: 6 metres
• Durable clear polycarbonate construction

Technical Specification

• Manufacturer: Saxby
• Part Number: 122321
• Product Type: Microwave & Photocell Sensor
• Compatible Range: Saxby X-Series Bulkheads & Battens
• Sensor Type: Microwave Motion Sensor with Photocell
• Functions: Motion Detection, Corridor Function & Dusk-to-Dawn Control
• Detection Sensitivity: Adjustable 25%–100%
• Photocell Setting: 5 lux threshold
• Timer: Adjustable from 5 seconds to 10 minutes
• Stand-by Dimming: 10% or 30%
• Stand-by Period: 0, 10 seconds, 15 minutes or Continuous
• Maximum Mounting Height: 6 metres
• Material: Polycarbonate
• Finish: Clear
• Dimensions: 92mm (L) × 26mm (W) × 28mm (H)

Applications

Ideal for offices, corridors, stairwells, communal areas, warehouses, retail spaces, car parks and other commercial or residential environments using compatible Saxby X-Series luminaires where automatic, energy-efficient lighting control is required.

Data Sheet:

Download the Saxby 122321 Data Sheet
