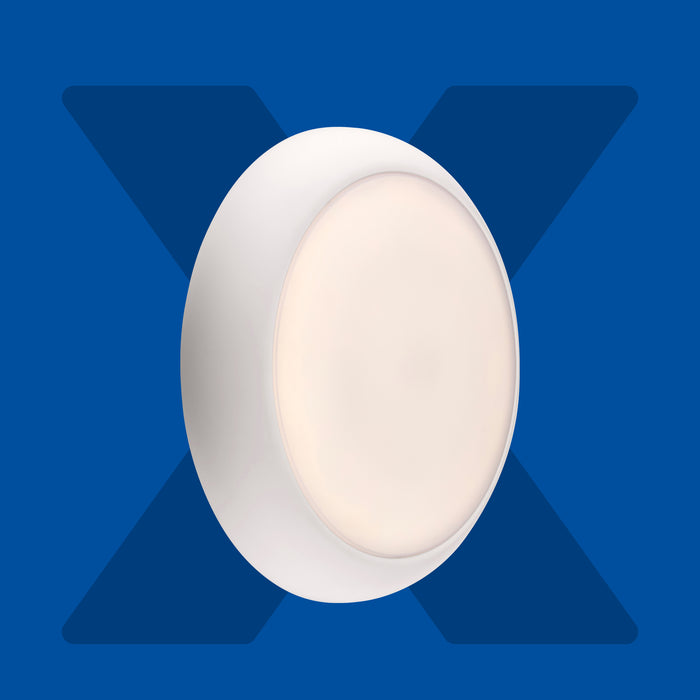

Saxby 122320 EvoX CCT 6W/8.5W/10.5W/13W IP65 Emergency LED Round Bulkhead with Microwave Sensor - Matt White

The Saxby EvoX CCT Emergency LED Bulkhead combines high-performance illumination, emergency lighting capability and intelligent sensor control in one versatile fitting. Designed for both residential and commercial applications, it features selectable wattage settings of 6W, 8.5W, 10.5W and 13W, along with adjustable colour temperatures of 3000K Warm White, 4000K Cool White and 6000K Daylight, allowing you to customise the lighting output to suit your environment.

Equipped with a built-in microwave motion sensor, the fitting automatically responds to occupancy, helping to reduce energy consumption while maintaining effective illumination. Adjustable sensitivity, hold-time and standby dimming functions provide greater control and efficiency in communal areas, corridors, stairwells and commercial premises.

The integrated emergency function supports both maintained and non-maintained operation, ensuring reliable illumination in the event of a mains power failure. Manufactured from robust polycarbonate with a matt white textured finish and opal diffuser, the EvoX delivers excellent durability and uniform light distribution. Its IP65 rating makes it suitable for indoor and outdoor installations.

Key Features

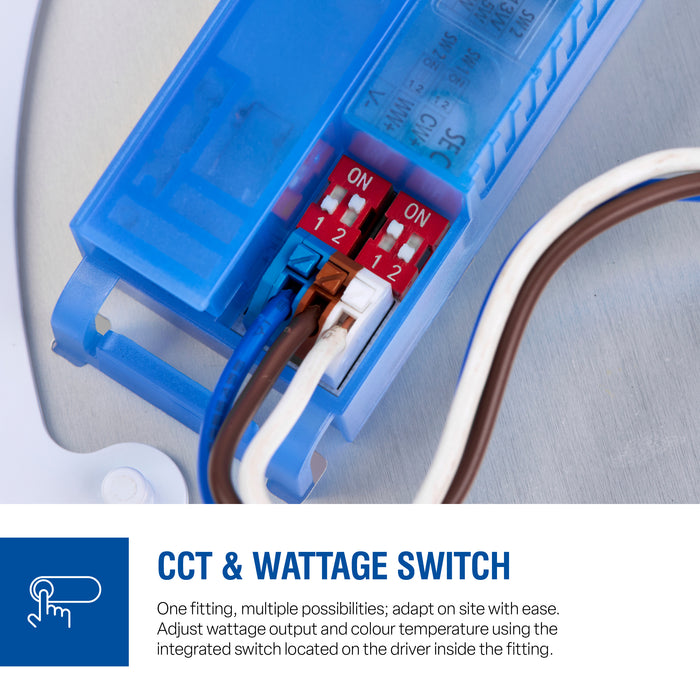

• Selectable wattage settings: 6W, 8.5W, 10.5W and 13W

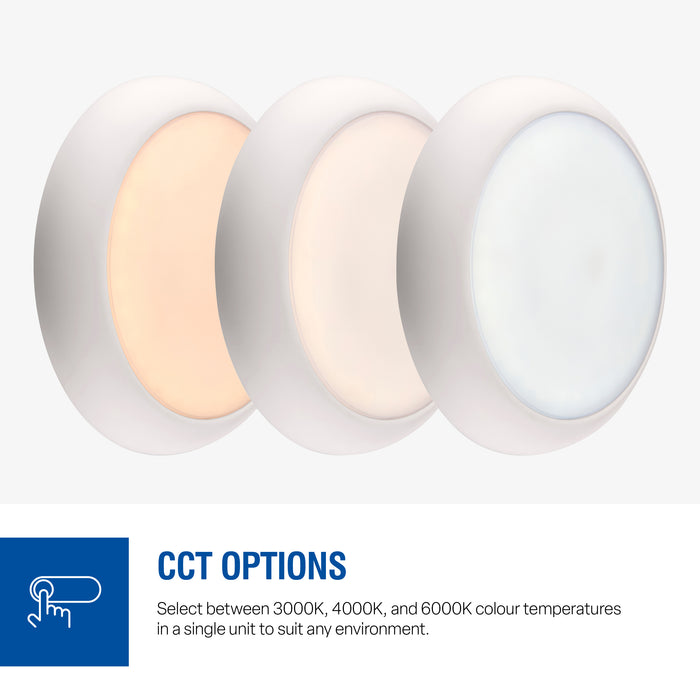

• Selectable colour temperatures: 3000K, 4000K and 6000K
• Integrated microwave motion sensor
• Dimmable LED technology for enhanced energy efficiency
• Emergency maintained and non-maintained operation
• Adjustable sensor sensitivity and timer functions
• Standby dimming options for reduced power consumption
• High efficiency output up to 1820 lumens
• Durable polycarbonate construction
• Matt white textured finish with opal diffuser
• IP65-rated for indoor and outdoor use

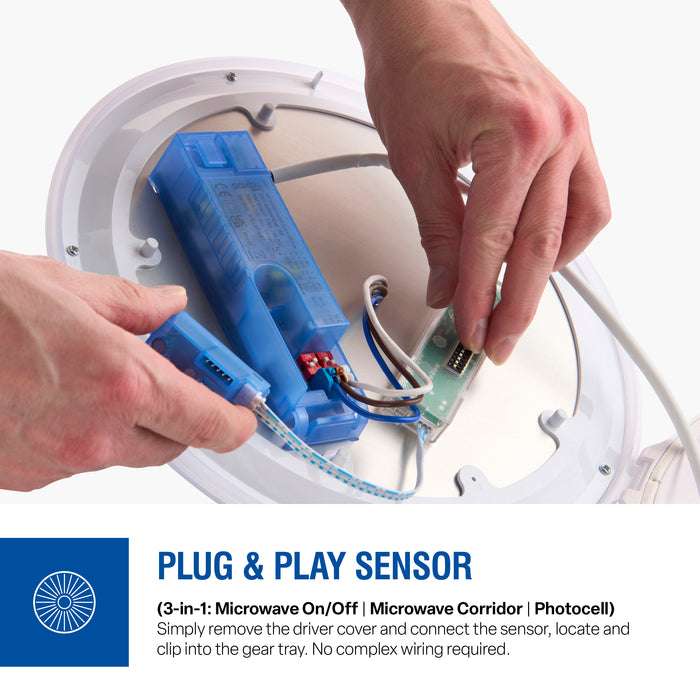

Microwave Sensor Functions

• Integrated microwave motion sensor
• Adjustable sensitivity from 25% to 100%
• 5 lux disable sensitivity setting
• Adjustable timer from 5 seconds to 10 minutes
• Maximum installation height: 6 metres
• Standby dimming levels: 10% or 30%
• Standby periods: 0 seconds, 10 seconds, 15 minutes or maximum setting

Technical Specifications

• Product Code: 122320
• Brand: Saxby
• Range: EvoX CCT
• Product Type: Emergency LED Bulkhead with Microwave Sensor
• Selectable Wattage: 6W / 8.5W / 10.5W / 13W
• Light Source: Integrated SMD 2835 LED Module
• Selectable Colour Temperature: 3000K / 4000K / 6000K
• Maximum Lumen Output: 1820 Lumens
• Efficiency: 140 lm/W
• Dimmable: Yes
• Emergency Function: Maintained & Non-Maintained
• Sensor Type: Microwave Motion Sensor
• IP Rating: IP65
• Class: Class II
• Construction: Polycarbonate
• Finish: Matt White Textured
• Diffuser: Opal Polycarbonate
• Projection: 80mm
• Diameter: 310mm

Applications

The Saxby EvoX CCT Emergency Bulkhead with Microwave Sensor is ideal for communal hallways, apartment buildings, stairwells, escape routes, entrances, car parks, utility areas, schools, healthcare facilities and commercial environments where energy-efficient lighting and emergency backup are essential.

Data Sheet:

Download Data Sheet
