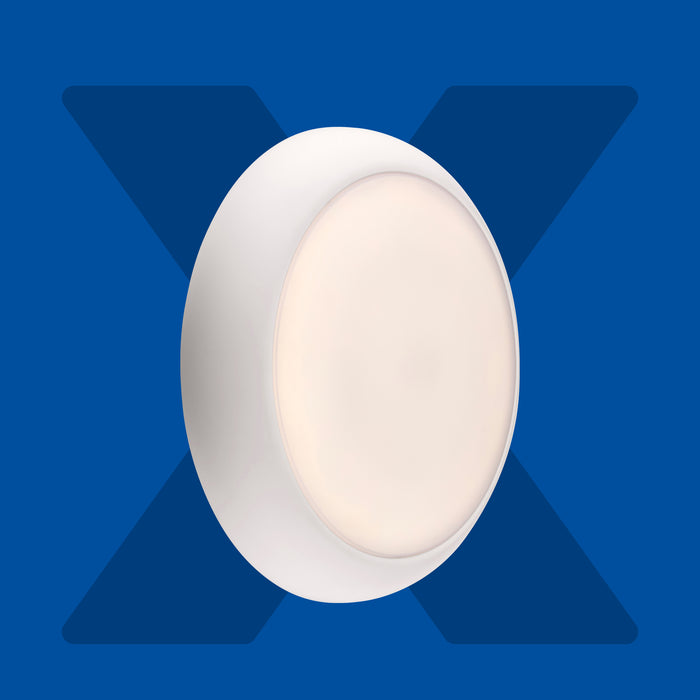

Saxby 122319 EvoX CCT 6W/8.5W/10.5W/13W IP65 Emergency LED Round Bulkhead Dimmable - Matt White

The Saxby EvoX CCT Emergency LED Bulkhead is a versatile, energy-efficient lighting solution designed for commercial, residential and public access environments requiring both general and emergency illumination. Featuring selectable wattage outputs of 6W, 8.5W, 10.5W and 13W, together with adjustable colour temperatures of 3000K Warm White, 4000K Cool White and 6000K Daylight, this bulkhead provides exceptional flexibility for a wide range of installations.

Designed with integrated emergency functionality, the fitting can operate in both maintained and non-maintained emergency modes, ensuring reliable illumination during mains power failure. Its robust polycarbonate construction, textured matt white finish and opal diffuser provide excellent durability and uniform light distribution.

With an IP65 rating, the EvoX is suitable for indoor and outdoor use, offering dependable performance in communal areas, corridors, stairwells, entrances, commercial premises and other demanding environments. The dimmable design and high efficacy of up to 140 lumens per watt help maximise energy efficiency while maintaining outstanding lighting performance.

Key Features

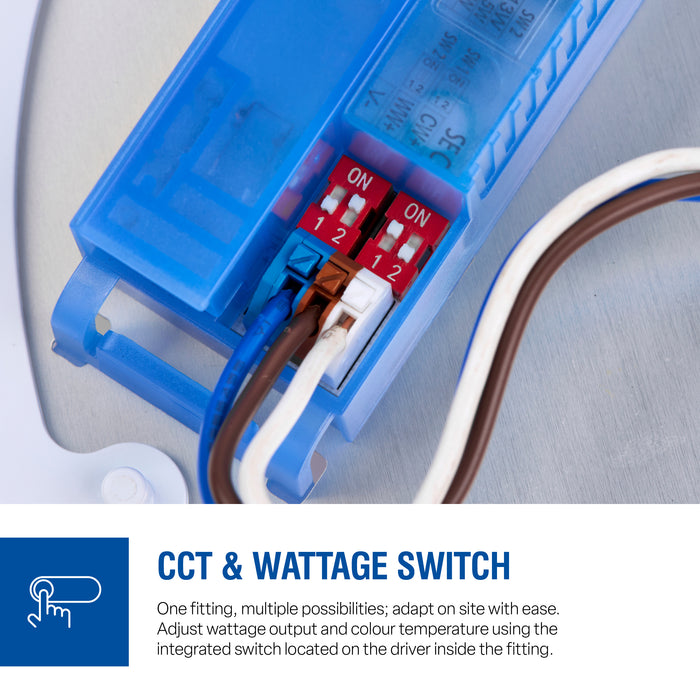

• Selectable wattage settings: 6W, 8.5W, 10.5W and 13W

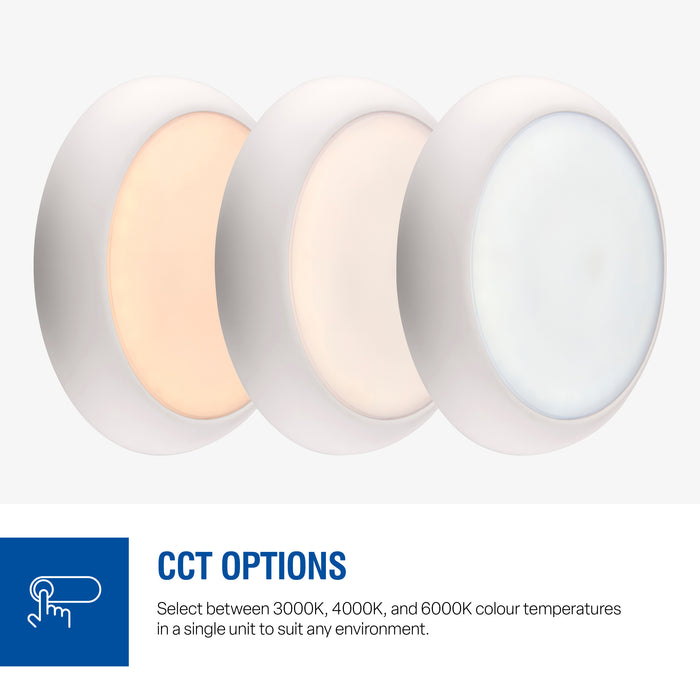

• Selectable colour temperatures: 3000K, 4000K and 6000K
• Integrated emergency lighting functionality
• Suitable for maintained and non-maintained emergency operation
• Dimmable LED technology for flexible lighting control
• High efficiency output of up to 1820 lumens
• Matt white textured finish with opal diffuser
• Durable polycarbonate construction
• Suitable for indoor and outdoor applications
• IP65-rated for protection against dust and water ingress

Technical Specifications

• Product Code: 122319
• Brand: Saxby
• Range: EvoX CCT
• Product Type: Emergency LED Round Bulkhead
• Selectable Wattage: 6W / 8.5W / 10.5W / 13W
• Light Source: Integrated SMD 2835 LED Module
• Selectable Colour Temperature: 3000K / 4000K / 6000K
• Maximum Lumen Output: 1820 Lumens
• Efficiency: 140 lm/W
• Dimmable: Yes
• Emergency Function: Maintained & Non-Maintained
• IP Rating: IP65
• Class: Class II
• Construction: Polycarbonate
• Finish: Matt White Textured
• Diffuser: Opal Polycarbonate
• Projection: 80mm
• Diameter: 310mm

Applications

The Saxby EvoX CCT Emergency Bulkhead is ideal for apartment blocks, communal hallways, stairwells, escape routes, commercial premises, schools, healthcare facilities, utility rooms, entrances and external walkways where reliable emergency lighting is required.

Data Sheet:

Download Data Sheet
