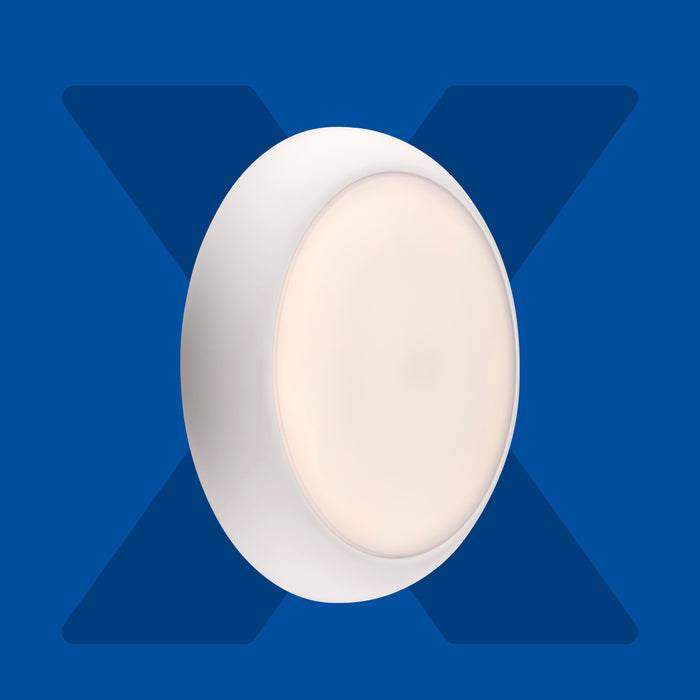

Saxby 122318 EvoX CCT 6W/8.5W/10.5W/13W IP65 LED Round Bulkhead with Microwave Sensor & Photocell - Matt White

The Saxby EvoX CCT LED Bulkhead is a highly versatile and energy-efficient lighting solution designed for both indoor and outdoor installations. Featuring selectable wattage outputs of 6W, 8.5W, 10.5W and 13W alongside adjustable colour temperatures of 3000K Warm White, 4000K Cool White and 6000K Daylight, this bulkhead can be tailored to suit a wide range of applications.

Equipped with an integrated microwave motion sensor and photocell, the EvoX provides intelligent lighting control, improving energy efficiency whilst maintaining optimum illumination levels. The sensor offers adjustable detection sensitivity, dimming levels and hold times, making it ideal for communal areas, corridors, stairwells, entrances and commercial environments.

Constructed from durable polycarbonate with a matt white textured finish and opal diffuser, the fitting delivers excellent light distribution and reliable performance. Its IP65 rating ensures protection against dust and water ingress, making it suitable for demanding indoor and outdoor environments.

Key Features

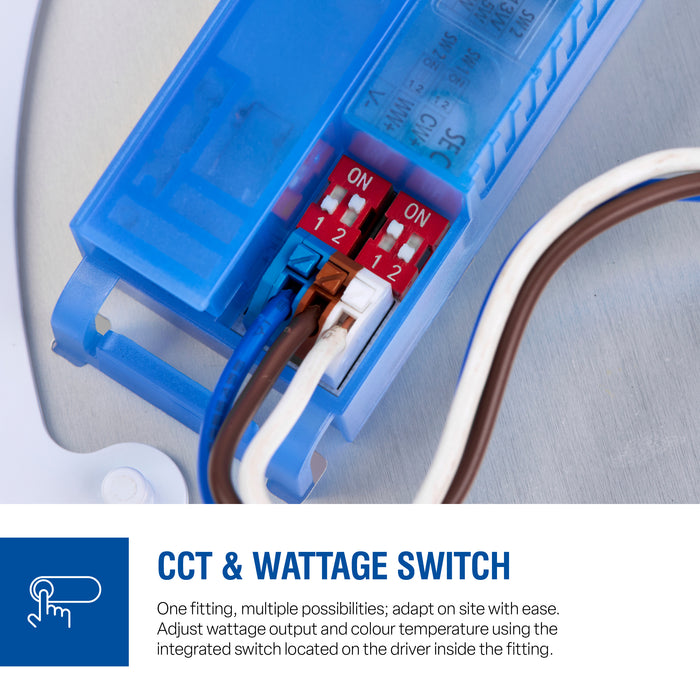

• Selectable wattage settings: 6W, 8.5W, 10.5W and 13W

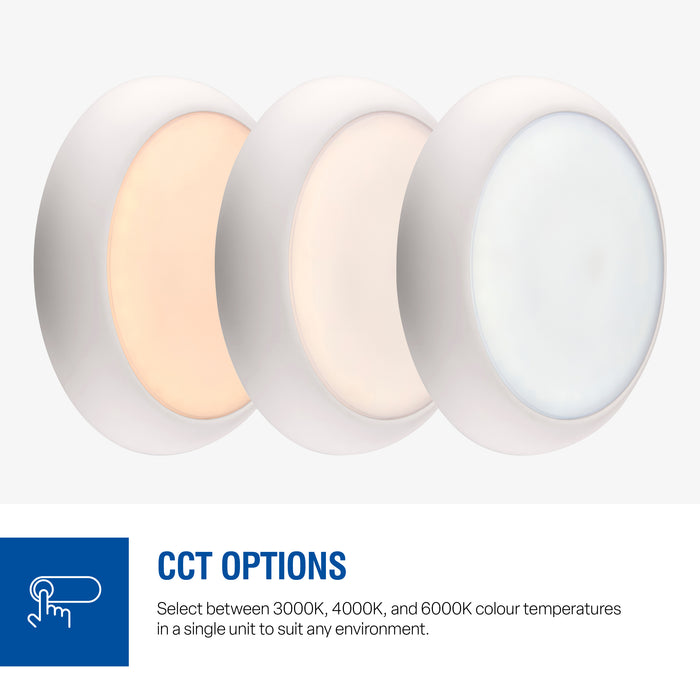

• Selectable colour temperatures: 3000K, 4000K and 6000K
• Integrated microwave motion sensor and photocell
• Dimmable LED operation for enhanced energy efficiency
• Adjustable detection sensitivity and timer settings
• Standby dimming levels available for low-energy operation
• Matt white textured finish with opal polycarbonate diffuser
• High efficiency output of up to 1820 lumens
• Suitable for indoor and outdoor installations
• IP65-rated for protection against dust and water ingress

Microwave Sensor & Photocell Functions

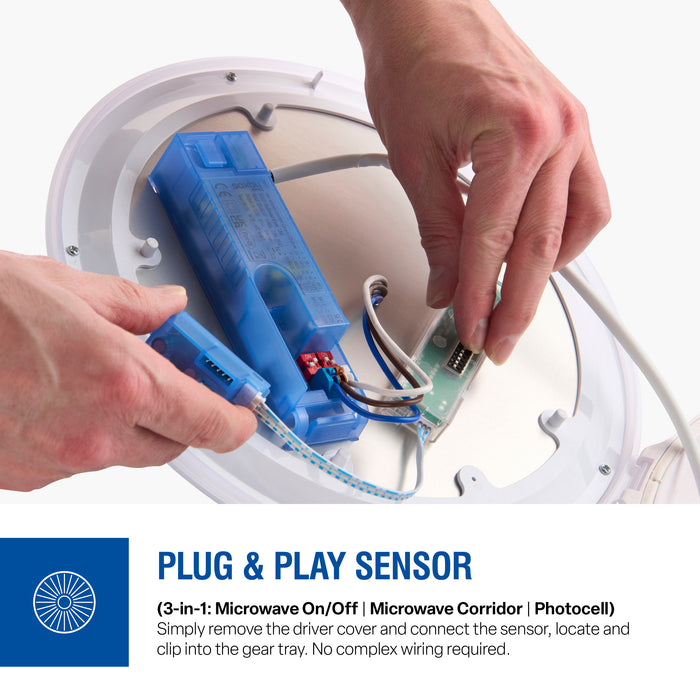

• Built-in microwave motion sensor and photocell
• Adjustable sensitivity with 5 lux disable function
• Detection range adjustable from 25% to 100%
• Timer settings adjustable from 5 seconds to 10 minutes
• Maximum mounting height: 6 metres
• Standby dimming levels: 10% or 30%
• Standby periods: 0 seconds, 10 seconds, 15 minutes or maximum setting

Technical Specifications

• Product Code: 122318
• Brand: Saxby
• Range: EvoX CCT
• Product Type: LED Round Bulkhead with Microwave Sensor & Photocell
• Selectable Wattage: 6W / 8.5W / 10.5W / 13W
• Light Source: Integrated SMD 2835 LED Module
• Selectable Colour Temperature: 3000K / 4000K / 6000K
• Maximum Lumen Output: 1820 Lumens
• Efficiency: 140 lm/W
• Dimmable: Yes
• IP Rating: IP65
• Class: Class II
• Construction: Polycarbonate
• Finish: Matt White Textured
• Diffuser: Opal Polycarbonate
• Projection: 80mm
• Diameter: 310mm

Applications

The Saxby EvoX CCT bulkhead is ideal for apartment blocks, communal hallways, stairwells, utility areas, garages, commercial premises, entrances, walkways and external building perimeters where automatic lighting control and energy efficiency are essential.

Data Sheet:

Download Data Sheet
