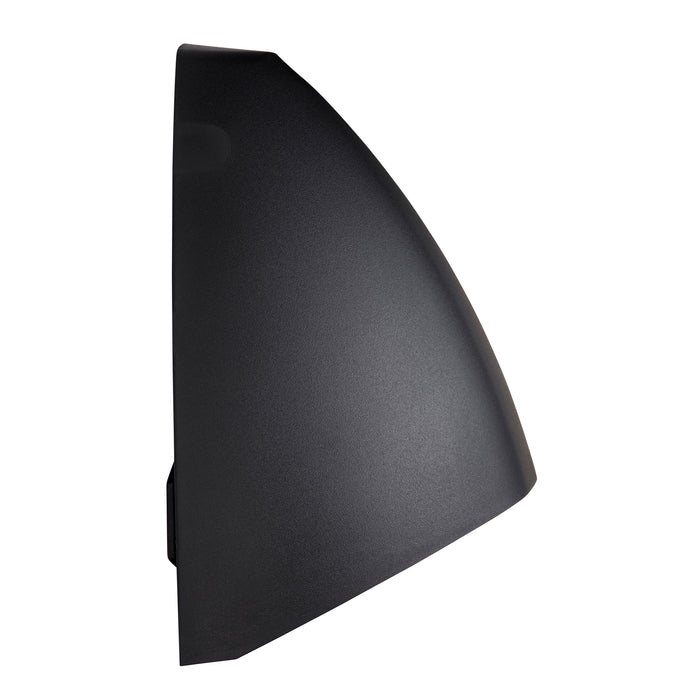

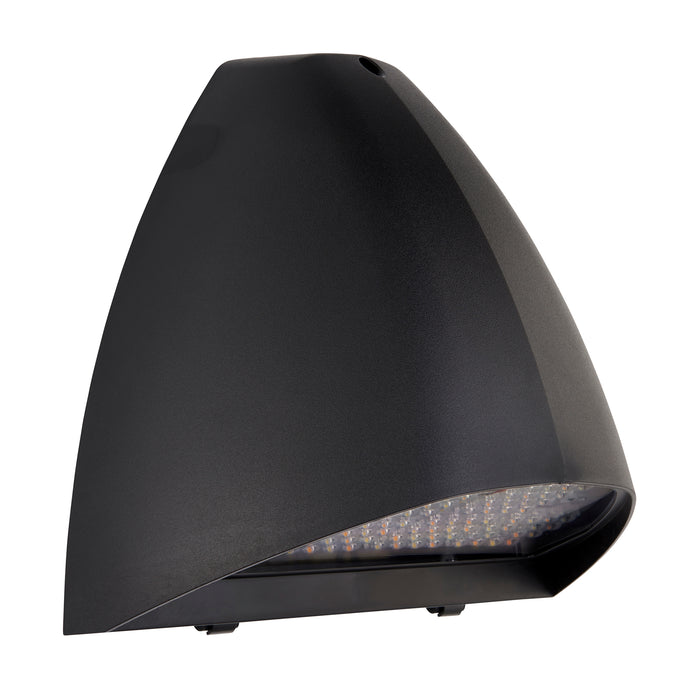

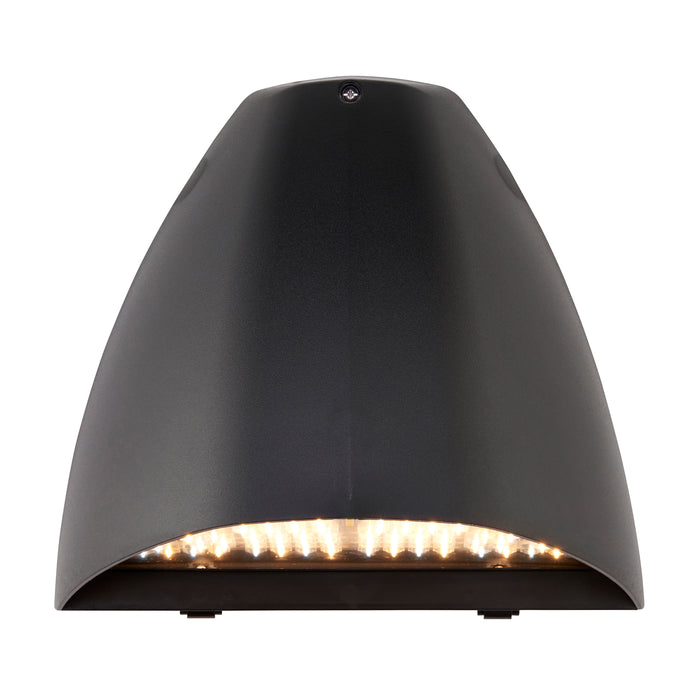

Saxby 121024 Forge XL CCT 16W/20W/24W IP65 LED Wall Pack with Photocell – Matt Black

The Saxby Forge XL CCT LED Wall Pack with integrated photocell combines powerful illumination, intelligent lighting control and outstanding energy efficiency. Designed for commercial, industrial and public sector applications, this robust wall-mounted luminaire offers selectable power outputs of 16W, 20W or 24W and delivers up to 3,240 lumens of high-quality light.

Featuring an adjustable built-in photocell sensor, the fitting automatically switches on and off according to ambient light levels, helping to reduce energy consumption and maintenance costs. The sensor can be adjusted between 5 and 400 lux, allowing precise control to suit site-specific requirements. An integrated CCT selector also provides a choice of 2700K, 3000K, 4000K and 6000K colour temperatures, enabling the light output to be tailored to different environments.

Constructed from durable polycarbonate and finished in a stylish matt black textured coating, the Forge XL is built to withstand demanding outdoor conditions. Its IP65-rated enclosure provides reliable protection against dust and water ingress, ensuring long-lasting performance in exposed locations.

Key Features

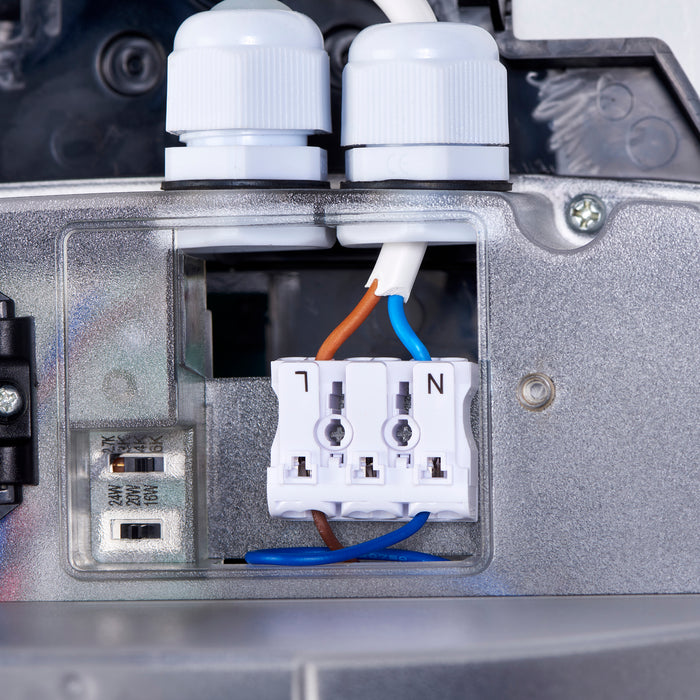

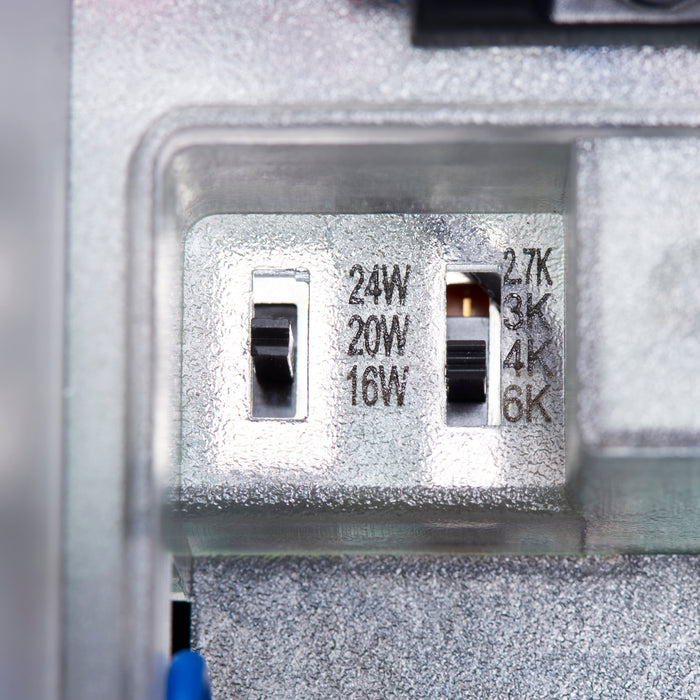

• Selectable power settings: 16W, 20W or 24W
• Selectable colour temperatures: 2700K, 3000K, 4000K and 6000K

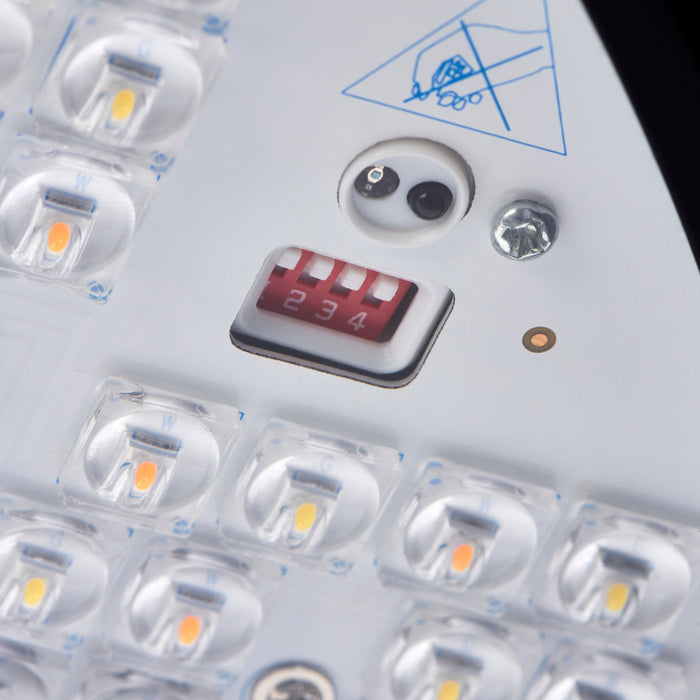

• Integrated adjustable photocell sensor
• Photocell sensitivity adjustable from 5 to 400 lux
• Automatic dusk-to-dawn operation for improved energy efficiency
• Maximum light output of 3,240 lumens
• High efficacy of up to 135 lumens per watt
• IP65-rated weatherproof protection

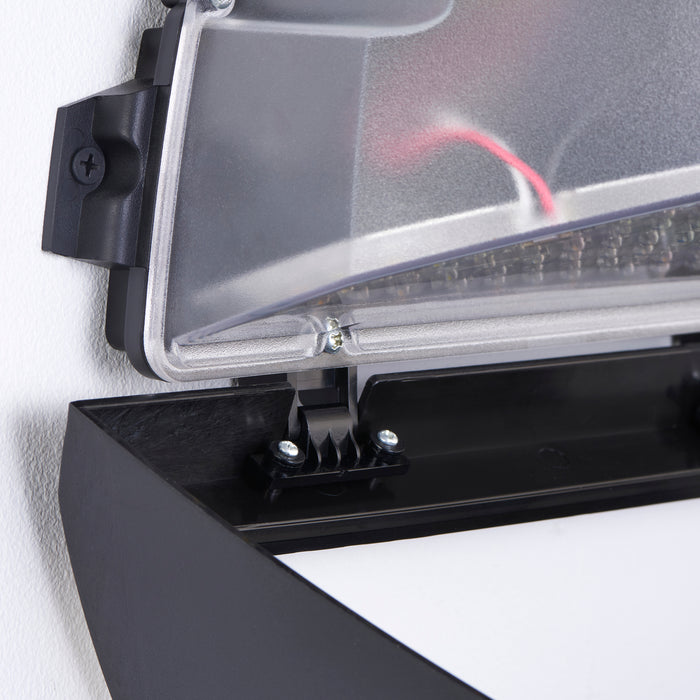

• Durable polycarbonate construction
• Matt black textured finish with clear polycarbonate diffuser
• Complete with LED driver
• Class II double-insulated fitting

Technical Specification

• Manufacturer: Saxby
• Part Number: 121024
• Product Range: Forge XL CCT Photocell
• Power Consumption: 16W / 20W / 24W Selectable

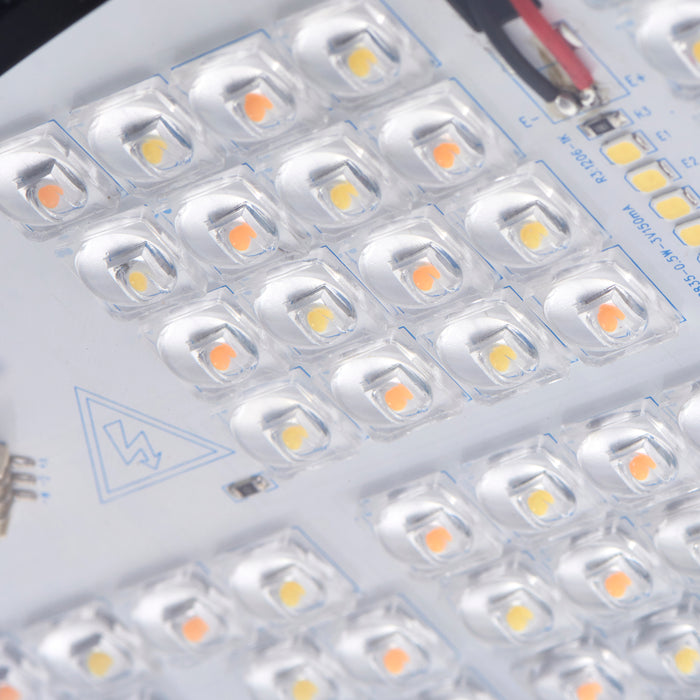

• Light Source: Integrated SMD 2835 LED Module
• Maximum Lumen Output: 3,240lm
• Efficiency: Up to 135lm/W
• Colour Temperatures: 2700K / 3000K / 4000K / 6000K
• Photocell Adjustment Range: 5–400 Lux
• IP Rating: IP65
• Electrical Class: Class II

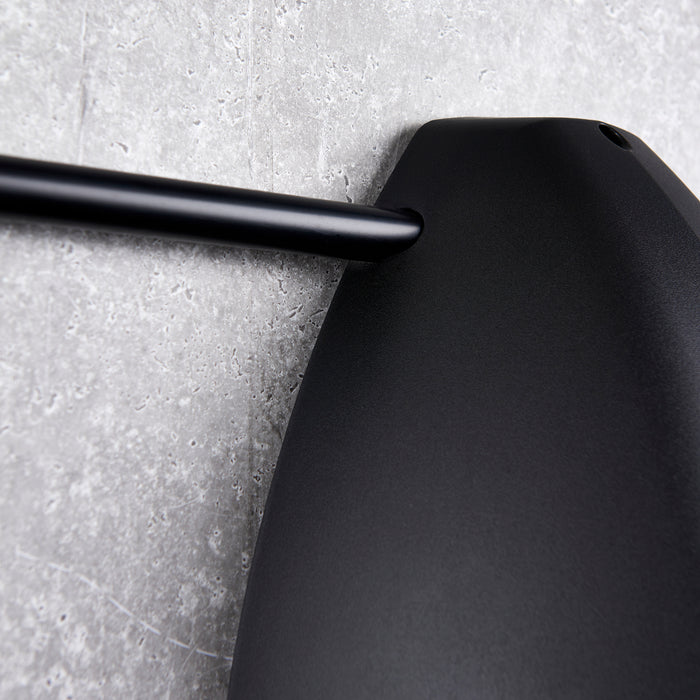

• Finish: Matt Black Textured
• Material: Polycarbonate
• Projection: 161mm
• Height: 274mm
• Width: 301mm

Ideal Applications

Perfect for commercial buildings, schools, healthcare facilities, warehouses, service yards, loading bays, pathways, perimeter security lighting and car parks where automatic dusk-to-dawn operation is required.

Data Sheet:

Download Data Sheet
