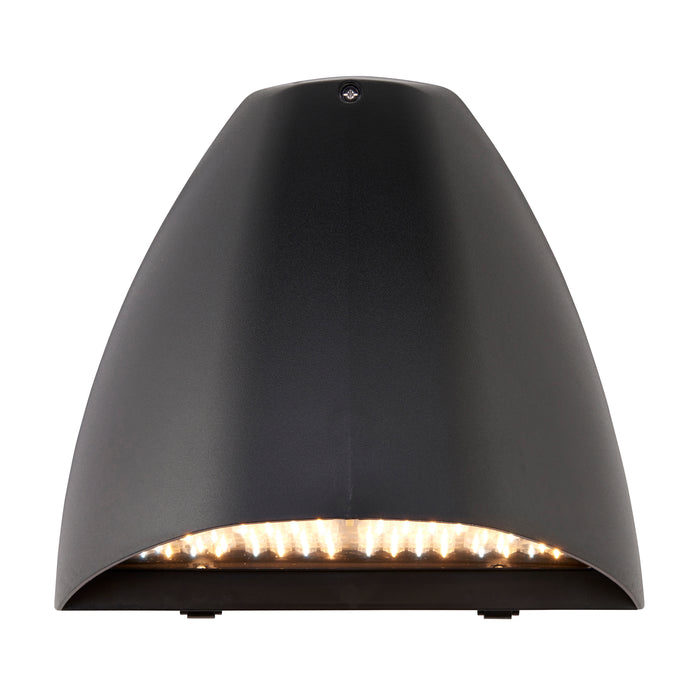

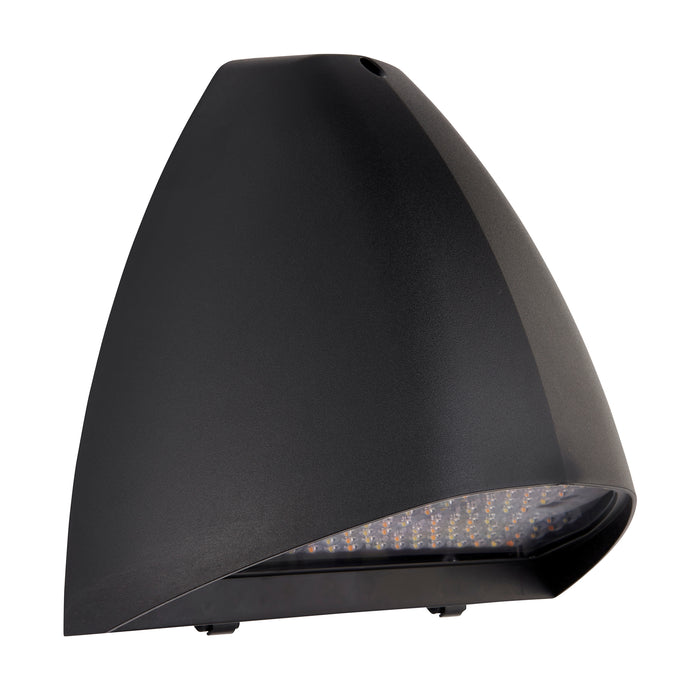

Saxby 121023 Forge XL CCT 16W/20W/24W IP65 LED Wall Pack – Matt Black

The Saxby Forge XL CCT LED Wall Pack is a powerful and versatile outdoor lighting solution designed for commercial, industrial and public sector applications. Offering selectable power outputs of 16W, 20W or 24W, this high-performance wall-mounted luminaire delivers up to 3,240 lumens while maintaining excellent energy efficiency of up to 135 lumens per watt.

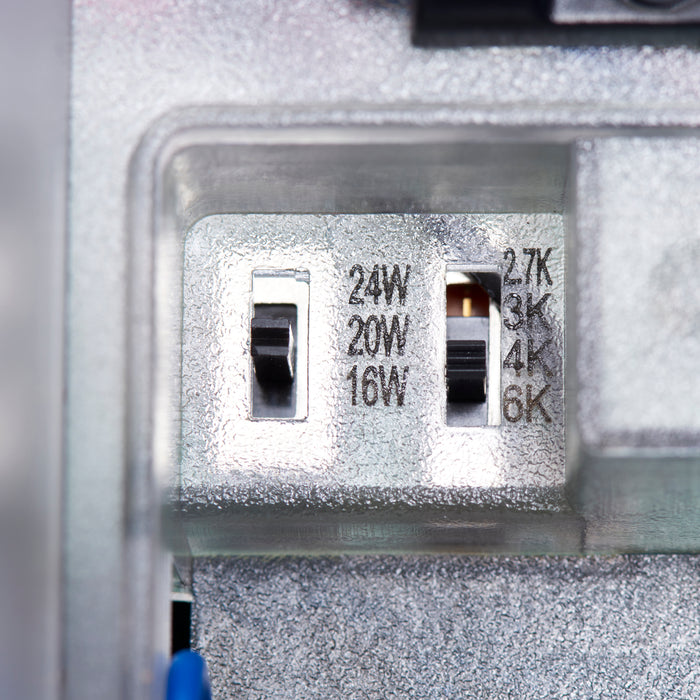

Designed to adapt to a wide range of environments, the integrated CCT selector allows you to choose between 2700K Warm White, 3000K Warm White, 4000K Cool White and 6000K Daylight. This flexibility makes the Forge XL ideal for everything from building perimeters and walkways to security and amenity lighting.

Manufactured from robust polycarbonate and finished in a contemporary matt black textured coating, the fitting is built to withstand challenging outdoor conditions. Its IP65-rated enclosure provides excellent protection against dust and water ingress, ensuring dependable long-term performance.

Key Features

• Selectable power settings: 16W, 20W or 24W
• Selectable colour temperatures: 2700K, 3000K, 4000K and 6000K
• Maximum light output of 3,240 lumens
• High efficacy of up to 135 lumens per watt
• IP65-rated weatherproof protection
• Durable polycarbonate construction
• Matt black textured finish with clear polycarbonate diffuser
• Suitable for commercial, industrial and public sector applications
• Complete with LED driver
• Integrated energy-efficient LED technology
• Class II double-insulated fitting

Technical Specification

• Manufacturer: Saxby
• Part Number: 121023
• Product Range: Forge XL CCT
• Power Consumption: 16W / 20W / 24W Selectable

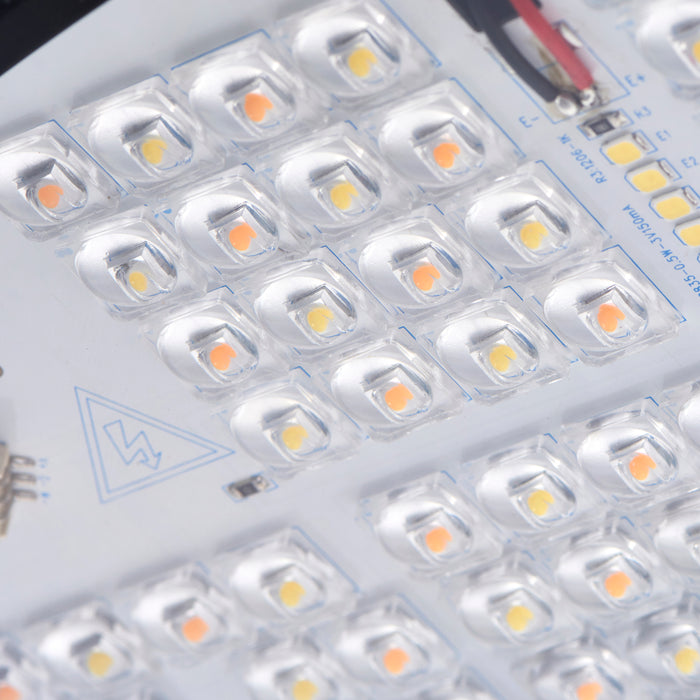

• Light Source: Integrated SMD 2835 LED Module
• Maximum Lumen Output: 3,240lm
• Efficiency: Up to 135lm/W
• Colour Temperatures: 2700K / 3000K / 4000K / 6000K
• IP Rating: IP65
• Electrical Class: Class II
• Finish: Matt Black Textured
• Material: Polycarbonate
• Projection: 161mm
• Height: 274mm
• Width: 301mm

Ideal Applications

Perfect for building exteriors, entrances, pathways, service yards, loading bays, car parks, educational facilities, healthcare sites, commercial premises and other outdoor locations requiring reliable, high-output illumination.

Data Sheet:

Download Data Sheet
