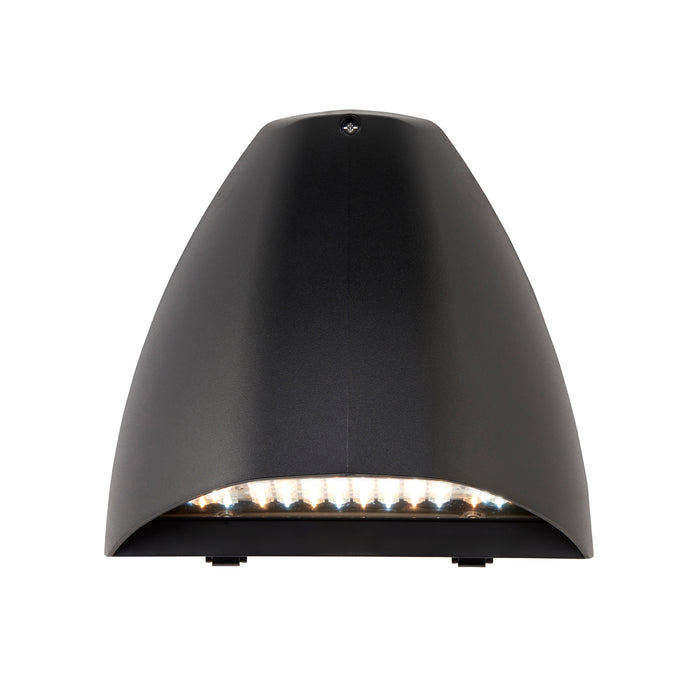

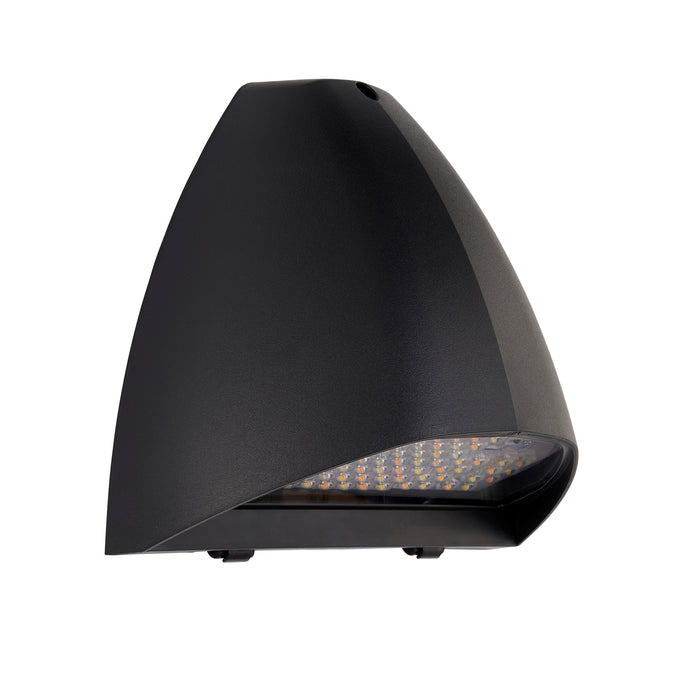

Saxby 121022 Forge CCT 8W/14W IP65 LED Wall Pack with Photocell – Matt Black

The Saxby Forge CCT LED Wall Pack with integrated photocell offers a smart and energy-efficient outdoor lighting solution for commercial, industrial and residential applications. Featuring selectable power settings of 8W or 14W and delivering up to 1,890 lumens, this versatile wall light provides reliable illumination while helping to reduce energy consumption.

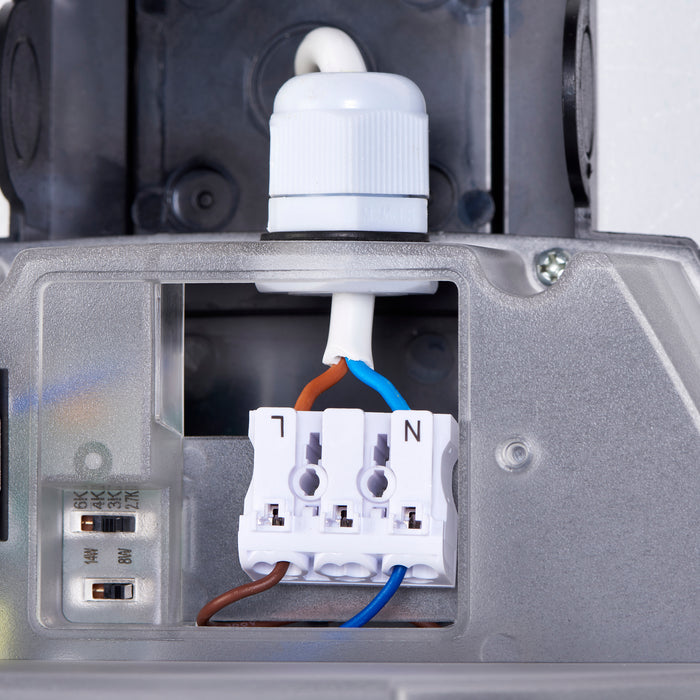

Equipped with a built-in adjustable photocell sensor, the fitting automatically switches on and off according to ambient light levels. The sensor can be adjusted between 5 and 400 lux, allowing you to tailor operation to your specific requirements. An integrated CCT selector also enables you to choose between 2700K, 3000K, 4000K and 6000K colour temperatures, providing maximum flexibility for a wide range of environments.

Constructed from durable polycarbonate and finished in textured matt black, the Forge Wall Pack is designed to withstand demanding outdoor conditions. Its IP65 weatherproof rating ensures dependable performance throughout the year, making it ideal for security, pathway and perimeter lighting applications.

Key Features

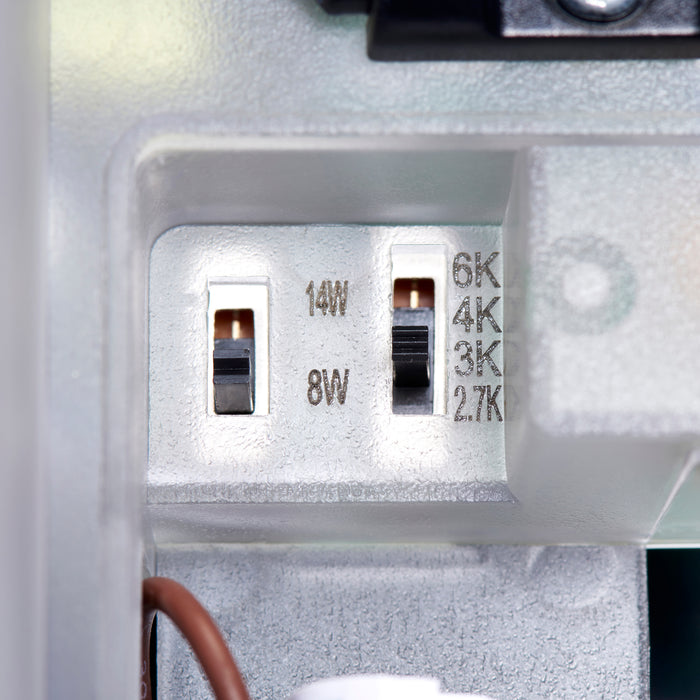

• Selectable power output: 8W or 14W
• Selectable colour temperatures: 2700K, 3000K, 4000K and 6000K
• Integrated adjustable photocell sensor
• Photocell sensitivity adjustable from 5 to 400 lux
• Automatic dusk-to-dawn operation for improved energy efficiency
• Maximum light output of 1,890 lumens
• High efficacy of up to 135 lumens per watt
• IP65-rated weatherproof protection
• Durable polycarbonate construction
• Matt black textured finish with clear polycarbonate diffuser
• Complete with LED driver
• Class II double-insulated fitting

Technical Specification

• Manufacturer: Saxby
• Part Number: 121022
• Product Range: Forge CCT Photocell
• Power Consumption: 8W / 14W Selectable

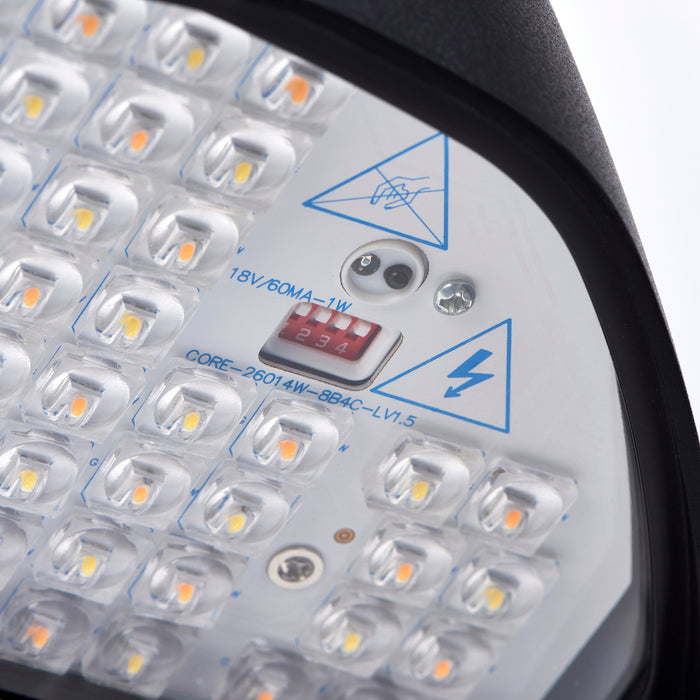

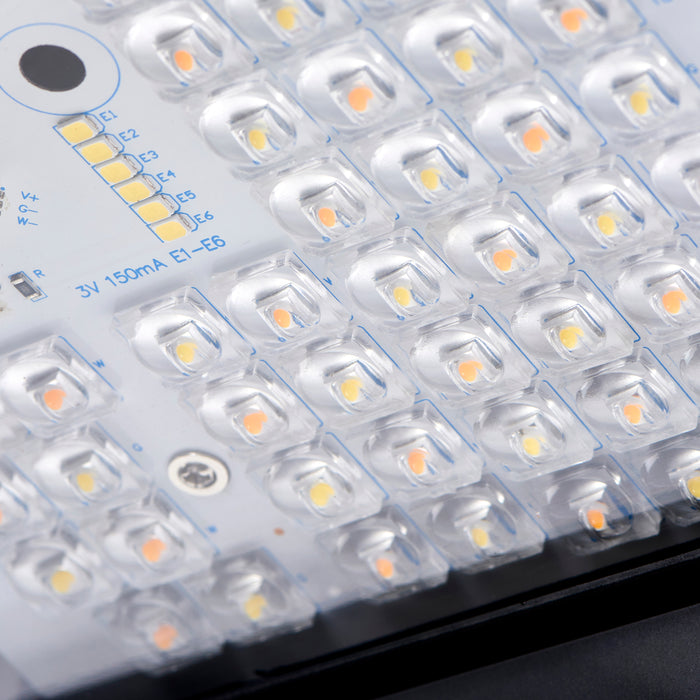

• Light Source: Integrated SMD 2835 LED Module
• Maximum Lumen Output: 1,890lm
• Efficiency: Up to 135lm/W
• Colour Temperatures: 2700K / 3000K / 4000K / 6000K
• Photocell Adjustment Range: 5–400 Lux
• IP Rating: IP65
• Electrical Class: Class II
• Finish: Matt Black Textured
• Material: Polycarbonate
• Projection: 134mm
• Height: 232mm
• Width: 251mm

Ideal Applications

Perfect for building perimeters, entrances, walkways, loading bays, service areas, car parks, schools, commercial premises and residential developments where automatic dusk-to-dawn lighting is required.

Data Sheet:

Download Data Sheet
