Saxby 121020 8W/12W/15W Tri-Wattage CCT Bulkhead Conversion Plate 2700K/3000K/4000K/5000K/6000K

IN STOCK ITEM: Dispatch in 2–3 Days

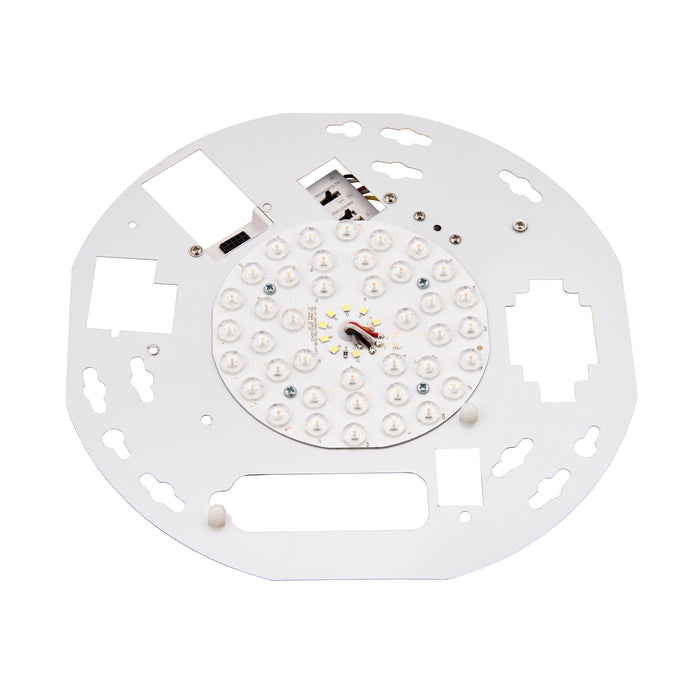

The Saxby 121020 LED Bulkhead Conversion Plate provides a simple and cost-effective way to upgrade existing 2D bulkhead fittings to modern, energy-efficient LED technology. Featuring tri-wattage selection (8W, 12W or 15W) and five selectable colour temperatures (2700K, 3000K, 4000K, 5000K and 6000K), it allows installers to tailor both brightness and light colour to suit the application.

Delivering up to 2250 lumens with an impressive efficacy of 150 lm/W, this conversion plate offers outstanding performance whilst reducing energy consumption. Supplied complete with an LED driver, it provides a fast and reliable retrofit solution for commercial, residential and communal lighting upgrades.

Key Features

• LED conversion plate for upgrading existing 2D bulkhead fittings

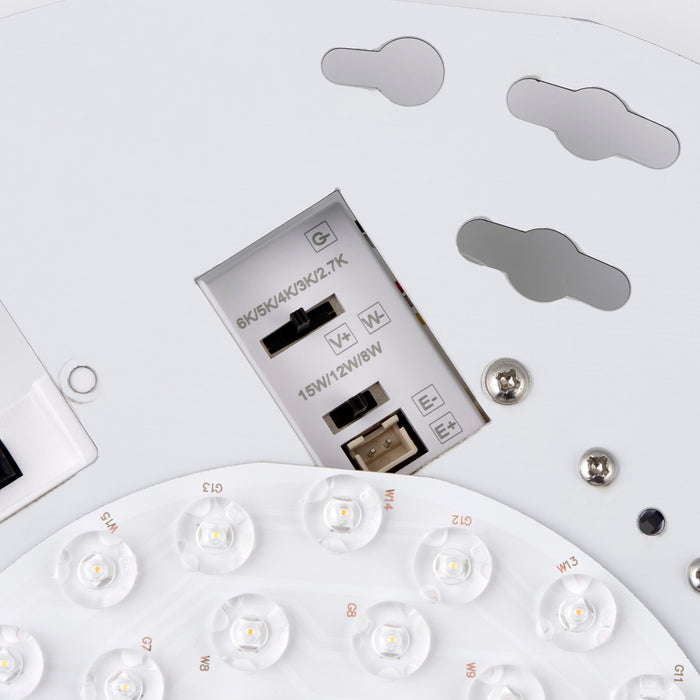

• Selectable wattage: 8W, 12W or 15W
• Five selectable colour temperatures: 2700K, 3000K, 4000K, 5000K and 6000K
• Maximum light output of 2250 lumens
• High efficiency of up to 150 lm/W

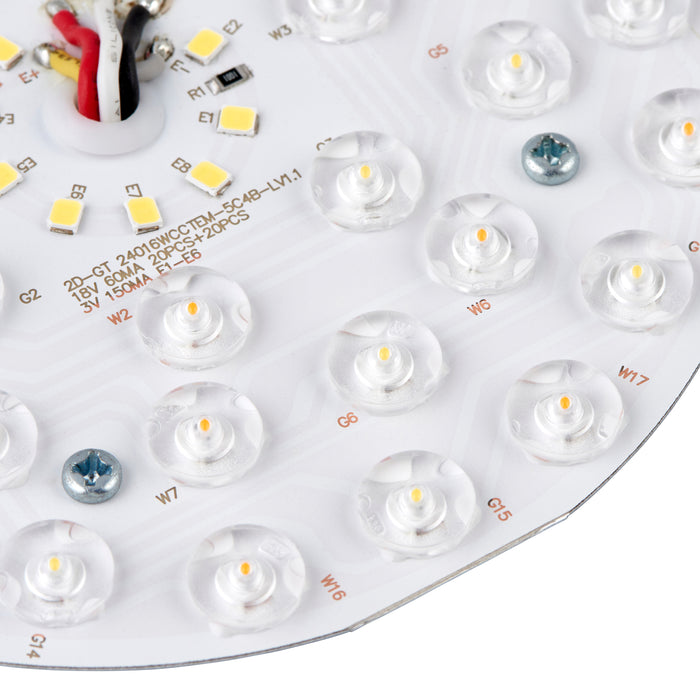

• Integrated SMD 2835 LED module
• Complete with LED driver
• Durable steel and polycarbonate construction
• Gloss white finish
• Quick and straightforward retrofit installation

Technical Specification

• Manufacturer: Saxby
• Part Number: 121020
• Product Type: LED Bulkhead Conversion Plate
• Power Selection: 8W / 12W / 15W
• Light Source: Integrated SMD 2835 LED Module
• LED Driver: Included
• Colour Temperature: 2700K / 3000K / 4000K / 5000K / 6000K (Selectable)
• Maximum Light Output: 2250 Lumens
• Luminous Efficacy: 150 lm/W
• Construction: Steel & Polycarbonate
• Finish: Gloss White
• Electrical Class: Class I
• Dimensions: 250mm Diameter × 30mm Projection

Applications

Ideal for upgrading existing 2D bulkhead fittings in communal areas, stairwells, corridors, apartment blocks, schools, offices, healthcare facilities, commercial premises and residential properties, providing an efficient LED retrofit solution with flexible wattage and colour temperature selection.

Data Sheet:

Download the Saxby 121020 Data Sheet
