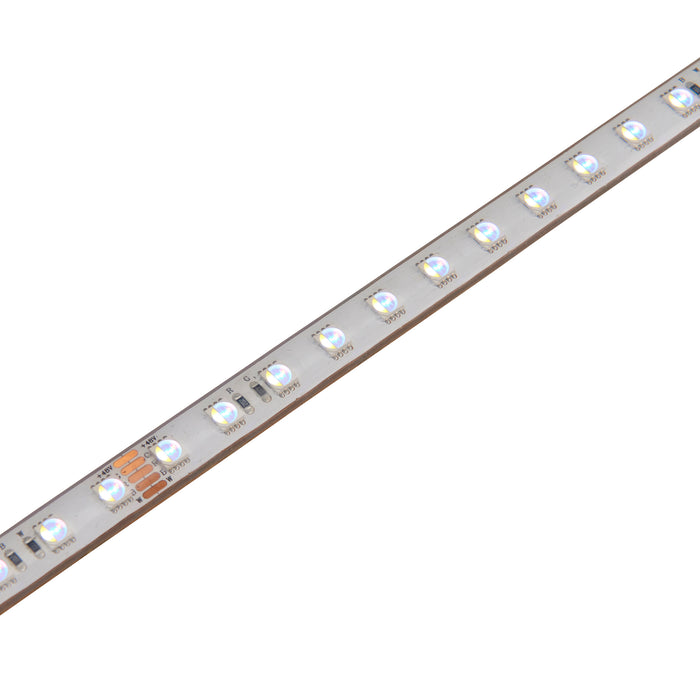

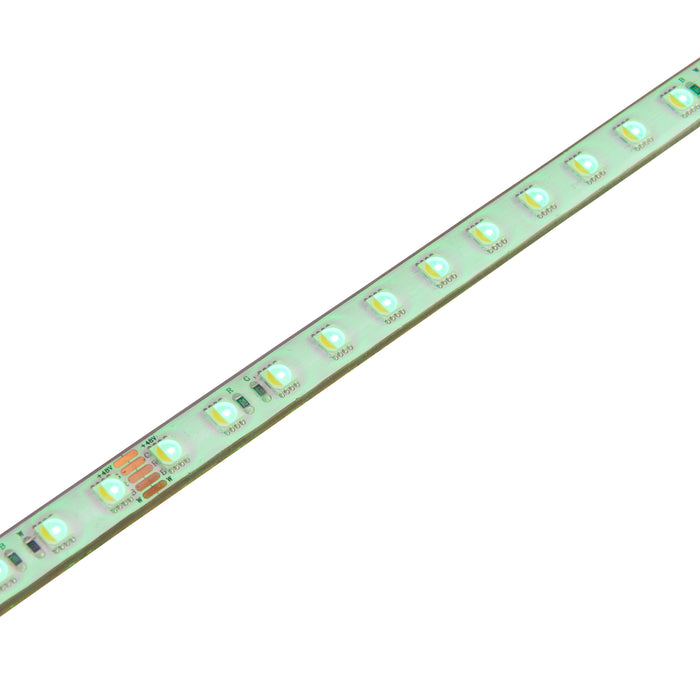

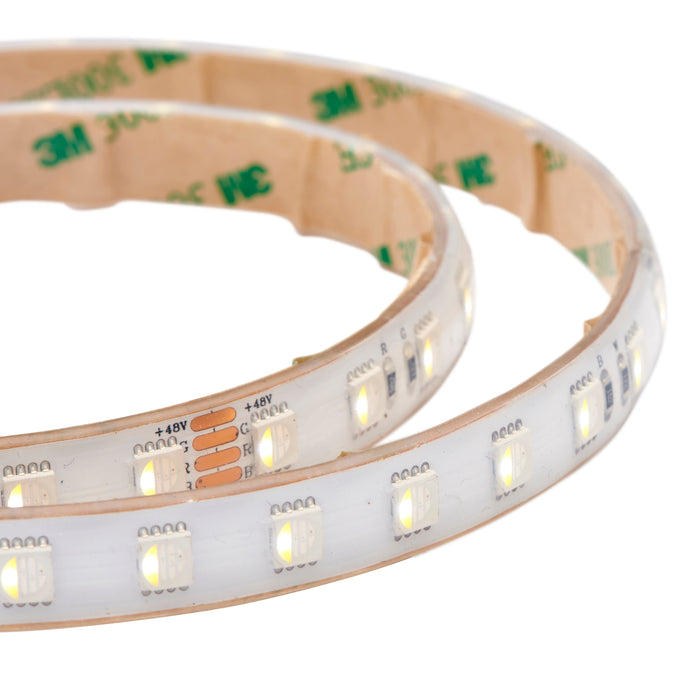

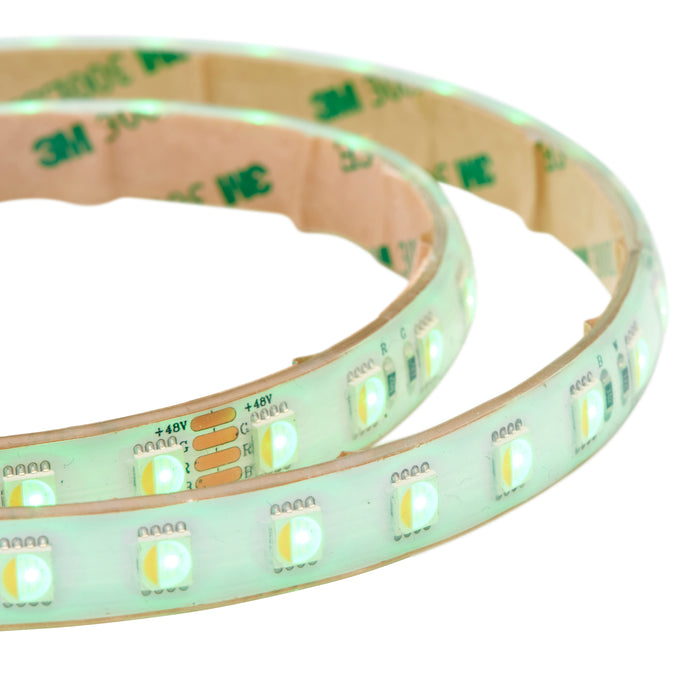

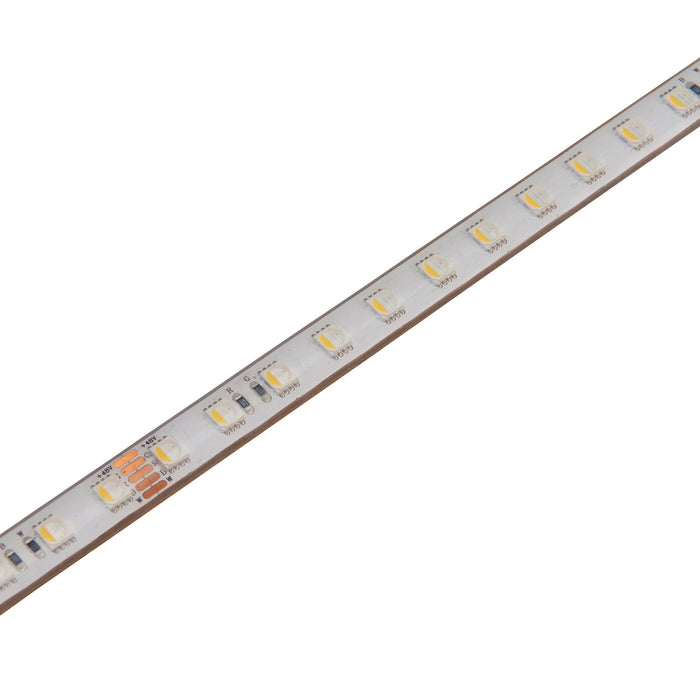

Saxby 120343 OrionRGBW 48V 11.5W/m IP67 LED Strip 4000K - 30m

The Saxby 120343 OrionRGBW 48V LED Strip is a versatile flexible lighting solution combining RGB colour capability with dedicated 4000K cool white illumination. With an IP67 rating, it is designed for suitable indoor and outdoor installations where colourful lighting effects and practical white light are required from the same LED tape.

Supplied as a generous 30-metre roll, the OrionRGBW operates at 48V and consumes 11.5W per metre. Its SMD 5050 LED technology delivers up to 8,220 lumens across the complete roll, making it a flexible choice for residential, commercial, retail and hospitality lighting projects.

The flexible construction allows the LED strip to be cut, joined and installed to suit bespoke lighting layouts. A maximum continuous run of 15 metres makes it particularly useful for larger installations requiring extended lengths of RGBW lighting.

Key Features

• Flexible OrionRGBW LED strip
• RGB colour capability with dedicated 4000K cool white illumination
• 48V operating voltage
• 11.5W per metre power consumption
• Supplied as a 30m roll
• Maximum continuous run of 15m
• IP67 rated for suitable indoor and outdoor installations
• SMD 5050 LED technology
• Up to 8,220 lumens across the complete 30m roll
• Luminous efficacy of up to 24lm/W
• Flexible construction for convenient cutting, joining and installation
• Ideal for accent, feature, task and decorative lighting

Specification

• Brand: Saxby
• Product Code: 120343
• Range: OrionRGBW
• Product Type: RGBW Flexible LED Strip
• Voltage: 48V
• Power Consumption: 11.5W/m
• Total Wattage: 345W
• LED Type: SMD 5050
• White Colour Temperature: 4000K Cool White
• Total Light Output: 8,220 Lumens
• Luminous Efficacy: 24lm/W
• IP Rating: IP67
• Maximum Continuous Run: 15m
• Roll Length: 30m
• Length: 30,000mm
• Width: 12mm
• Height: 4.6mm
• Material: Polymer Film
• Colour: White
• Electrical Class: Class III

Applications

Ideal for residential, commercial, retail and hospitality projects requiring a combination of RGB colour effects and functional 4000K cool white illumination. Typical applications include architectural features, coving, shelving, cabinetry, displays, accent lighting and decorative installations.

Please Note: The 30m roll supports a maximum continuous run of 15m. A compatible 48V driver, RGBW controller and appropriate connection accessories are required. For outdoor or moisture-prone installations, ensure all connections and associated components maintain the required level of ingress protection.

Data Sheet:

Click Here for Data Sheet
