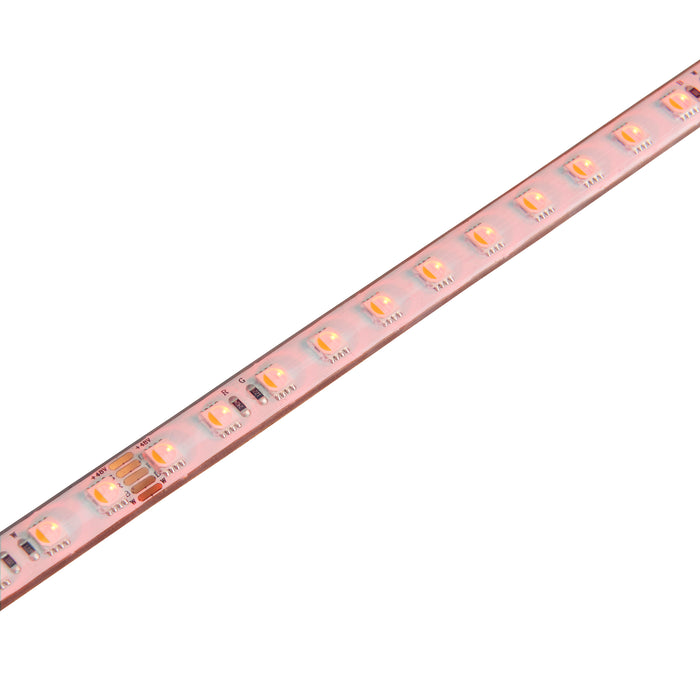

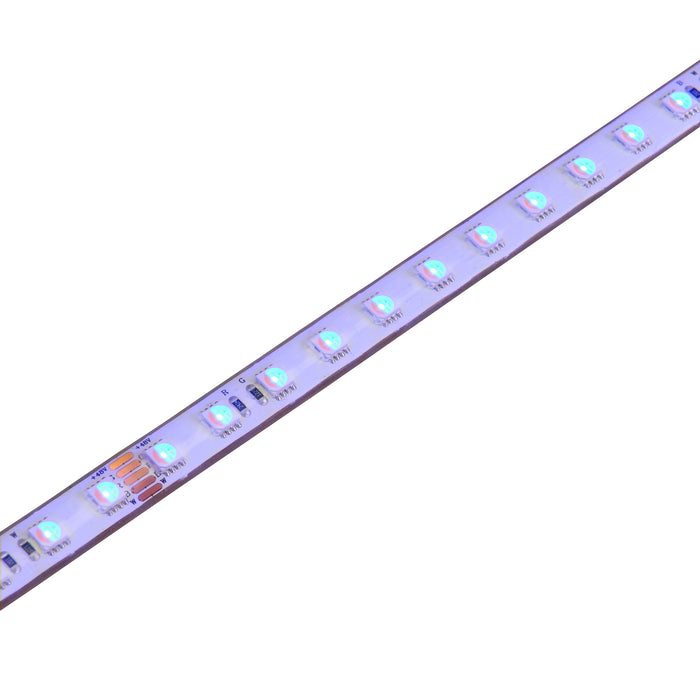

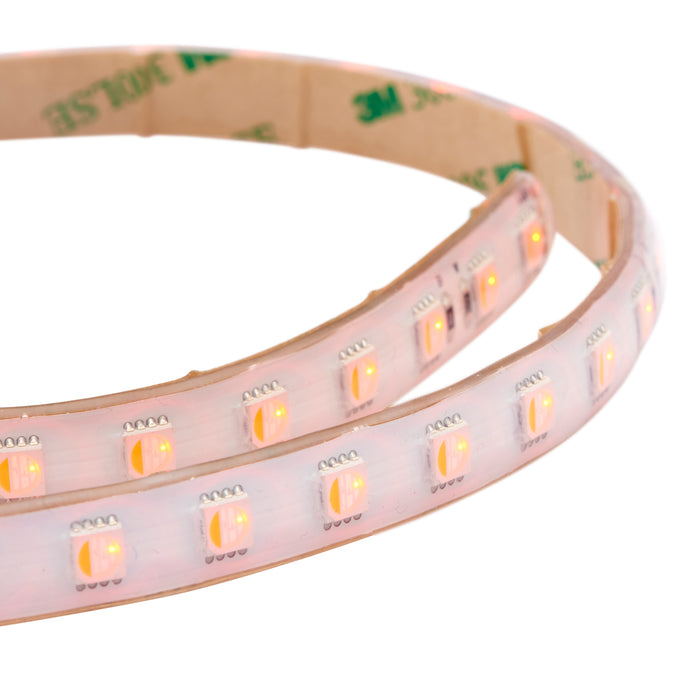

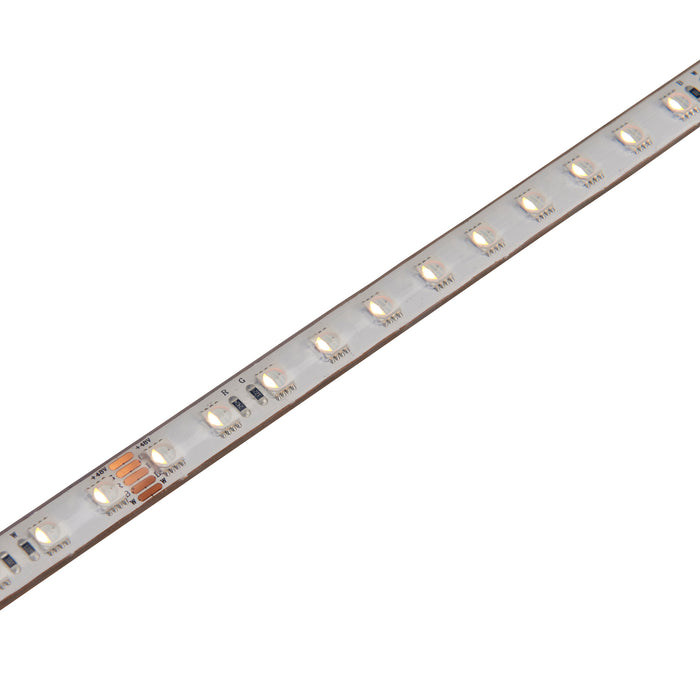

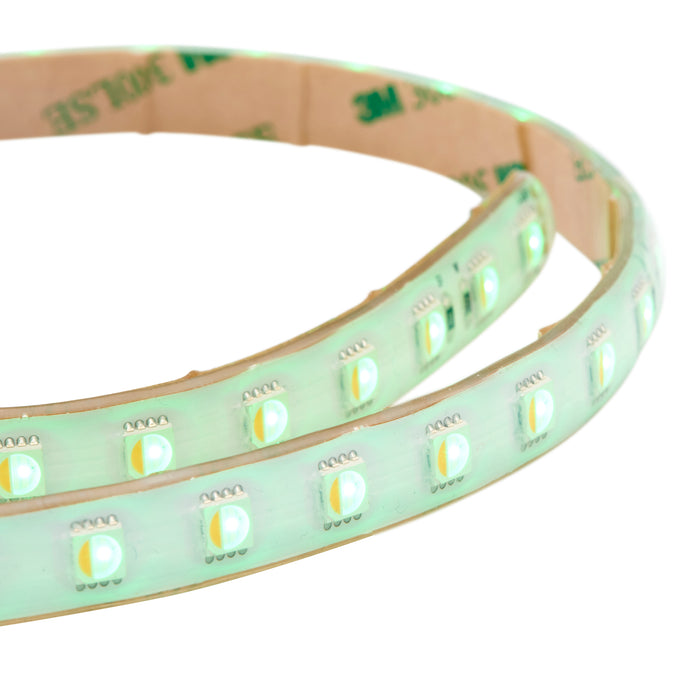

Saxby 120342 OrionRGBW 48V 11.5W/m IP67 LED Strip 3000K - 30m

The Saxby 120342 OrionRGBW 48V LED Strip is a versatile flexible lighting solution combining RGB colour capability with dedicated 3000K warm white illumination. Its IP67 rating makes it suitable for appropriate indoor and outdoor applications, providing greater flexibility for decorative, accent and architectural lighting projects.

Operating at 48V with a power consumption of 11.5W per metre, this OrionRGBW LED tape is supplied as a generous 30-metre roll. The integrated SMD 5050 LED technology delivers up to 7,770 lumens across the complete roll, combining colourful RGB effects with comfortable warm white lighting.

The flexible tape construction makes the strip convenient to cut, join and install for bespoke lighting layouts. With a maximum continuous run of 15 metres, it is well suited to larger residential and commercial installations where extended lengths of RGBW lighting are required.

Key Features

• Flexible OrionRGBW LED strip
• RGB colour capability with dedicated warm white illumination
• 3000K warm white colour temperature
• 48V operating voltage
• 11.5W per metre power consumption
• Supplied as a 30m roll
• Maximum continuous run of 15m
• IP67 rated for suitable indoor and outdoor applications
• SMD 5050 LED technology
• Up to 7,770 lumens across the complete roll
• Flexible design for convenient cutting, joining and installation
• Ideal for accent, task, architectural and decorative lighting

Specification

• Brand: Saxby
• Product Code: 120342
• Range: OrionRGBW
• Product Type: RGBW Flexible LED Strip
• Voltage: 48V
• Power Consumption: 11.5W/m
• Total Wattage: 345W
• LED Type: SMD 5050
• White Colour Temperature: 3000K Warm White
• Total Light Output: 7,770 Lumens
• Luminous Efficacy: 23lm/W
• IP Rating: IP67
• Maximum Continuous Run: 15m
• Roll Length: 30m
• Height: 4.6mm
• Width: 12mm
• Material: Polymer Film
• Colour: White
• Electrical Class: Class III

Applications

The Saxby OrionRGBW LED strip is ideal for residential, commercial, retail and hospitality lighting schemes requiring both coloured effects and 3000K warm white illumination. Suitable applications include architectural features, coving, displays, cabinetry, shelving, accent lighting and decorative installations.

Please Note: The 30m roll supports a maximum continuous run of 15m. A compatible 48V driver, RGBW controller and appropriate connection accessories are required. For outdoor or moisture-prone installations, all connections and associated components should maintain the required level of ingress protection.

Data Sheet:

Click Here for Data Sheet
