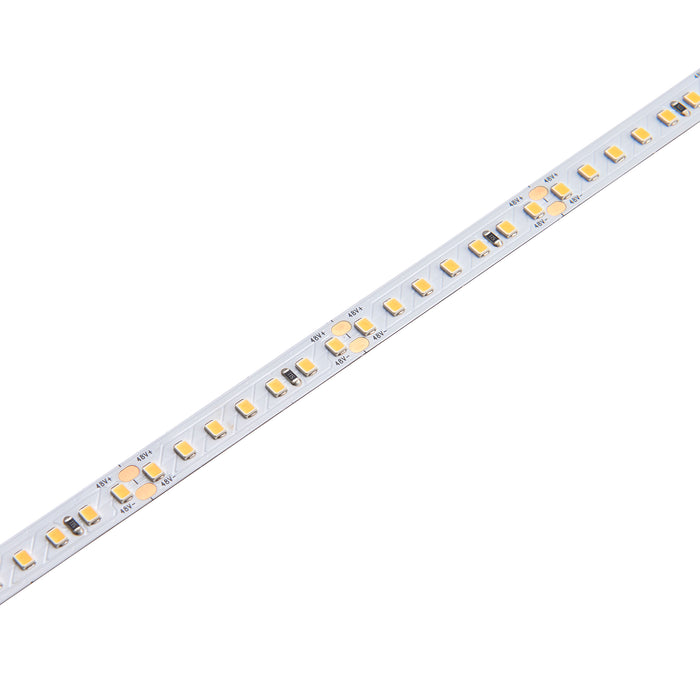

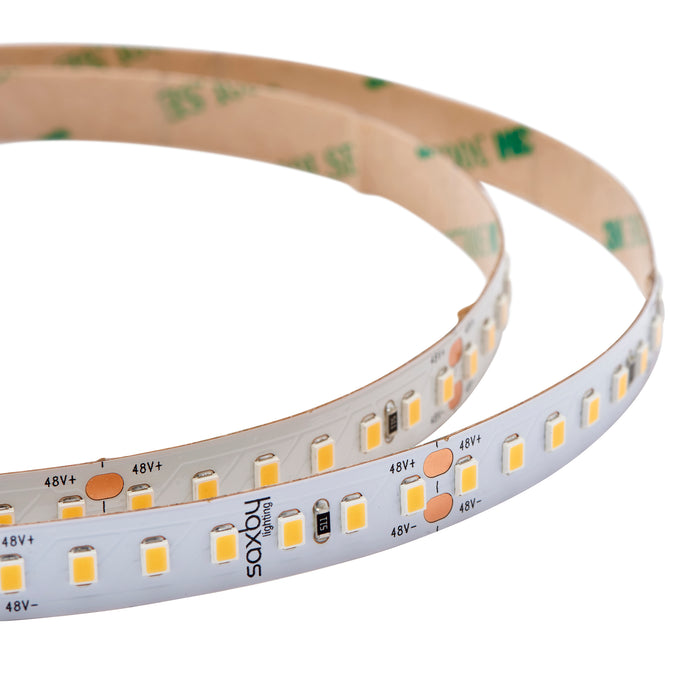

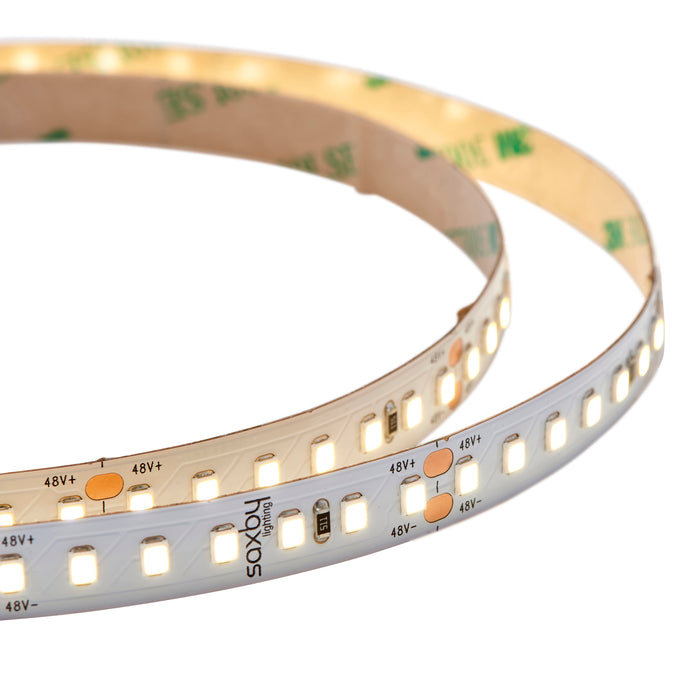

Saxby 120339 Orion20 48V 18W/m IP20 LED Strip 4000K - 30m

The Saxby 120339 Orion20 48V LED Strip is a high-output flexible lighting solution designed for professional indoor installations. Supplied as a 30-metre roll, it delivers crisp 4000K cool white illumination, making it an excellent choice for task, accent, display and decorative lighting in residential and commercial environments.

Operating at 48V with a power consumption of 18W per metre, the Orion20 combines powerful illumination with efficient performance. Its SMD 2835 LED technology provides up to 60,987 lumens across the complete 30m roll, with a luminous efficacy of up to 113lm/W.

The flexible tape can be cut and joined to accommodate different installation layouts, helping installers create tailored lighting schemes. With a maximum continuous run length of 15 metres, it is particularly suitable for larger projects requiring consistent, high-output LED lighting.

Key Features

• Professional 48V flexible LED strip lighting
• Supplied as a 30m roll
• High-output 18W per metre performance
• 4000K cool white colour temperature
• Up to 60,987 lumens across the complete 30m roll
• High luminous efficacy of up to 113lm/W
• SMD 2835 LED technology
• Maximum continuous run length of 15m
• Flexible tape can be cut and joined to suit different installations
• IP20 rated for suitable dry indoor environments
• Slim 10mm width for discreet integration
• Ideal for task, accent, display and decorative lighting

Specification

• Brand: Saxby
• Product Code: 120339
• Range: Orion20
• Product Type: Flexible LED Strip Tape
• Voltage: 48V
• Power Consumption: 18W/m
• Total Wattage: 540W
• LED Type: SMD 2835
• Colour Temperature: 4000K Cool White
• Total Light Output: 60,987 Lumens
• Luminous Efficacy: 113lm/W
• IP Rating: IP20
• Maximum Continuous Run: 15m
• Roll Length: 30m
• Height: 2mm
• Width: 10mm
• Material: Polymer Film
• Colour: White
• Electrical Class: Class III

Applications

The Saxby Orion20 LED tape is ideal for offices, shops, hospitality venues and residential interiors. Typical applications include architectural features, coving, shelving, cabinetry, retail displays and task lighting where bright and consistent 4000K cool white illumination is required.

Please Note: The 30m roll has a maximum continuous run length of 15m. This product is IP20 rated and intended for suitable dry indoor locations. A compatible 48V driver and any required connectors or control accessories should be selected separately.

Data Sheet:

Click Here for Data Sheet
