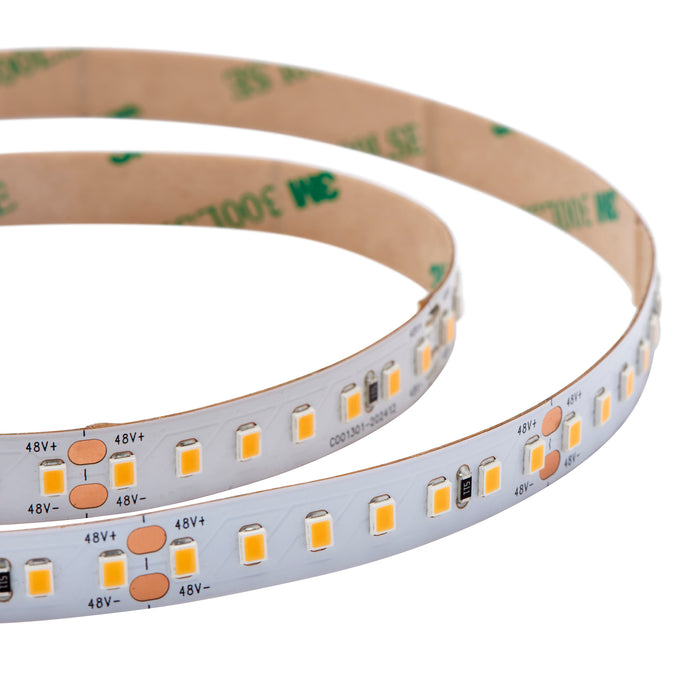

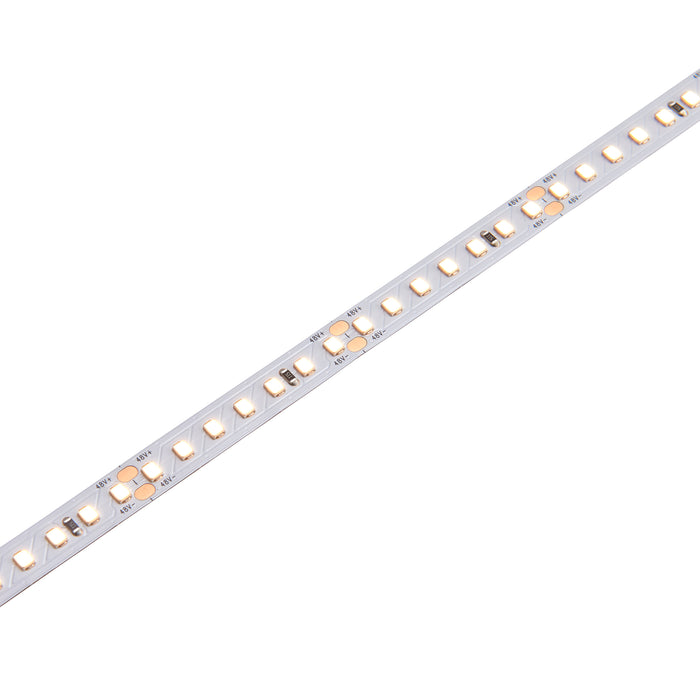

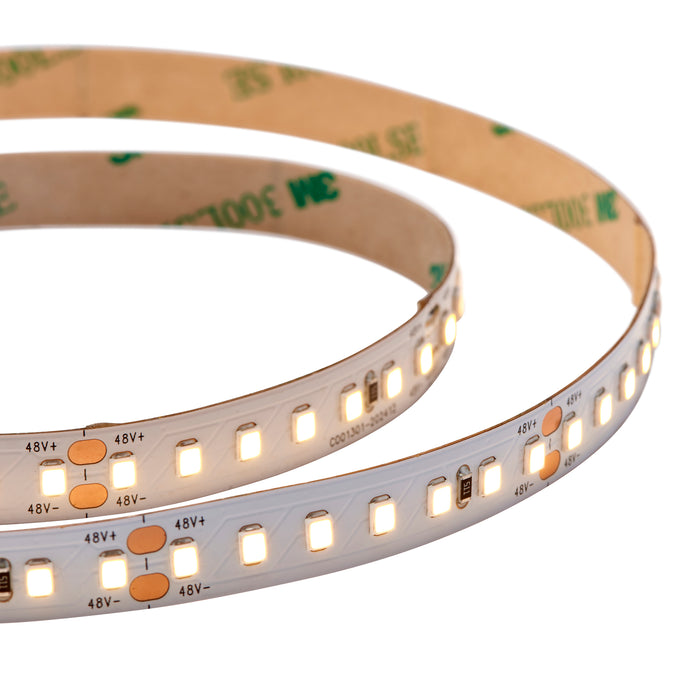

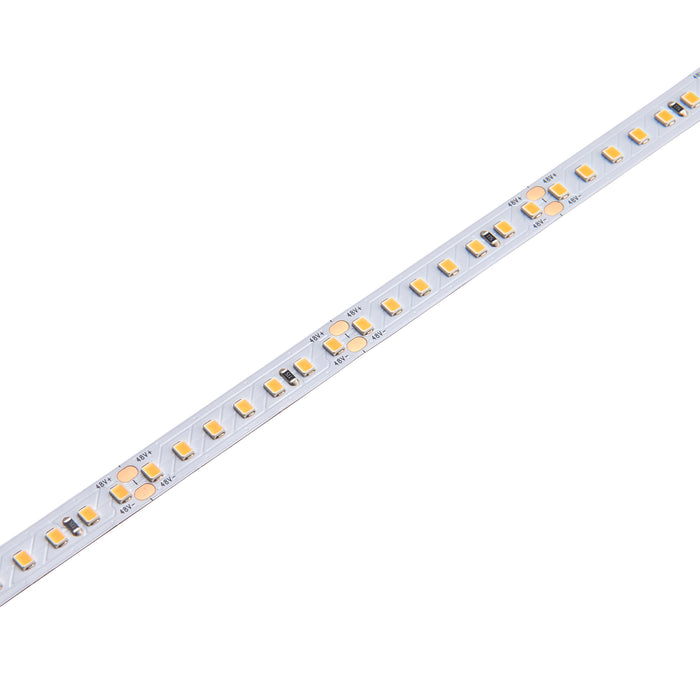

Saxby 120338 Orion20 48V 18W/m IP20 LED Strip 3000K - 30m

The Saxby 120338 Orion20 48V LED Strip is a high-output flexible lighting solution designed for professional indoor installations. Supplied as a 30-metre roll, it produces a comfortable 3000K warm white light, making it ideal for accent, task and decorative lighting across residential, retail, hospitality and commercial environments.

Operating at 48V and consuming 18W per metre, this Orion20 LED tape delivers powerful and efficient illumination. The complete 30m roll provides up to 56,160 lumens, while SMD 2835 LED technology achieves a luminous efficacy of up to 104lm/W.

The flexible LED tape can be cut and joined to accommodate different installation layouts, providing greater versatility for bespoke lighting projects. With a maximum continuous run length of 15 metres, it is suitable for creating substantial runs of consistent warm white illumination.

Key Features

• High-output 48V flexible LED strip
• Supplied as a 30m roll for larger lighting installations
• 18W per metre power consumption
• 3000K warm white colour temperature
• Up to 56,160 lumens across the complete 30m roll
• Efficient output of up to 104lm/W
• SMD 2835 LED technology
• Maximum continuous run length of 15m
• Flexible tape can be cut and joined to suit the installation
• IP20 rated for suitable dry indoor environments
• Slim 10mm width for discreet installation
• Ideal for accent, task and decorative lighting applications

Specification

• Brand: Saxby
• Product Code: 120338
• Range: Orion20
• Product Type: Flexible LED Strip Tape
• Voltage: 48V
• Power Consumption: 18W/m
• Total Wattage: 540W
• LED Type: SMD 2835
• Colour Temperature: 3000K Warm White
• Total Light Output: 56,160 Lumens
• Luminous Efficacy: 104lm/W
• IP Rating: IP20
• Maximum Run Length: 15m
• Roll Length: 30m
• Height: 2mm
• Width: 10mm
• Material: Polymer Film
• Colour: White
• Electrical Class: Class III

Applications

Ideal for indoor architectural lighting, coving, shelving, cabinetry, retail displays, hospitality environments and task lighting where a powerful and continuous 3000K warm white LED light source is required.

Please Note: The 30m roll has a maximum continuous run length of 15m. This LED strip is IP20 rated for suitable dry indoor locations. A compatible 48V driver and any required connectors or control accessories should be selected separately.

Data Sheet:

Click Here for Data Sheet
