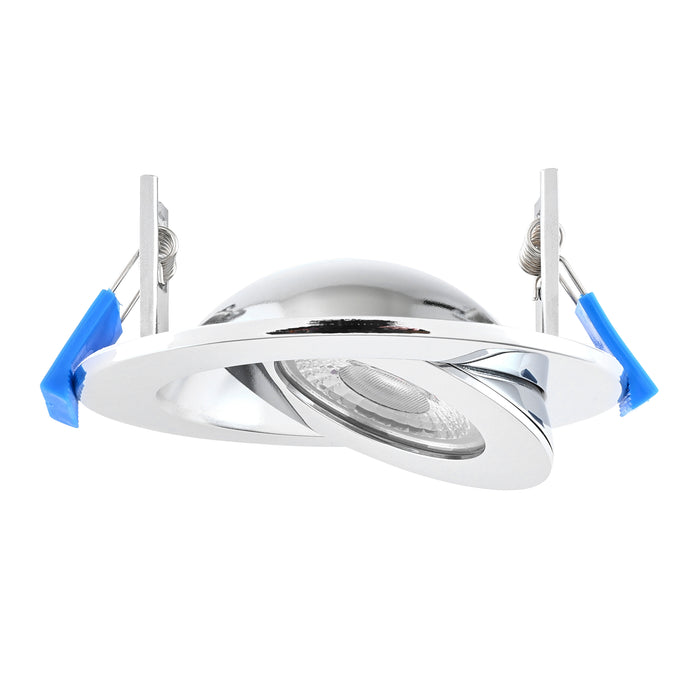

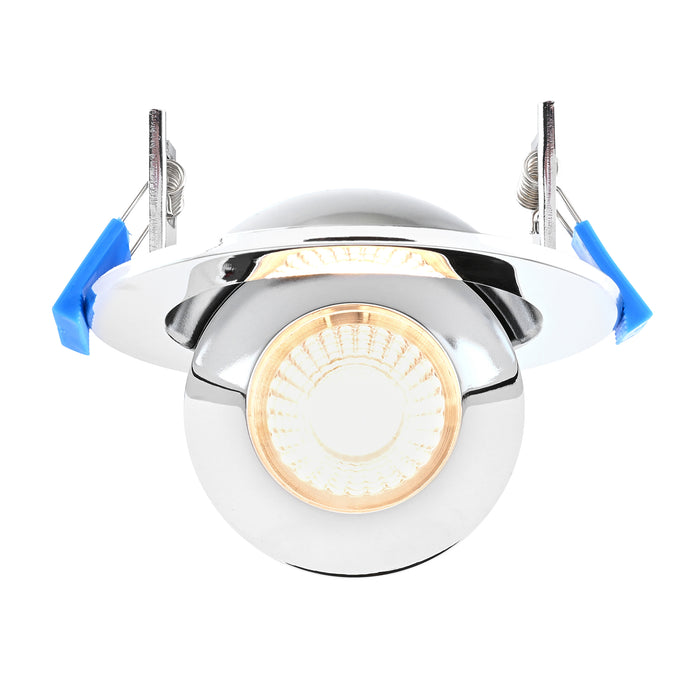

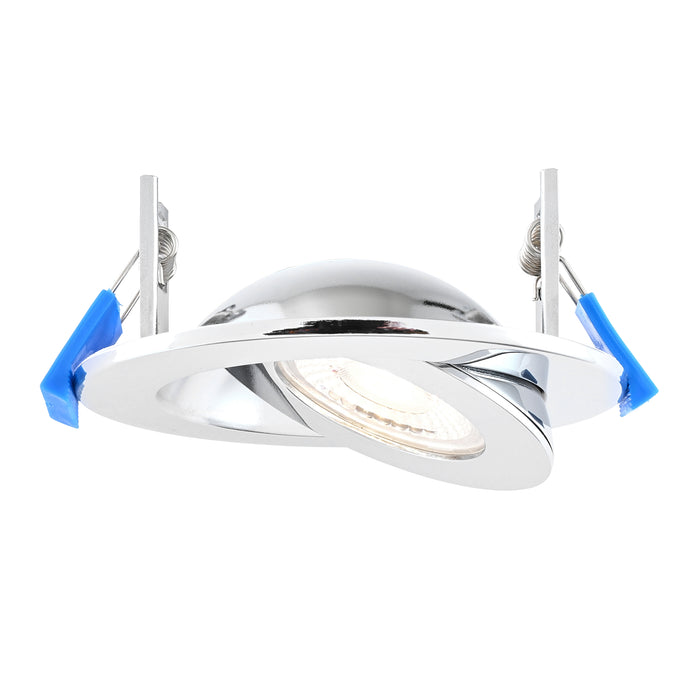

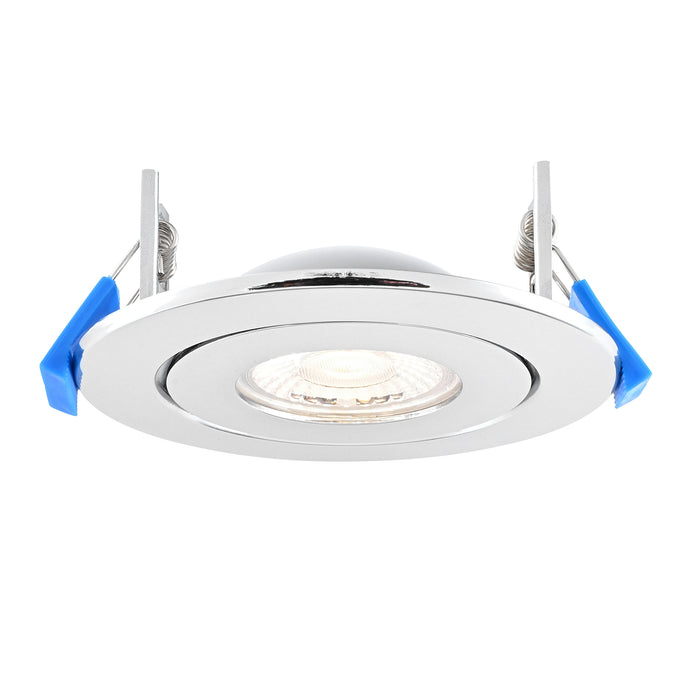

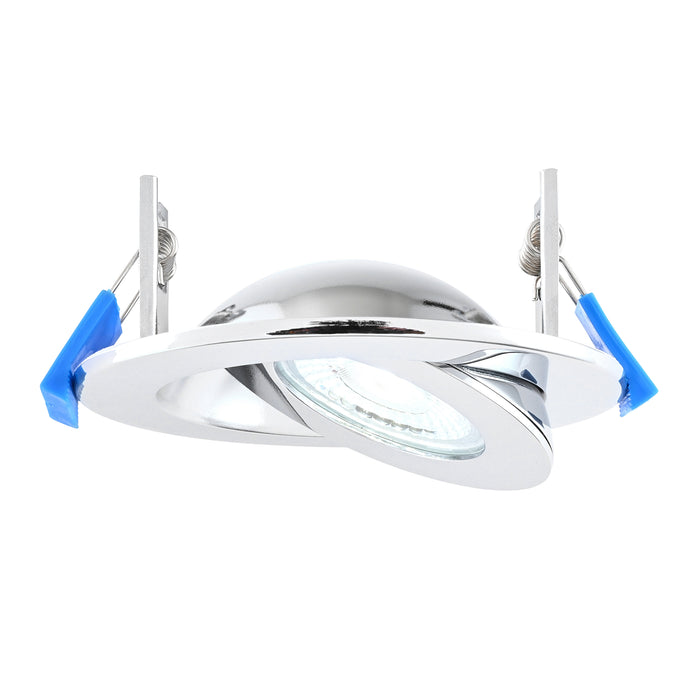

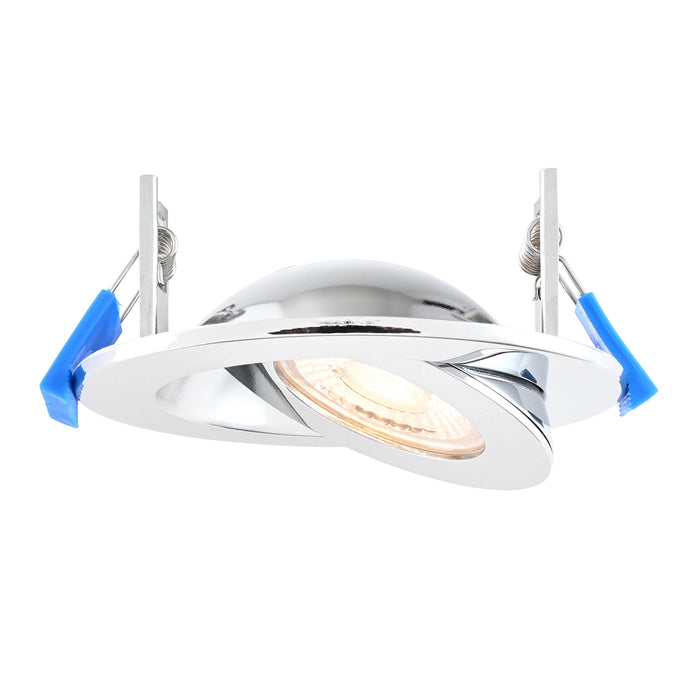

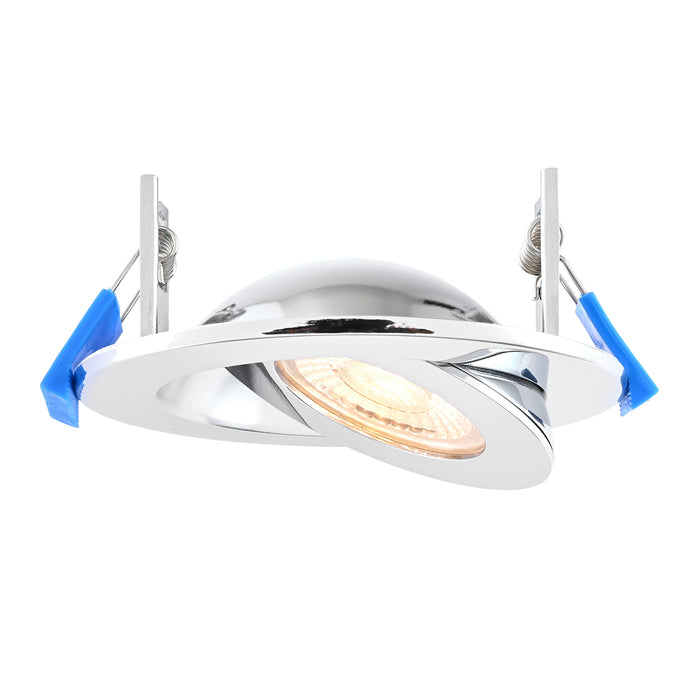

Saxby 119102 Shield360 CCT Tri-Wattage 4W/6W/8W IP44 Fire Rated Adjustable LED Downlight - Chrome

IN STOCK ITEM: Dispatch in 2–3 Days

The Saxby 119102 Shield360 LED Downlight is a versatile, fire-rated lighting solution designed for modern residential and commercial installations. Featuring selectable 4W, 6W or 8W power outputs together with four selectable colour temperatures, this downlight allows installers to tailor both brightness and light colour from a single fitting.

The integrated 3-way Plug & Play connector enables fast loop-in/loop-out wiring, reducing installation time. A fully adjustable head with 360° rotation allows precise light positioning, making it ideal for both general and accent lighting. Suitable for shallow ceiling voids, the fitting can be covered with insulation and is fully fire rated for 30, 60 and 90-minute ceilings.

Key Features

• Selectable wattage: 4W, 6W or 8W
• 4-way CCT selection: 2700K, 3000K, 4000K or 6000K
• 360° adjustable rotating downlight
• Integrated high-efficiency LED module
• Dimmable with compatible LED dimmers
• 3-way Plug & Play connector for quick installation and loop-in/loop-out wiring
• Suitable for shallow ceiling voids
• Can be covered with insulation
• Fire rated for 30, 60 and 90-minute ceilings
• IP44 rated for bathroom installations
• Suitable for Bathroom Zone 2 and Zone 1 when protected by a 30mA RCD
• Modern chrome finish

Technical Specification

• Manufacturer: Saxby
• Part Number: 119102
• Product Type: Fire Rated Adjustable LED Downlight
• Power Selectable: 4W / 6W / 8W
• Colour Temperature: 2700K / 3000K / 4000K / 6000K (Selectable)
• Light Output: Up to 800 Lumens
• Luminous Efficacy: Up to 100 lm/W
• LED Module: Integrated SMD 2835 LED
• Dimmable: Yes
• Rotation: 360°
• Connector: 3-Way Plug & Play
• Material: Die-Cast Aluminium Alloy, Steel & Acrylic
• Finish: Chrome
• IP Rating: IP44
• Electrical Class: Class II
• Fire Rating: 30, 60 & 90 Minutes
• Cut-Out Diameter: 90mm
• Dimensions: 110mm Diameter × 45mm Height × 3mm Projection

Applications

Perfect for bathrooms, kitchens, hallways, bedrooms, offices and commercial interiors where adjustable lighting, fire protection and installation flexibility are required. The selectable wattage and CCT make it ideal for both new installations and retrofit projects.

Data Sheet:

Download the Saxby 119102 Data Sheet
