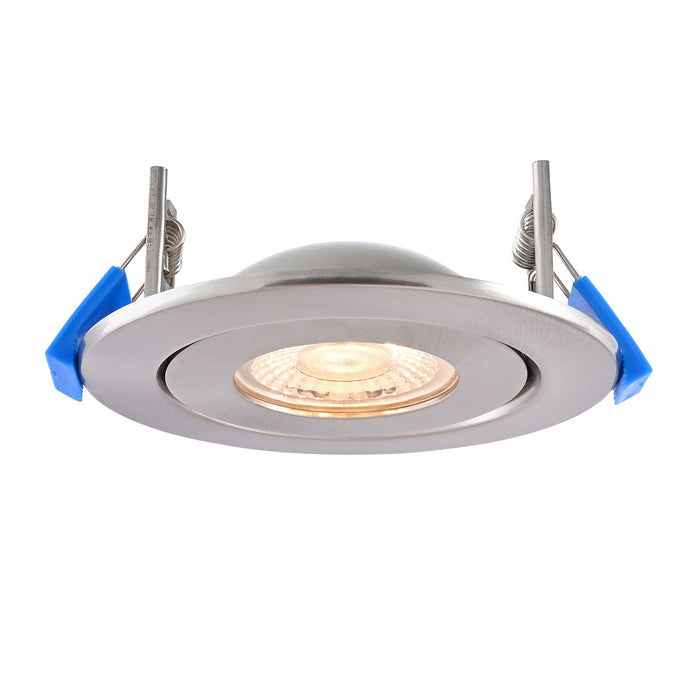

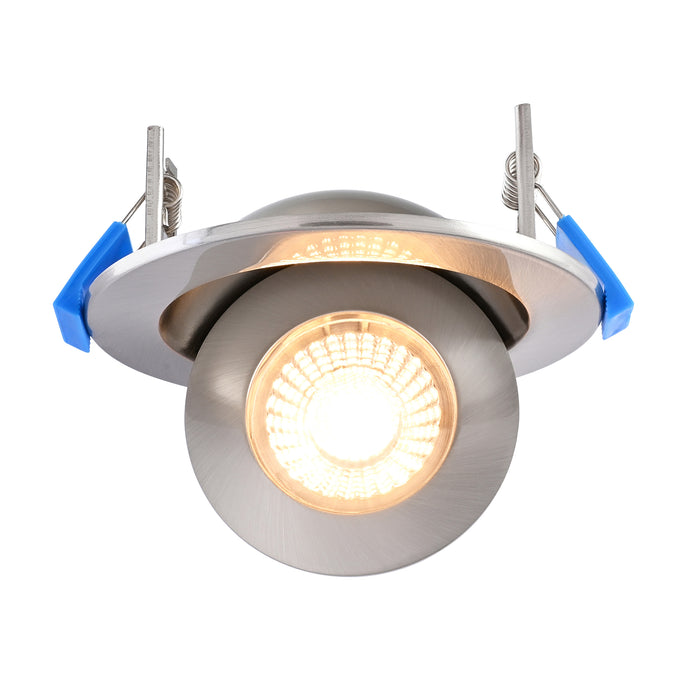

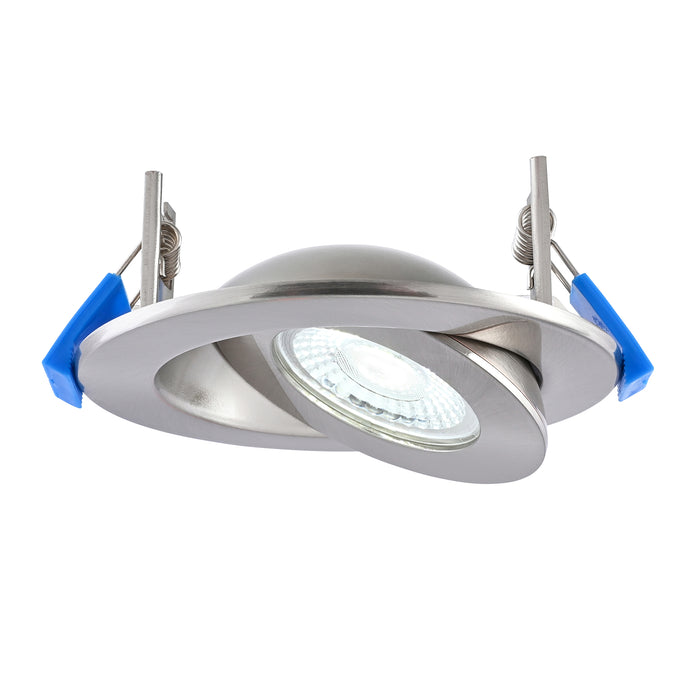

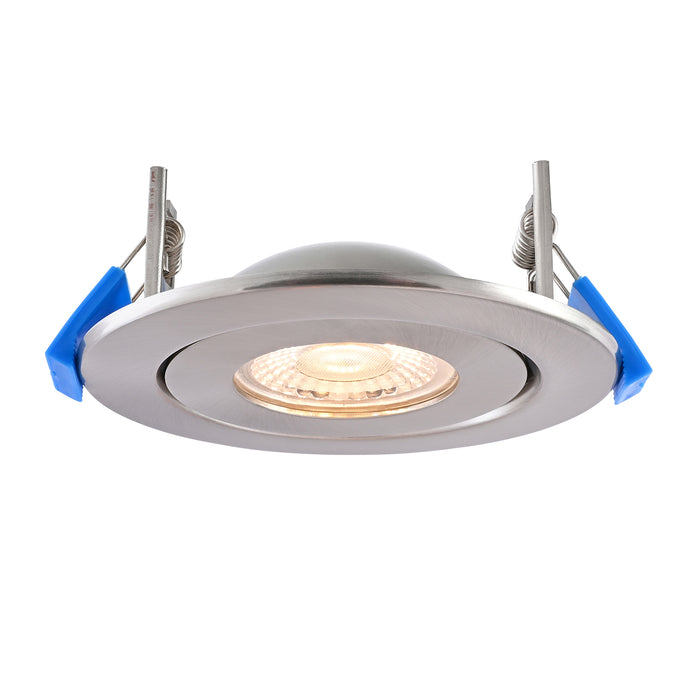

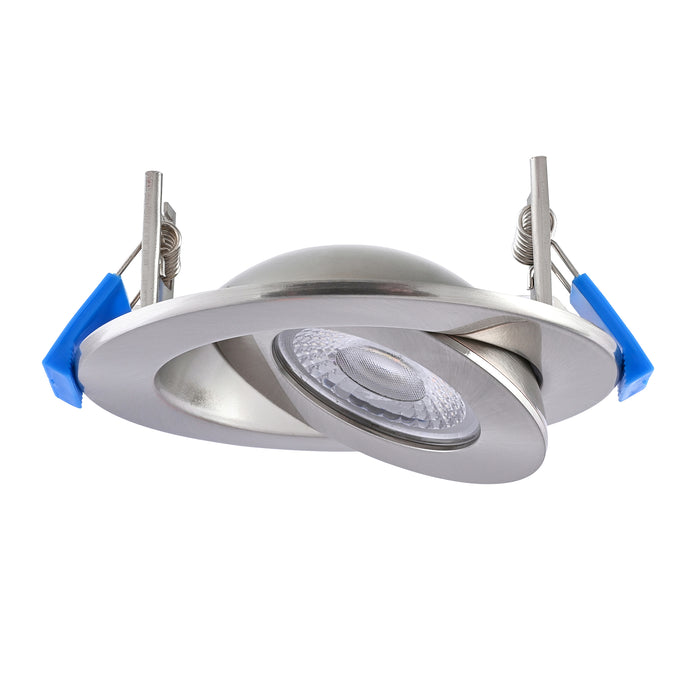

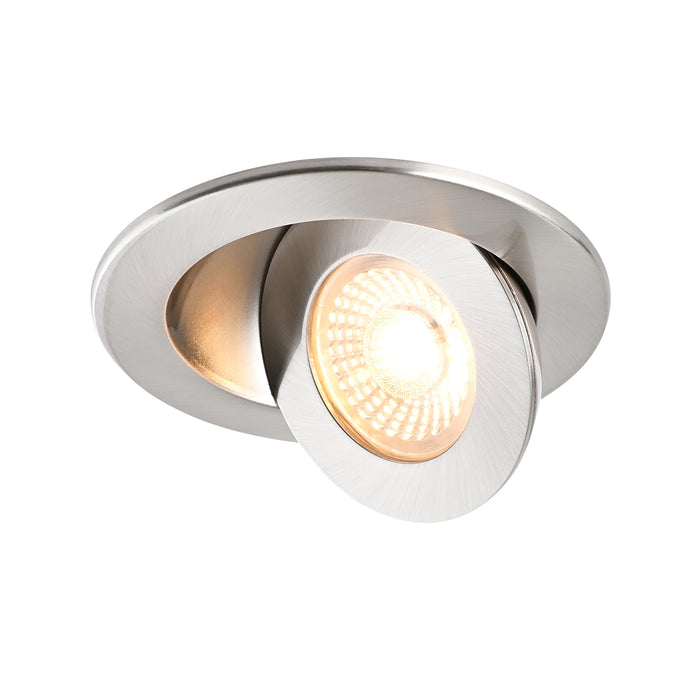

Saxby 119101 Shield360 CCT Tri-Wattage 4W/6W/8W IP44 Fire Rated Adjustable LED Downlight - Satin Nickel

IN STOCK ITEM: Dispatch in 2–3 Days

The Saxby 119101 Shield360 LED Downlight is a highly versatile fire-rated lighting solution designed for residential and commercial installations. Featuring selectable 4W, 6W or 8W power outputs and four selectable colour temperatures, this downlight allows installers to customise both brightness and light colour without changing the fitting.

Its innovative Plug & Play 3-way connector simplifies installation and enables easy loop-in/loop-out wiring. The adjustable head rotates through 360°, making it ideal for highlighting architectural features or directing light exactly where required. Suitable for shallow ceiling voids, the fitting is insulation-coverable, IP44 rated and fully fire rated for 30, 60 and 90-minute ceilings.

Key Features

• Tri-wattage selectable output: 4W, 6W or 8W
• Four selectable colour temperatures: 2700K, 3000K, 4000K and 6000K
• 360° adjustable rotating downlight
• Integrated LED module with high efficiency performance
• Dimmable with compatible LED dimmers
• 3-way Plug & Play connector for quick installation and loop-in/loop-out wiring
• Suitable for installation beneath insulation
• Fire rated for 30, 60 and 90-minute ceilings
• IP44 rated for bathroom installations
• Suitable for Bathroom Zone 2 and Zone 1 when protected by a 30mA RCD
• Contemporary satin nickel finish

Technical Specification

• Manufacturer: Saxby
• Part Number: 119101
• Product Type: Fire Rated Adjustable LED Downlight
• Power Selectable: 4W / 6W / 8W
• Colour Temperature: 2700K / 3000K / 4000K / 6000K (Selectable)
• Light Output: Up to 800 Lumens
• Luminous Efficacy: Up to 100 lm/W
• LED Module: Integrated SMD 2835
• Dimmable: Yes
• Rotation: 360°
• Connector: 3-Way Plug & Play
• Material: Die-Cast Aluminium Alloy, Steel & Acrylic
• Finish: Satin Nickel
• IP Rating: IP44
• Electrical Class: Class II
• Fire Rating: 30, 60 & 90 Minutes
• Cut-Out Diameter: 90mm
• Dimensions: 110mm Diameter × 45mm Height × 3mm Projection

Applications

Ideal for kitchens, bathrooms, hallways, bedrooms, living areas, offices and commercial spaces where flexible lighting, quick installation and certified fire protection are required. The adjustable design makes it suitable for both general and accent lighting.

Data Sheet:

Download the Saxby 119101 Data Sheet
