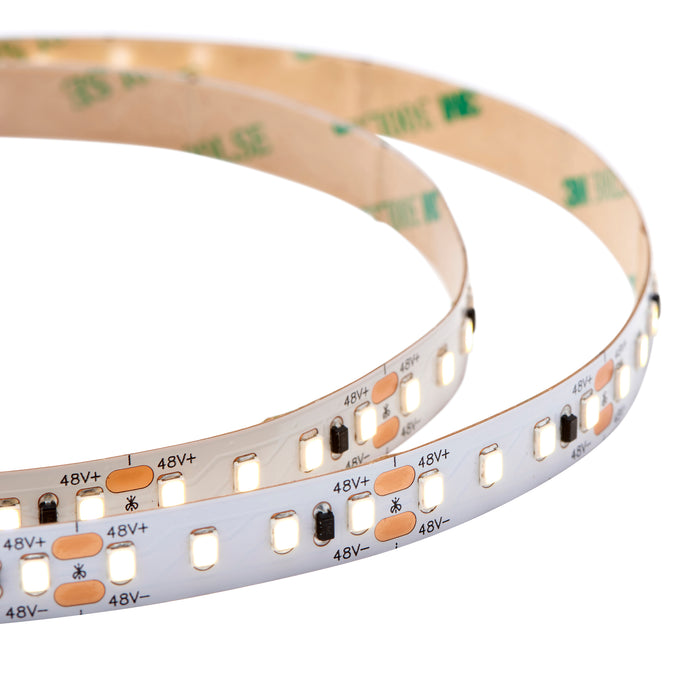

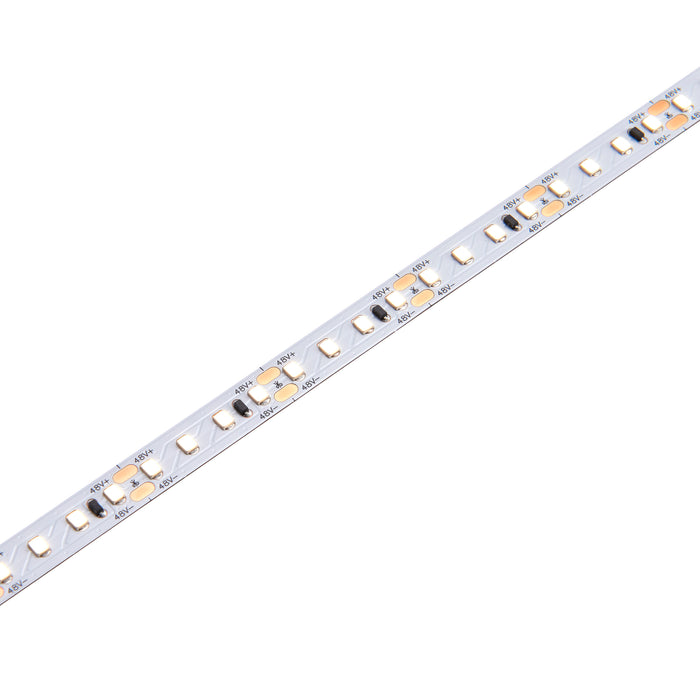

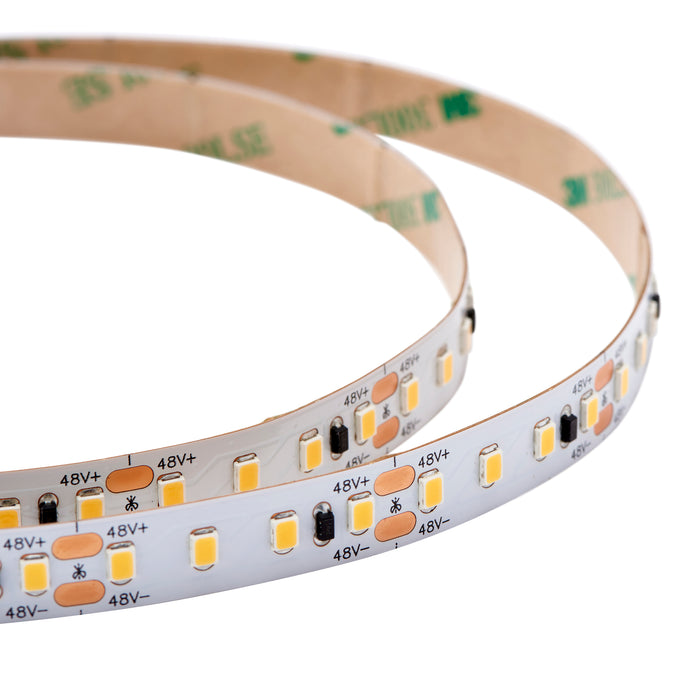

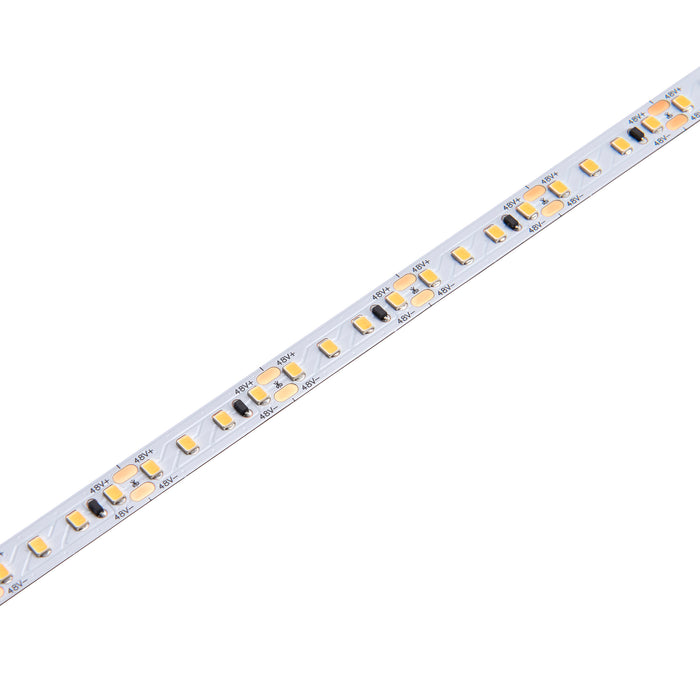

Saxby 118823 Orion20 48V 7.2W/m IP20 LED Strip 4000K - 35m

The Saxby 118823 Orion20 48V LED Strip is a flexible, energy-efficient lighting solution designed for long-run indoor installations. Supplied as a generous 35-metre roll, the tape produces a crisp 4000K cool white light, making it ideal for task, accent and decorative lighting in residential and commercial environments.

Operating at 48V with a power consumption of 7.2W per metre, the Orion20 delivers up to 28,350 lumens across the complete 35m length. Efficient SMD 2835 LED technology provides an efficacy of up to 113lm/W, combining bright illumination with efficient performance.

The flexible tape can be cut and joined to accommodate different installation layouts. With a maximum continuous run of 35 metres, it is particularly suitable for larger lighting projects where long, consistent runs of LED strip are required.

Key Features

• Professional 48V flexible LED strip lighting
• Supplied as a 35m continuous roll
• Maximum run length of 35m
• 7.2W per metre power consumption
• 4000K cool white light output
• Up to 28,350 lumens across the complete 35m roll
• High efficiency of up to 113lm/W
• SMD 2835 LED technology
• Flexible design can be cut and joined to suit the installation
• IP20 rated for suitable dry indoor environments
• Slim 10mm-wide profile for discreet installation
• Ideal for task, accent and decorative lighting

Specification

• Brand: Saxby
• Product Code: 118823
• Range: Orion20
• Product Type: Flexible LED Strip Tape
• Voltage: 48V
• Power Consumption: 7.2W/m
• Total Wattage: 252W
• LED Type: SMD 2835
• Colour Temperature: 4000K Cool White
• Total Light Output: 28,350 Lumens
• Luminous Efficacy: 113lm/W
• IP Rating: IP20
• Maximum Run Length: 35m
• Length: 35,000mm (35m)
• Width: 10mm
• Height: 1.4mm
• Material: Polymer Film
• Colour: White
• Electrical Class: Class III

Applications

Ideal for indoor LED lighting projects in homes, offices, retail spaces, hospitality venues and other commercial environments. Suitable applications include cabinetry, shelving, displays, architectural features, coving and task lighting where a long run of 4000K cool white illumination is required.

Please Note: This LED strip is IP20 rated and intended for suitable dry indoor locations. A compatible 48V driver and any required Orion control or connection accessories should be selected separately.

Data Sheet:

Click Here for Data Sheet
