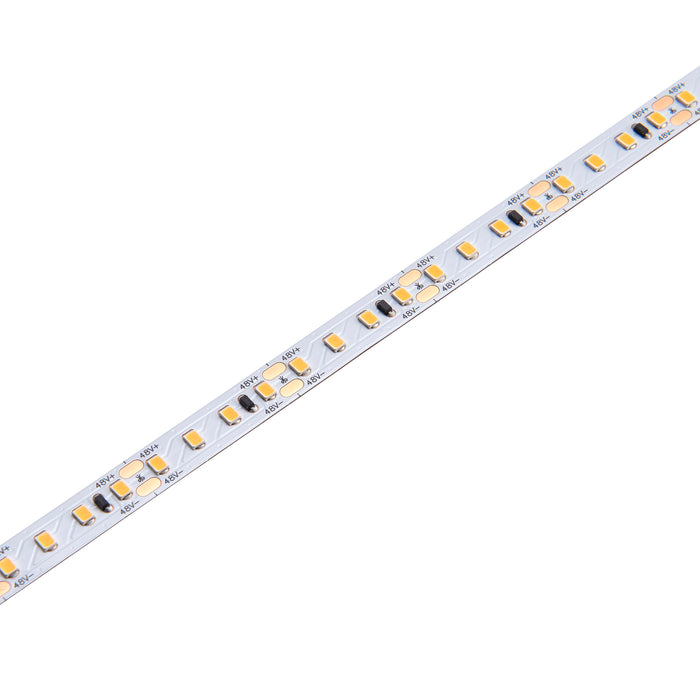

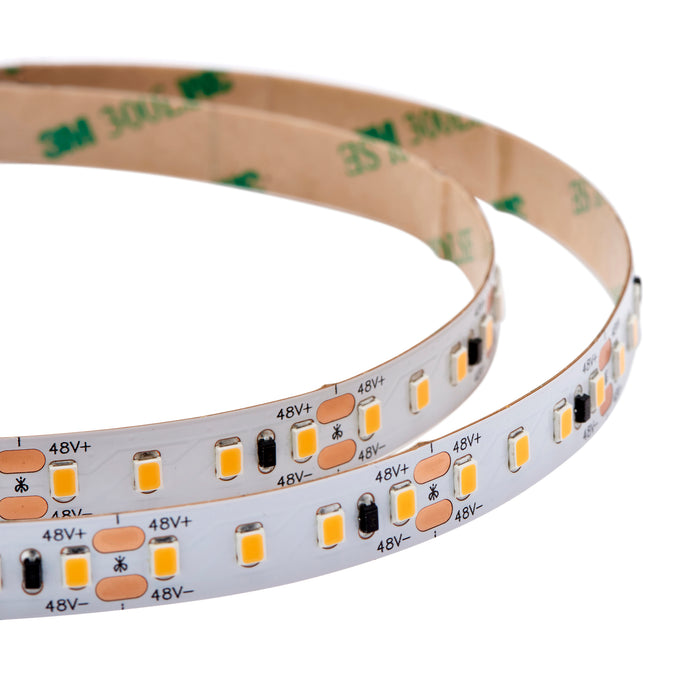

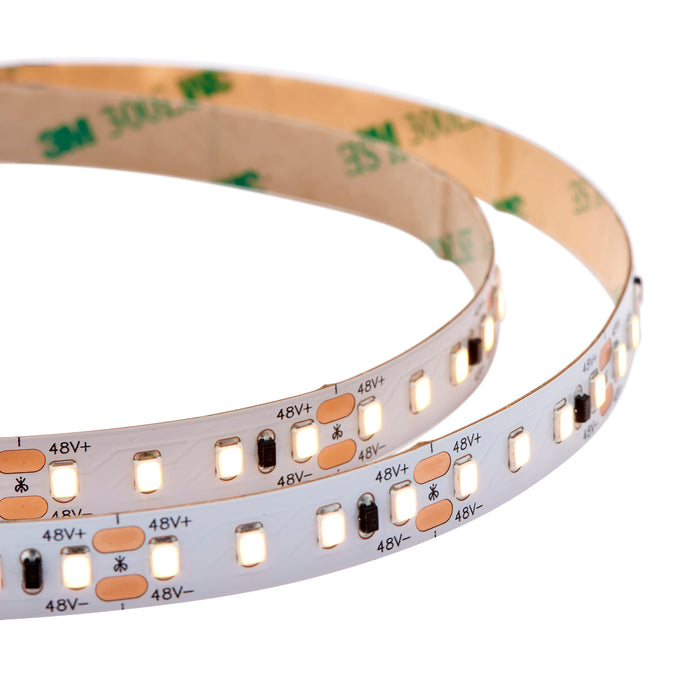

Saxby 118822 Orion20 48V 7.2W/m IP20 LED Strip 3000K - 35m

The Saxby 118822 Orion20 48V LED Strip is a professional flexible lighting solution designed to provide consistent 3000K warm white illumination across long indoor installations. Supplied as a generous 35-metre LED tape, it is ideal for creating continuous runs of accent, task and decorative lighting in residential and commercial environments.

Operating at 48V and consuming just 7.2W per metre, the Orion20 provides an efficient lighting solution with a total output of up to 27,300 lumens across the complete 35m length. Its SMD 2835 LED technology delivers an efficacy of up to 108lm/W.

The flexible tape can be cut and joined to suit different installation layouts, while its ability to support a maximum 35m continuous run makes it particularly useful for larger projects where long lengths of uninterrupted LED lighting are required.

Key Features

• 35m flexible LED strip for long-run lighting installations
• 48V operation supports a maximum continuous run of 35m
• 7.2W per metre power consumption
• 3000K warm white colour temperature
• Up to 27,300 lumens total light output
• High efficiency of up to 108lm/W
• SMD 2835 LED technology
• Flexible tape can be cut and joined to suit the installation
• IP20 rated for suitable indoor environments
• Slim 10mm width for discreet integration into lighting projects
• Ideal for accent, task and decorative lighting

Specification

• Brand: Saxby
• Product Code: 118822
• Range: Orion20
• Product Type: Flexible LED Strip Tape
• Voltage: 48V
• Power Consumption: 7.2W/m
• Total Wattage: 252W
• LED Type: SMD 2835
• Colour Temperature: 3000K Warm White
• Total Light Output: 27,300 Lumens
• Luminous Efficacy: 108lm/W
• IP Rating: IP20
• Maximum Run Length: 35m
• Length: 35,000mm (35m)
• Width: 10mm
• Height: 1.4mm
• Material: Polymer Film
• Colour: White
• Electrical Class: Class III

Applications

Ideal for indoor residential, retail, hospitality and commercial lighting projects, including architectural features, display lighting, shelving, cabinetry, coving and other applications requiring a long, continuous run of warm white LED illumination.

Please Note: This LED strip is IP20 rated and intended for suitable dry indoor environments. A compatible 48V driver and any required control or connection accessories should be selected separately.

Data Sheet:

Click Here for Data Sheet
