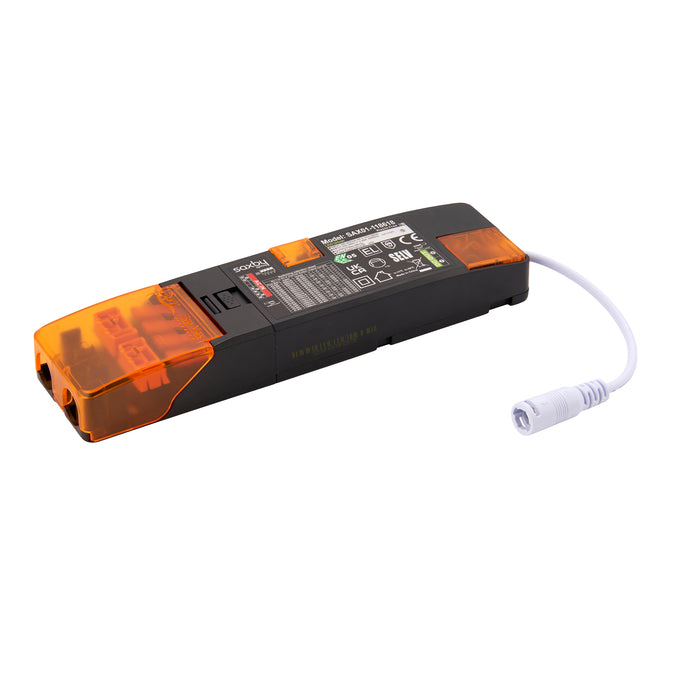

Saxby 118618 23.5W–47W Wattage Selectable Constant Current LED Driver

IN STOCK ITEM: Dispatch in 2–3 Days

The Saxby 118618 Constant Current LED Driver is a high-performance power supply designed for compatible constant current LED lighting systems. Offering an impressive 16 selectable output settings, the driver can be configured from 23.5W to 47W with output currents ranging from 550mA to 1300mA, providing exceptional flexibility for a wide variety of LED luminaires.

Manufactured from durable polycarbonate, this compact Class II LED driver delivers reliable performance and straightforward installation. Its wide range of selectable power settings makes it an ideal choice for residential, commercial and retail lighting projects requiring a versatile constant current LED driver.

Key Features

• Constant current LED driver

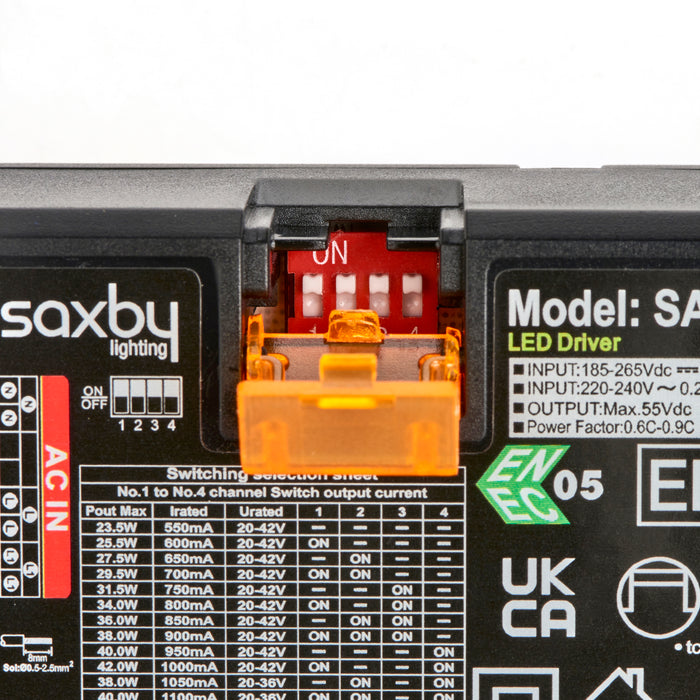

• 16 selectable output settings
• Adjustable output power from 23.5W to 47W
• Selectable output current from 550mA to 1300mA
• Suitable for compatible constant current LED fittings
• Reliable and efficient operation
• Compact polycarbonate housing
• Easy to install
• Class II electrical protection
• LED driver supplied complete

Technical Specification

• Manufacturer: Saxby
• Part Number: 118618
• Product Type: Constant Current LED Driver
• Output Power: Selectable from 23.5W to 47W
• Output Current: 550mA–1300mA (Selectable)
• Output Voltage: 20–42V (23.5W–42W)
• Output Voltage (Higher Outputs): 20–36V (38W–47W)
• Electrical Class: Class II
• Material: Polycarbonate
• Finish: Black
• Dimensions: 189.5mm (L) × 49mm (W) × 26mm (H)
• LED Driver: Included

Applications

Suitable for powering compatible constant current LED luminaires in residential, retail, hospitality and commercial lighting installations where flexible output selection is required.

Data Sheet:

Download the Saxby 118618 Data Sheet
