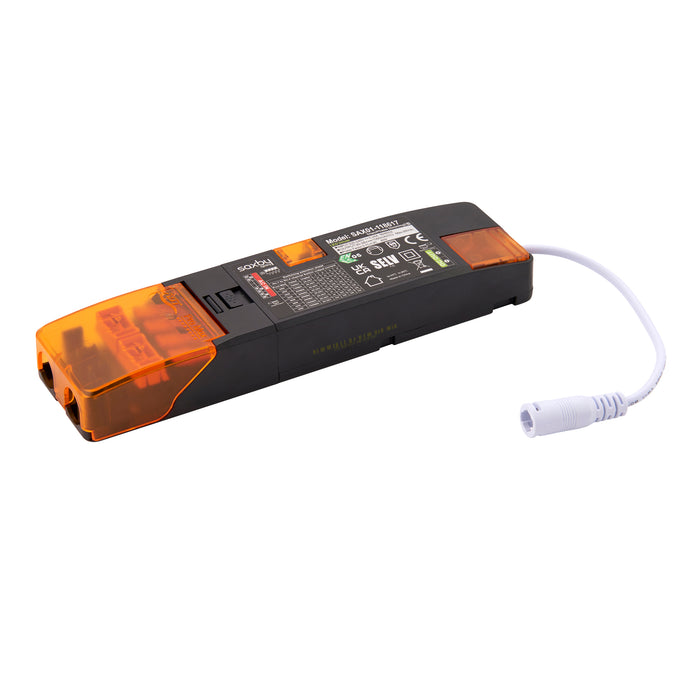

Saxby 118617 28W–40W Wattage Selectable Constant Current Dimmable LED Driver

IN STOCK ITEM: Dispatch in 2–3 Days

The Saxby 118617 Constant Current LED Driver is a versatile, professional-grade power supply designed for compatible LED lighting systems. Offering eight selectable output settings from 28W to 40W with adjustable output current between 700mA and 1050mA, this driver provides the flexibility required for a wide range of commercial and residential LED installations.

Featuring dimmable functionality, the driver enables smooth lighting control while maintaining reliable performance and energy efficiency. Constructed from durable polycarbonate with a compact housing, it is easy to install and suitable for a variety of lighting applications.

Key Features

• Constant current dimmable LED driver
• Selectable output from 28W to 40W
• Adjustable output current from 700mA to 1050mA

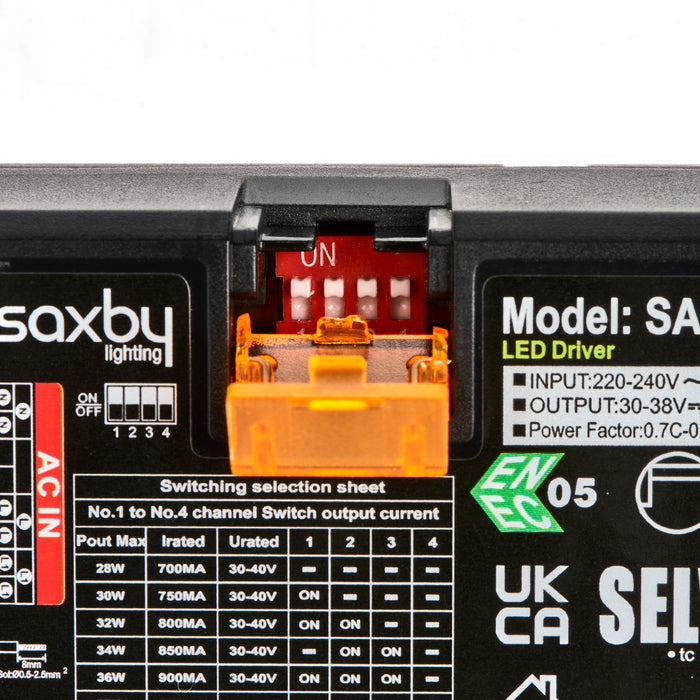

• Eight selectable output settings
• Dimmable for flexible lighting control
• Suitable for compatible constant current LED fittings
• Durable polycarbonate housing
• Compact design for straightforward installation
• Class II electrical protection
• Supplied complete with LED driver

Technical Specification

• Manufacturer: Saxby
• Part Number: 118617
• Product Type: Constant Current LED Driver
• Output Power: Selectable 28W–40W
• Output Current: 700mA–1050mA (Selectable)
• Output Voltage: 30–40V (28W–40W)
• 40W Output Voltage: 30–38V
• Dimmable: Yes
• Electrical Class: Class II
• Material: Polycarbonate
• Finish: Black
• Dimensions: 186.5mm (L) × 49mm (W) × 26mm (H)
• LED Driver: Included

Applications

Ideal for powering compatible constant current LED luminaires in residential, retail, office and commercial lighting installations where adjustable output and dimming functionality are required.

Data Sheet:

Download the Saxby 118617 Data Sheet
