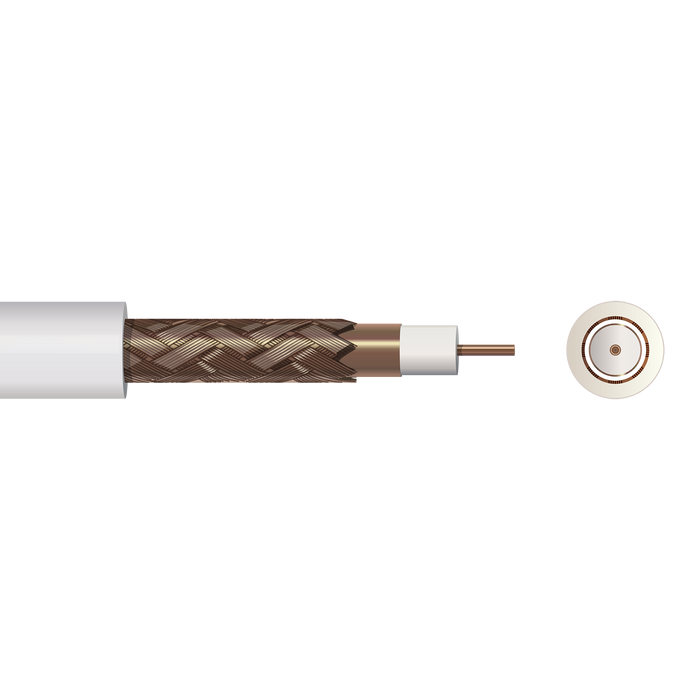

Satellite CT100 PVC White Coaxial Cable - 100m Drum

The Satellite CT100 PVC White Coaxial Cable is a professional-quality 75 Ohm coaxial cable designed for indoor TV signal distribution. Ideal for CATV networks, SMATV systems, satellite installations, terrestrial aerials and cable television applications, it provides low signal attenuation and outstanding screening performance for dependable signal transmission. Supplied on a practical 100-metre drum, this cable is suitable for both residential and commercial installations.

Key Features

• 100m drum of CT100 professional coaxial cable
• 75 Ohm impedance for reliable TV and satellite signal transmission
• 1mm solid copper conductor for excellent electrical performance
• Copper wire braid with non-bonded copper foil/Mylar screen for superior shielding
• Foam polyethylene (PE) dielectric insulation helps minimise signal loss
• Durable white PVC outer sheath for indoor installations
• Suitable for CATV, SMATV, satellite, terrestrial and cable TV systems
• Supplied on a robust drum for easy storage and installation
• Manufactured to CE, UKCA, ISO 9001 and EN 13501-6:2014 standards

Technical Specifications

• Product Code: CT100
• Cable Type: CT100 Coaxial Cable
• Length: 100m
• Impedance: 75 Ohm
• Conductor: 1mm Solid Copper
• Conductor Class: Class 5
• Number of Strands: 1
• Insulation Material: Foam Polyethylene (PE)
• Screen: Non-bonded Copper Foil/Mylar
• Braiding Material: Copper Wire
• Outer Sheath Material: PVC
• Outer Sheath Colour: White
• Overall Cable Diameter: 6.6mm
• Insulation Thickness: 1.57mm
• Outer Sheath Thickness: 0.63mm
• Rated Voltage: 30V
• Conductor DC Resistance at 20°C: ≤26Ω/km
• Operating Temperature: -20°C to +80°C
• Minimum Bending Radius: 15 × Cable Diameter
• Low Smoke Zero Halogen (LSZH): No
• Armoured: No
• Indoor Use: Yes
• Net Weight: 54.9kg/km
• Packaging: Drum (Tin Core with Cardboard Flanges)
• Standards: EN 13501-6:2014
• Certifications: CE, UKCA, ISO 9001

Applications

• Professional CATV installations
• Satellite television systems
• SMATV distribution networks
• Terrestrial TV aerial systems
• Cable television installations
• Indoor residential and commercial TV signal distribution
