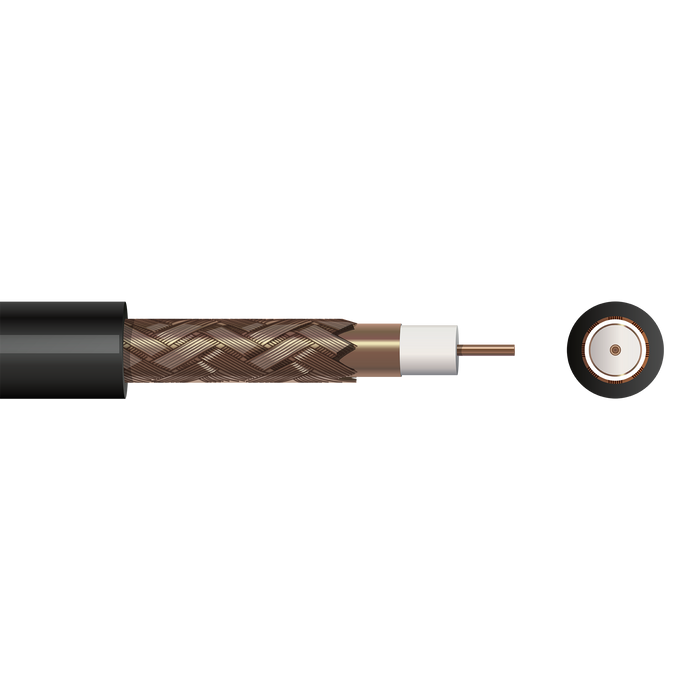

Satellite CT100 PVC Black Coaxial Cable - 250m Drum

The Satellite CT100 PVC Black Coaxial Cable is a professional-grade 75 Ohm coaxial cable designed for indoor TV signal distribution. Ideal for CATV networks, SMATV systems, satellite installations, terrestrial aerials and cable television applications, it delivers low signal attenuation and exceptional screening for reliable signal quality. Supplied on a 250-metre drum, this cable is ideal for larger residential, commercial and professional installations.

Key Features

• 250m drum of professional CT100 coaxial cable
• 75 Ohm impedance for TV, satellite and CATV applications
• 1mm solid copper conductor for excellent signal transmission
• Copper wire braid with non-bonded copper foil/Mylar screen for superior shielding
• Foam polyethylene (PE) dielectric insulation helps minimise signal attenuation
• Durable black PVC outer sheath for indoor installations
• Suitable for CATV, SMATV, satellite, terrestrial and cable TV systems
• Supplied on a robust drum for convenient installation and storage
• Manufactured to CE, UKCA, ISO 9001 and EN 13501-6:2014 standards

Technical Specifications

• Product Code: CT100
• Cable Type: CT100 Coaxial Cable
• Length: 250m
• Impedance: 75 Ohm
• Conductor: 1mm Solid Copper
• Conductor Class: Class 5
• Number of Strands: 1
• Insulation Material: Foam Polyethylene (PE)
• Screen: Non-bonded Copper Foil/Mylar
• Braiding Material: Copper Wire
• Outer Sheath Material: PVC
• Outer Sheath Colour: Black
• Overall Cable Diameter: 6.6mm
• Insulation Thickness: 1.57mm
• Outer Sheath Thickness: 0.63mm
• Rated Voltage: 30V
• Conductor DC Resistance at 20°C: ≤26Ω/km
• Operating Temperature: -20°C to +80°C
• Minimum Bending Radius: 15 × Cable Diameter
• Low Smoke Zero Halogen (LSZH): No
• Armoured: No
• Indoor Use: Yes
• Net Weight: 51kg/km
• Packaging: Drum (Tin Core with Cardboard Flanges)
• Standards: EN 13501-6:2014
• Certifications: CE, UKCA, ISO 9001

Applications

• Professional CATV installations
• Satellite television systems
• SMATV distribution networks
• Terrestrial TV aerial systems
• Cable television installations
• Indoor residential and commercial TV signal distribution
